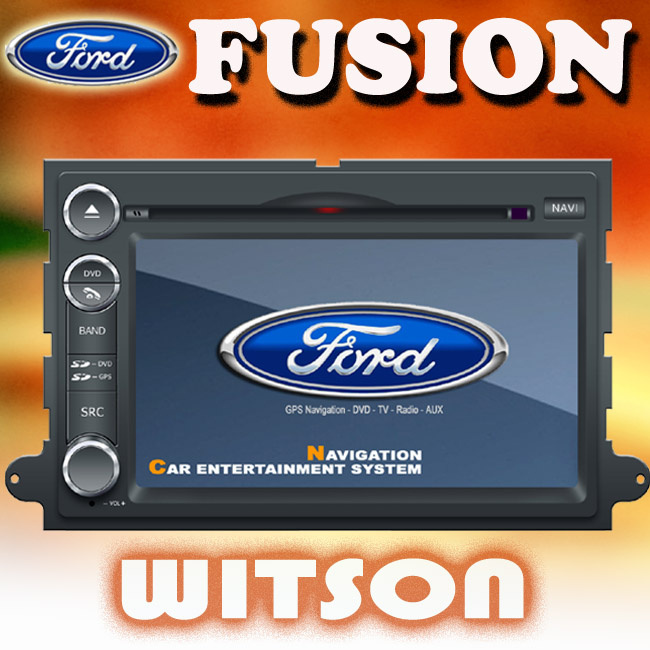

Prod Model: |
W2-D9675F |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Special features:
*USB PORT AVAILABLE TO SUPPORT 3G MODEM TO CONNECT INTERNET
1. V-6 disc changer memory(6 disc music can be memory in the unit while you listening the music)
2. Picture in Picture fucntion
3. All keys with Blue/Red/Purple three color adjustable, match your original car perfectly.
4. Three Zone function, listening to Radio/watching GPS image in the front and watching DVD/USB/SD/TV from the back Monitor synchronously
For Ford FUSION(2005-2009)/EXPLORER(2006-2010)/EDGE(2006-2010)/EXPEDITION(2007-2011)/MUSTANG(2007-2010)/ESCAPE
* 7" digital 800*480 screen resolution
* Built-in GPS system
* Dual zone function (Listen Radio/CD while watching GPS image)
* Built-in Bluetooth
* RDS receiver
* USB port
* SD card slot for GPS (Two SD card slots, one for GPS, one for Multimedia)
* iPod control
* Built-in TV tuner
* Built-in DVB-T tuner (optional)
* Steering wheel control function
The following maps of countries are available now:
EU MAP: Austria, Switzerland, Liechtenstein, Italy, Belgium, Netherlands, Luxemburg, France, Monaco, Spain, Germany, Greece, Vatican, San Marino, Denmark, Finland, Norway, Sweden, Portugal, Gibraltar, Channel Island, England, Ireland, Lisle of Man, Northern Ireland, Scotland
GULF AREA: Saudi Arabia, Oman, Bahrain, United Arad Emirate, Qatar, Kuwait
OTHER MAP: America, Canada, Australia, Turkey, Russia, Brazil, Argentina, South Africa, Chile are available
Menu Language& Navigation Voice: Arabic, English, Dutch, French, German, Italian, Portuguese, Spanish, Russia
GPS |
Operating System |
Windows CE 6.0 |
GPS Resolution Output |
800x480 |
Media Player |
Yes |
Card Supported |
Micro SD Card |
MAX Memory Supported |
16GB |
Map Supported |
PolNav, Igo, Route66, Tom-Tom, Support 3D Maps |
GPS Baud Rate=9600, Com Port=2 |
Display Screen |
Screen Type |
Digital TFT touchscreen |
Resolution |
800*480 |
Screen Dimension |
7 inch 16:9 |
Language |
Main Interface Language |
English Francais Deutsch Italian Espanol |
DVD Control Language |
English,Spainish,Turkish,Portuguese,Russia,etc. |
GPS Console Language |
English, Deutch, Franch, Portuguese, Italian, Espanol,Nederlands,etc. |
DVD Playback |
Disk Format Supported |
DVD/VCD/CD/MP3/MPEG4/CD-R/WMA/JPEG |
Media |
DVD/DVD-R/DVD+R/DVD-RW/DVD+RW/CD/CD-R/CD-RW/MP3/MP4(DIVX)/VCD/SVCD |
Bluetooth |
A2DP |
Yes |
Microphone |
Built-in |
Received Call |
Yes |
Dialled Call |
Yes |
Missed Call |
Yes |
Download Contacts |
No |
Store Contacts |
No |
TV Tuner |
Built-in Analog TV |
Yes |
Analog TV System |
NTSC, PAL-B/G, PAL-I, PAL-D/K,PAL-M,PAL-N ,SECAM-DK |
Built-in DVB-T Tuner |
Yes (Optional) |
DVB-T Format |
MPEG-2,Support 120km/h, 1 x Active Antenna Included |
Built-in ISDB Tuner |
No |
Radio |
AM Frequency Range |
522-1620 (Europe/China), 530-1710 (America) |
FM Tuning Range |
87.5-108 (Europe/China), 87.5-107.9 (America) |
RDS |
Yes |
iPod Control |
Touchscreen Control |
Can Control Music Through Touchscreen |
Show Information Of Music |
No |
Play Video |
No |
Storage Media |
SD Card Slot For Music/Movie |
Micro SD Card Slot |
MAX Memory Supported 32GB |
USB Port For Music/Movie |
Normal USB Port |
MAX Memory Supported 32GB |
Position: Front of the Unit |
Portable HD |
No |
Video & Audio |
Video Input |
1-Channel RCA Input |
Video Output |
1-Channel RCA Output |
Audio Input |
2-Channel RCA Input |
Audio Output |
4-Channel RCA Output |
Reverse Camera Input |
Yes |
3 Zone Out |
Yes |
Other Functions |
2-Zone |
Yes (Listen Radio/CD While Watching GPS Image) |
3-Zone |
Yes (Listening To Radio/Watching GPS Image At The Front And Watching DVD/SD/USB/TV
From The Sub-monitor Simultaneously) |
Pictrue In Pictrue |
Yes |
Steering Wheel Control Function |
Yes |
CANBUS |
Yes |
MFD |
No |
TMC |
No |
V-6 Disc Changer Memory |
Yes |
CDC |
No |
Parking Assistance |
No |
Game |
No |
Button Back Light |
Red/Blue/Purple Illumination |
Accessories |
User Manual*1,Power Cable*1,Remote Control*1,iPod Control Wire*1, RCA Cable*1,GPS Antenna*1,USB Cable*1,Radio Antenna Adpter |
