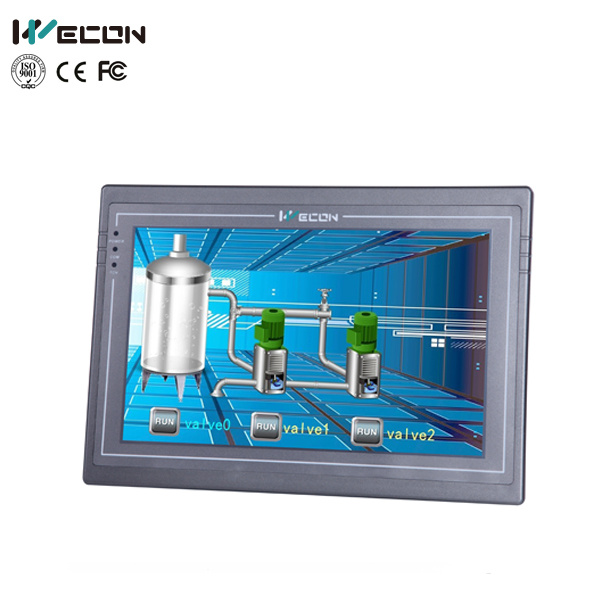

Wecon 10.2 Inch Touch Screen Embedded HMI with IP65

Wecon 10.2 Inch Touch Screen Embedded HMI with IP65
Price: US $ 371-408/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: PI8102
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
CPU: Cortex A8 720MHz
Platform: Linux Qt
Storage: 512m Ddriii/4G
Resolution: 800*480
Colors: 260, 000
Max.Brightness: 300nit
Certificates: CE & FCC
Ethernet: Supported or WiFi
Programming: Pi Studio(Free)
Protection: IP65(Front Panel)
Screen Size: 11-15''
Touch Screen: Touch Screen
Installation: Wall-Mounted
Application: Industrial
CPU Type: Cortex A8

Product Description

FEATURED FUNCTIONS

Cross-platform support

Provide easy web function to access HMI from any borwser.



Wireless Access

It is possible to download HMI program over wireless connection.



Multiple Serial Ports

It could support up to 5 serial port connection.



IP Camera

Connecting with IP Camera over It could support up to 5 serial port connection, easily view anything from touch panel.



Peripheral Equipments

Various Peripheral equipments support, to make the it more powerful.



SPECCIFICATIONS


Item

PI8070

PI8102

PI8104

PI8150

OS

Linux QT

CPU

Cortex A8  720MHz

Touch Screen

High precision four-wire resistive

Display

Screen Size

7 Inch

10.2 Inch

10.4 Inch

15 Inch

Resolution

800*480

800*480

800*600

1024*768

Brightness

300 cd/m2

300 cd/m2

300 cd/m2

400 cd/m2

Contract

500:1

Backlight

LED

Backlight Life

50,000 Hours

Colors

16,000k (24bit)

260k (18bit)

260k (18bit)

260k (18bit)

Storage

Flash

4GB EMMC

RAM

DDRIII 512MB

SD Card

Compatible

Ports

USB port

USB Host: USB 2.0 x 1;USB Client: USB 2.0 x 1

Serial Port

COM1: RS232, RS422/RS485

COM2: RS232, RS485

COM3: RS485

Ethernet

PI 8070N

PI 8102N

PI 8104N

PI 8150N

CAN

PI 8070C

PI 8102C

PI 8104C

PI 8150C

Power

Power Supply

24V DC(12~28V DC)

Power

<10W

<10W

<10W

<20W

Power Isolation

Built-in Power Isolation

Withstand Voltage

500V AC (<1 minute)

Insulation Resistance

> 20MΩ 500VDC

Seismic resistance

10 ~ 25 Hz (X, Y, Z direction 2G/30 minute)

Dimension

Shell

ABS

Dimension (mm)

201.0*146.6*36.5

272.0*190.5*41.4

299.0*222.0*54.0

420.0*310.0*62.0

Mounting size (mm)

192.0W*138.0H

260.0W*179.0H

288.0W*212.0H

381.0W*281.0H

Weight (KG)

0.6

1.2

1.9

5.0

Environment

Protection

IP65 (Front panel)

IP65 (Front panel)

IP65 (Front panel)

IP51 (Front panel)

Temperature

Storage: -30ºC~70ºC; Working: -10ºC~60ºC

Humidity

10 ~ 90%RH

CE Certification

EN61000-6-2:2005, EN61000-6- 4:2007 Standard

FCC Certification

FCC Class A

Programming Software

PI Studio









PROGRAMMING SOFTWARE
Wecon PIStudioU- Human Machine Interface (HMI) Programming Software
It has been designed as a programming tool for the Wecon HMI. PIStudioU allows displaying or editing multi language for HMI screen. And it is totally free for all its user.


Brand

Supported Model / Protocol

Wecon

LX Series PLC / User-Defined Protocol

Allen-Bradley

MicroLogix 1000/1200/1400/1500  SLC 5/03 5/04 5/05 PLC-5

DF1 CompactLogix 1769 series

ABB

PM 571/581/591

Yudian

BoTa AIBus Protocol

CANBus

Open CAN / CAN J1939

Crouzet

M3 FBD

Danfoss

FC Series / GLP-NV

Delta

DVP EH/ES/SS/EX/EH2/SV/SA/SC/SX Series

Emerson

DKG2 / EC20 series 984 RTU Slave Modbus

Fuji

SPB NB

FB

FB RS484 Protocol

Fatek

FBs-xx-MA / MC / MN FBe-xx-MC / MA FBn-xx-MCT

Facon

FB Series RS232 (RS232-RTS) / RS485 Modbus

IDEC

FC4A-C10R2

ICPDCS

I-7000 Series

Koyo

K / Direct Series

Keyence

KV Series

LG

K120S / K300S / KCNet / XGB / LG-Bus ASCII

Omron

HostLink / CPM1A / CQM1H / C / CP1E / CP1H / CS1 / CV / CJ1M / CS1H / E5 Z

Panasonic

FP NEWTOCOL

Mitsubishi

FX1N / FX2N / FX3U / Q02H / QJ71 / MELSEC Q / L02 /

Shinko

CxT series / DCL / PC-900

Schneider

Electric Twido Modbus / Modicon Modbus RTU

IMD H00

IMD H00 ModBus RTU Slave

TECO

TP01 / TP02 / TP03 Series

Hollysys

LK / LM Modbus Tcp

Yaskawa

NS600 Modbus / Sepvopack Sgdm Modbus / Memobus / MP Series

Yokogawa

FA-M3 Series Modbus

Regin

Regin PLC

LG

K120S / K300S

Inovance

Whole Series

Modbus RTU

Slave / Master

Modbus ASCII

Slave / Master

Modbus TCP / IP

Slave / Master

Vigor

Vigor PLC


APPLICATIONS

WECON products are widely used in machinery and equipment, metallurgy, chemical, oil and other industries. They are favored by many foreign customers.



FACTORY

Chinese high technology company, headquartered in Fuzhou, Fujian. That independently develops, manufactures, supports and sells human machine interface (HMI), programmable logic controller(PLC).







WARRANTY & SHIPMENT

All of Wecon products are covered 18 month warranty.



Normally we ship out the goods within 5 days after payment received.




WECON Technology Co., Ltd. (commonly referred to as WECON) is a Chinese high technology company, headquartered in Fuzhou, Fujian. That independently develops, manufactures, supports and sells human machine interface, programmable logic controller. WECON products are widely used in machinery and equipment, metallurgy, chemical, oil and other industries. They are favored by many foreign customers.

WECON has attained significant development in human-machine interface products, its independent research and development of programmable controller (PLC) products began in 2010 officially came into the market in June 2012. The emergence of WECON LX series PLC means that the company has again mastered a core technology in the field of automation, indicating that the product lines of WECON began to expand horizontally.

With complete and regular production procurement channels, a rigorous and scientific quality management system, a simple and efficient mechanism for innovative research and development, we provide services to users wholeheartedly, as well as automation technologies and products with better quality, easier application and more reliable technologies.

Since its establishment, the company has gathered a large number of young and vibrant high-tech talents obtained a lot of core technologies in automation industry and product development, accumulated valuable experience in serving users, and formed many effective scientific management systems. All of these are the keys to our success.
