| Prod Model: |
10", 20", 30", 40" |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cartridge Installation: |
Vertical Lifting |
| Filter Bag Environment: |
Temperature |
| Filter Bag Filter: |
The Filter Type |
| Filter Bag Sectional Shape: |
Round Bag |
| Usage: |
Liquid Filter |
| Material: |
PP |
| Cartridge Filter: |
Polypropylene |
| Size: |
10", 20"30"40" |
| Od: |
2.5" |
| Flow Rate: |
0.3t/H 10" |
| Medium Material: |
Polypropylene |
| Type: |
Polypropylene |
Product Description

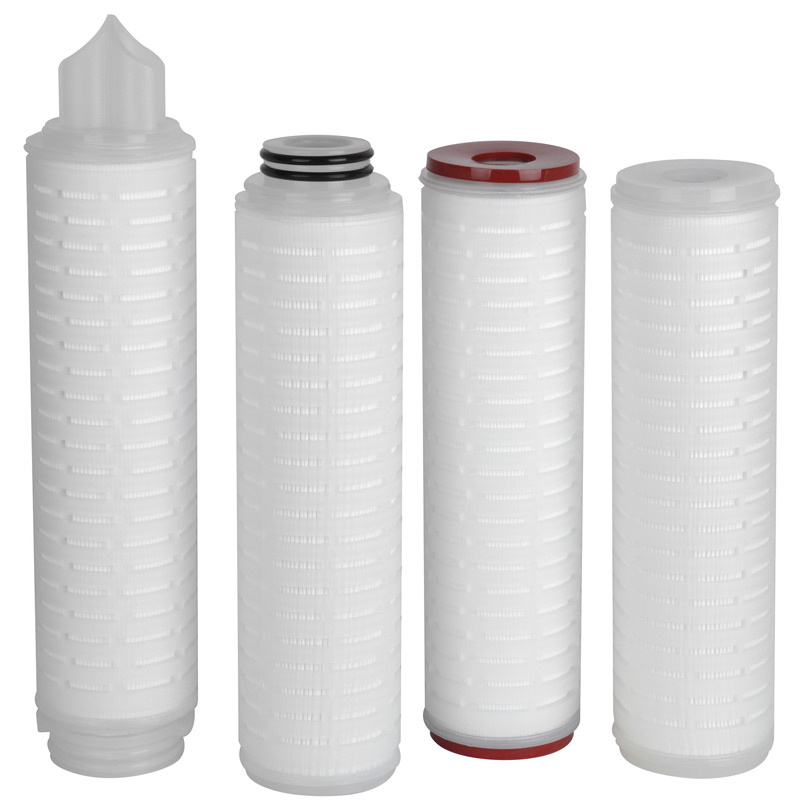

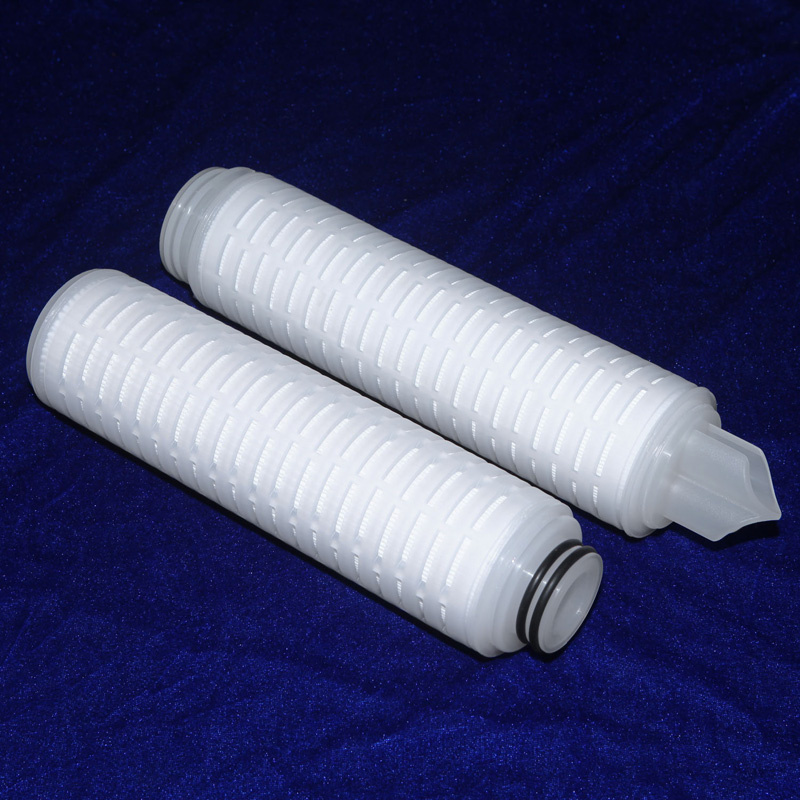

PP pleated Cartridge Filter
Description:
PP pleated Cartridge Filter is designed for high efficiency with an extended surface and long service life. The 100% polypropylene construction provides excellent thermal and chemical compatibility. Heat-bonded, continuous fiber pleated polypropylene media provides exceptional and outstanding performance.
Specification:
Pore size: 0.2um, 0.45um, 1.0um, 3.0um, 5.0um, 10um, 20um
Dimension:
OD: 68mm
Length: 10", 20", 30", 40", ( Inch)
Cartridge Adapter:
226, 222, Double Open End,
Core: 100% Polypropylene
Media: 100% Polypropylene
End Caps: 100% Polypropylene
O-Ring: Silicon, EPDM, Viton
Customized filters are also available and handled as special order.
Application:
Electrical plating
DI & RO pretreatment
Liquid clarification
Pre-filter for ultra pure water
Mineral water
Cosmetics
Fine chemicals
If you are intereated in our PP pleated filter cartridge, please don't hesitate to contact me.
|
ITEM |
PRECISION |
ADAPTOR |
O-RING |
LENGTH |
METERIAL |
|
TPP |
0.2UM |
222 |
SILICON |
10" |
PP |
|
|
0.45UM |
226 |
EPDM |
20" |
PTFE |
|
|
1UM |
DOUBLE |
VITON |
30" |
PESU |
|
|
5UM |
OPEN END |
|
40" |
|
|
|
10UM |
|
|
|
|
|
|
20UM |
|
|
|
|
The majority of the product line is based on depth filtration, micro-filtration, ultra filtration, and RO technologies which include PP melt blown cartridge filter, pleated cartridge filter, thread wounding filter, RO membrane modules. The filter element for micro-filtration enables water treatment, chemical, food & beverage, pharmaceutical and pharmaceutical companies to optimize their manufacturing productivity and quality.
