Wall Split Type Air Conditioner

Wall Split Type Air Conditioner
Price: Negotiable/Set
Trade Terms: FOB,CFR,CIF
Min Order: 50/Set
Pay Type: L/C,T/T
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cooling/Heating: Cooling/Heating
Certification: UL
Type: Window Mounted Air Conditioners
China Energy Efficiency Standard: Level 1
Capacity: 18000-24000 BTU
Power Source: Electrical

Product Description

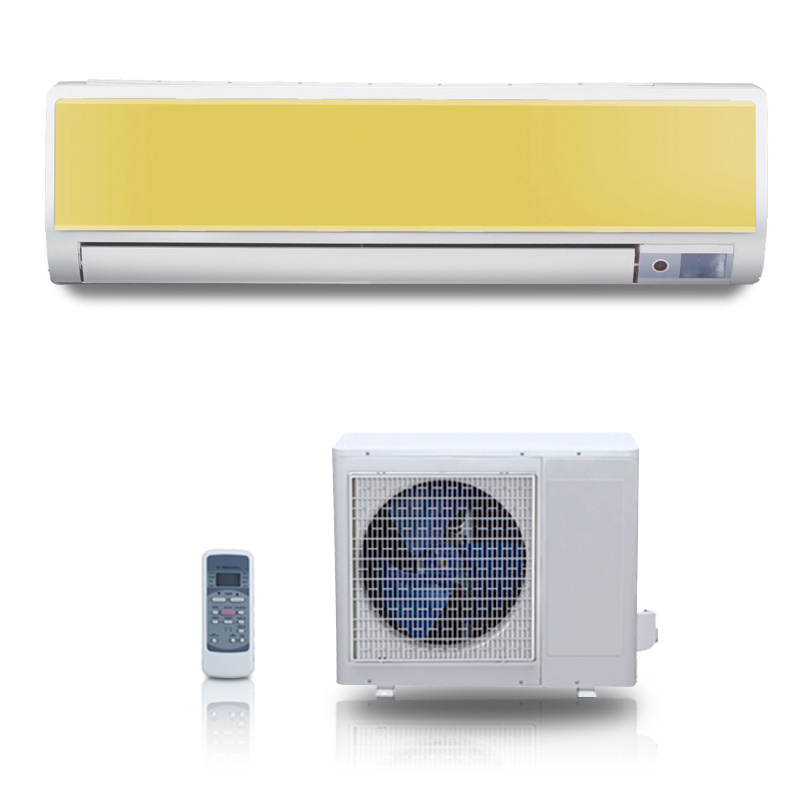

Wall Split Type Air Conditioner

1) BTU: 12, 000
2) Functions: Cooling / heating
3) Power: 220 - 240V / 50Hz
4) Capacity:
A) Cooling: 3, 200W
B) Heating: 3, 500W
5) Rated input:
A) Cooling: 1, 300W
B) Heating: 1, 250W
6) Rated current:
A) Cooling: 5.75A
B) Heating: 5.55A
7) Dehumidifying capacity (L/H): 1.2L/h

8) Air flow volume: 450m3/h
9) Fan speed: 4(3speed + auto)
10) Air flow direction: 5
11) Noise dB (A):
A) Indoor: 40
B) Outdoor: 51
12) Unit dimension (W X H X D):
A) Indoor: 800 X 290 X 196mm
B) Outdoor: 835 X 552 X 310mm
13) Box dimension (W X H X D):
A) Indoor: 855 X 365 X 280mm
B) Outdoor: 895 X 635 X 355mm
15) Suitable area: 13 - 21m2

Features:
1) Streamlined design
2) Anion generator, thorough dust elimination
3) Multi-layer air filter and TI02 cleaning apparatus,
4) Keeps indoor air fresh
5) LED motion display, easy to check its run
6) Air flows in four directions by adjusting air duct louvers
7) Humanized control way, combination with sound signal
8) Electric lock function
9) Big airflow, four way airflow
10) High cooling/ heating rate, energy-saving
11) Low noise fan motor
12) Low temperature start, electricity heating
13) English LCD remote control, compact and handy
14) Two control ways: Manual control and remote control

Outer packing:
Net weight:
Indoor: 10kg, outdoor: 33kg
Gross weight:
Indoor: 11.5kg, outdoor: 36. Kg5

Conveyance:
Qty/20' FCL: 99PCS
Qty/40' FCL: 207PCS
Qty/20' HQ: 240PCS
Model KF-25GW/Ac KFR-25GW/Ac KF-35GW/Ac KFR-35GW/Ac KF-51GW/Bc KFR-51GW/Bc KF-61GW/c KFR-61GW/c KF-70GW/c KFR-70GW/c
Power supply Ph-V-Hz 220-240/50 220-240/50 220-240/50 220-240/50 220-240/50 220-240/50 220-240/50 220-240/50 220-240/50 220-240/50
Cooling Capacity                                           W 2486/2500 2418/2500 3329/3500 3295/3500 5012/5100 4687/5100 6035/6100 5870/6100 6424/7000 6876/7000
Input                       W 968/920 975/950 1275/1200 1242/1220 1860/1895 1939/1895 2134/2090 2057/2190 2485/2900 2595/2400
Rated current       A 4.3/4.1 4.3/4.2 6.0/5.7 5.5/5.4 8.8/8.9 9.1/8.9 9.6/9.4 9.1/9.5 11.7/13.7 11.5/11.0
EER                 w/w. 2.57/2.72 2.482.63 2.60/2.92 2.63/2.87 2.70/2.69 2.42/2.69 2.83/2.92 2.85/2.76 2.59/2.41 2.652.92
Heating Capacity
W
  2643/2800   3708/3700   5428/5610   6301/6600   7016/7300
Input
W
  872/850   1253/1150   1886/2030   2144/2090   2430/2300
Rated current
A
  3.9/3.8   5.5/5.1   8.9/9.5   9.6/9.3   11.3/10.8
COP
w/w
  3.03/3.3   2.96/3.22   2.88/2.77       2.89/3.17
Dehumidifier Kg/h 1.057 1.061 1.304 1.269 1.753 1.741 2.154 2.065 2.477 2.564
  Indoor air flow(Hi/Mi/Lo)         m3/h 418/500 470/500 466/600 498/600 744/680 686/680 900/750 960/750 1078/1070 1134/1050
Indoor noise level (Hi/Mi/Lo) dB(A) 38.1/39 37/39 41.5/42 41.8/42 44.6/45 43.9/45 48.4/47 48.2/47 49.6/52 49.4/50
Dimension (W*H*D) mm 795× 270× 200 795× 270× 200 795× 270× 200 795× 270× 200 940× 270× 180 940× 270× 180 1000× 320× 200 1000× 320× 200 1070× 325× 250 1070× 325× 250
Packing     (W*H*D) mm 860× 350× 260 860× 350× 260 860× 350× 260 860× 350× 260 1005× 335× 260 1005× 335× 260 1085× 380× 285 1085× 380× 285 1280× 400× 305 1280× 400× 305
Net/Gross weight     Kg 10/10.5 10/10.5 10/10.5 10/10.5 12.3/14 12.3/14 15/18 15/18 18/21 18/21
  Outdoor noise level           dB(A) 49/51.1 49.2/49 53.2/52 54/52 53.2/54 53.5/54 58/56 55.8/56 57.9/59 57/59
Dimension(W*H*D) mm 700 × 256 × 500 700 × 256 × 500 795× 255× 510 795× 255× 510 795× 255× 510 795× 255× 510 850× 295× 605 850× 295× 605 875× 315× 680 875× 315× 680
Packing   (W*H*D) mm 825× 320× 535 825× 320× 535 920× 330× 575 920× 330× 575 920× 330× 575 920× 330× 575 995× 410× 680 995× 410× 680 990× 410× 775 990× 410× 775
Net/Gross weight     Kg 30/32 30/32 31/33 31/33 35/37 35/37 44/50 44/50 58/62 58/62
Refrigerant type                     g R22/530 R22/640 R22/710 R22/980 R22/1050 R22/1200 R22/1500 R22/1500 R22/1230 R22/2080
Design pressure                   MPa 2.45/0.7 2.45/0.7 2.45/0.7 2.45/0.7 2.7/0.7 2.7/0.7 2.7/0.7 2.7/0.7 2.7/0.7 2.7/0.7
Qty' per 20' /40' /40' HQ           set 305 305 270 270 250 250 165 165 145 145
Refrigerant piping mm 6.35/9.52   /3500 6.35/9.52   /3500 6.35/12.7   /3500 6.35/12.7   /3500 6.35/12.7   /4000 6.35/12.7   /4000 9.52/16 /5000 9.52/16 /5000 9.52/16 /5000 9.52/16 /5000
