Guangzhou Sanway Professional Audio Equipment Co., Limited >> Video Distribution Amplifier, Power AMPS, Surround Sound Amplifier (FP series)

Video Distribution Amplifier, Power AMPS, Surround Sound Amplifier (FP series)

Video Distribution Amplifier, Power AMPS, Surround Sound Amplifier (FP series)
Price: US $ 200-1000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: T/T,Paypal,Money Gram,Western Union
Prod Model: Sanway FP series
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Power: 200-10000W
Class: Td
Type: Professional Amplifier
Function: Amplifier Combined
Tube Type: Transistor Amplifier
Output Number: 4
Used For: Professional
Usage: KTV System
Sound Channel: 4.1
Voltage: AC110V, AC220V
Conductive Mode: H

Product Description

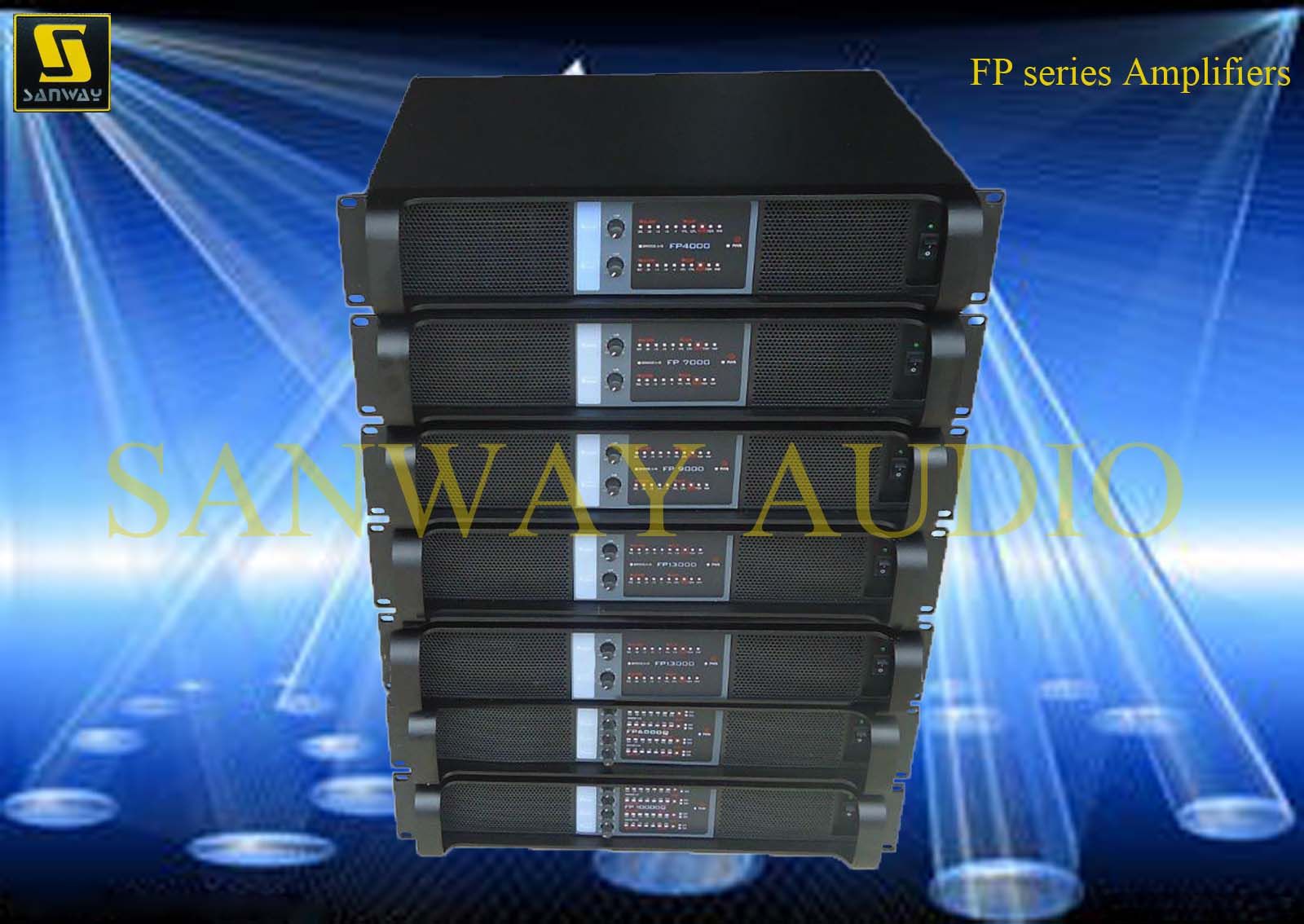

Video Distribution Amplifier, Power AMPS, Surround Sound Amplifier (FP series)

2x625W@4 ohms Power Amplifier
Reliable PRO Amplifier
CE&RoHS Certification Musical Amplifier

KEY FEATURE

1). 2/3U high, heavy duty steel chassis
2). Modular construction for easy servicing
3). Symmetrical layout for even weight distribution
4). High efficiency toroidal power transformer
5). Oversized, high energy, linear power supply
6). 3 steps, Class H Audio topology
7). Stereo, parallel or bridged operation
8). Twin balanced inputs (Neutrik® XLR connectors)
9). Dual Speakon® and Binding posts outputs
10). High quality components used throughout
11). Dual, continuously variable speed fans
12). Efficient DC fans cooling,
13). Active, signal, protect and critical indicators
14). Duraluminium, 8mm thick front-panel
15). Unobtrusive carrying handles
16). Voltage Gain: 35 or 40 dB

Specifications:


FP+ series Switching Power Amplifier Specification ( CE Certification )
ITEMFP7000FP9000FP13000FP14000FP6000QFP10000Q
Output Power20-34kHz, 1W with 1 khz
8ΩStereo Power(RMS)1450WX21600WX22350WX22350WX2625WX41350WX4
4ΩStereo Power(RMS)2800WX23000WX24400WX24400WX21250WX42100WX4
2ΩStereo Power(RMS)3500WX24500WX26500WX27000WX21500WX42500WX4
8ΩBridged Power(RMS)5600W6000W8800W8800W2500WX24200WX2
4ΩBridged Power(RMS)7000W9000W13000W14000W3000WX25000WX2
Frequency Response(+o/-0.3dB,1W/8Ω)20 Hz - 34 kHz
THD 20 Hz - 20 kHz for 1 W<0.1%
Signal-to-Noise Ratio>112 dBA
Channel separation (Crosstalk) at 1 kHz>70 dB
Input Connectors (per channel)3-pin XLR, electronically balanced
Output Connectors (per channel)Binding Posts 2-pole
ClassTD
TourClass Protectionshort circuit, DC voltage, turn-on/off transient, current inrush
Operating voltage130-265 V / 65-135 V selectable
Voltage Gain(dB)23, 26, 29, 32, 35, 38, 41, 44 dB selectable
Input impedance20 Kohms
Level adjustment (per ch.)Front-panel potentiometer, 31 position detented from -inf to 0 dB
Dimensions (W×H×D)483×88×396mm
Packing dimension580×180×560mm
Net weight(kg)13
Gross weight(kg)18

Sanway Professional Audio Equipment Co., Ltd is one of the best PRO Audio suppliers in Guangzhou, China. We are a factory that specializes in research, developing, manufacturing, sales and technical and offer top quality products and service since 1997 and gained very high reputation at home and abroad.

With emphasis on quality and innovation our company has modern assembly line, strict quality control and hard working staff. We put a emphasis on purchasing the high grade raw materials to give you a high performance product. With fully trained workers we ensure that you will only get the finest quality and performance product that comes off of our assembly lines.

Our engineers and technicians have extensive experience in the PRO audio industry. Continuous researching and developing ensure that our products in high standard to give you the competitive advantage to your customers and market.

Application: Our products are suitable for various of PRO audio, entertainment and commercial uses...Such as live event performance, touring concert church, , Band, stadium, gymnasium, theaters, Cinema, concert halls, auditorium, hotel, School, discos, club, wedding, etc.

Main products: Professional Power Amplifiers; Active Speaker Module; Line Array System; Indoor & outdoor Professional Speakers; Digital Speaker Processors; Equalizer etc.

We always keep and follow the principle to do business:

The same product, we win by the quality;

The same quality, we win by the price,

The same price, we win by the service.

We sincerely hope that continuous business relationships can be established and please trust that we are always doing our best to realize good business relationships with our clients. We are constantly seeking new agents and distributors worldwide.

Don't hesitate to contact us if you are interested in any item, or should you have any special requirement, please kindly let us know directly, we will reply you as soon as possible.
