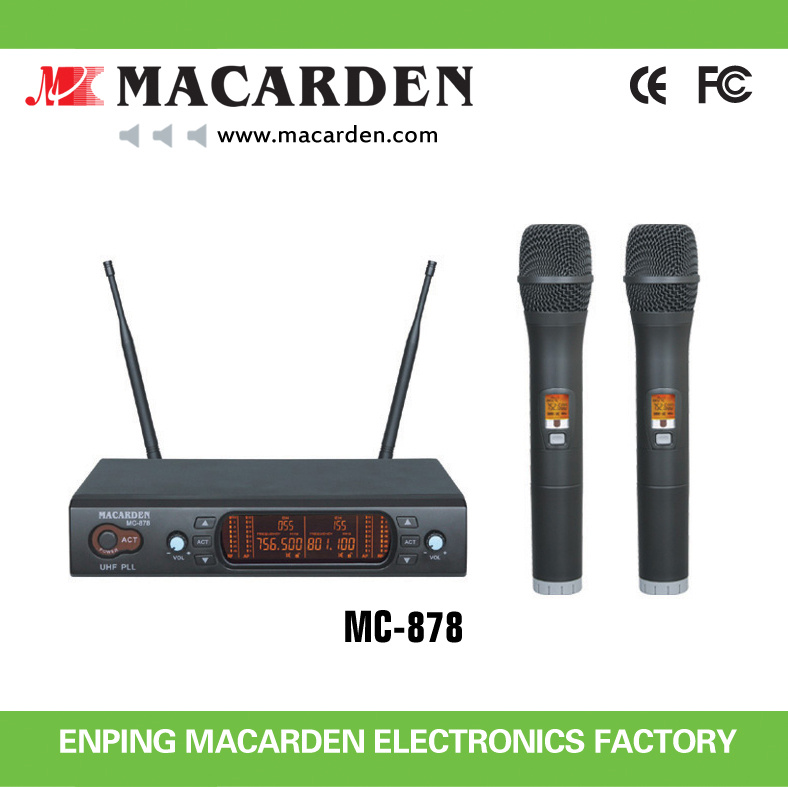

UHF Infrared Two Channel Wireless Microphone System (MC-878)

UHF Infrared Two Channel Wireless Microphone System (MC-878)
Price: Negotiable/Set
Trade Terms: FOB,CFR,CIF
Min Order: 150/Set
Pay Type: T/T,Paypal,Money Gram,Western Union
Prod Model: MC-878
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
RF Frequency Range: 620-950MHz
Oscillation Mode: Pll Synthesized
Working Range: up to 100m
Style: Handheld Microphone
Application: Amplify
Sound Channel: Mono
Signal Transmission: Wireless
Wireless Technology: UHF
Directivity: Uni-direction
Transducer Principle: Electrodynamic Microphone
Output Impedance: 50-1000Ω
Sound Field Force: Pressure Type
Connector(',s): XLR Mini

Product Description

professional UHF & PLL wireless microphone
We specialize in UHF wireless microphones and pro audio systems for almost 10 years. Guaranteed with the reliable quality, you will be delighted to find that our microphones and pro audio products are also with competitive prices. Welcome to enquiry and test our wireless microphones and professional audio systems.


The latest evolution in wireless microphone technology is now available in the all
new MACARDEN UHF-878 FREE STYLE UHF DUAL WIRELESS MICROPHONE SYSTEM, which features 200 Selectable Channels in the Ultra High Frequency range between 620-950MHz.

This allows for a much wider usage range than set frequency microphones and is ideal for the Karaoke Professional working with multiple systems. The wide range of selectable frequencies virtually eliminates unwanted interference and accompanying sonic distortion.

The UHF-878 incorporates new patented PLL synthesized oscillator technology for stability, dynamic range and frequency response as well as Ultra High Speed MCU signal analyzer to control noise and shock for perfect tone. Combined with MACARDEN famous Crystal Clear Sound technology and traditional professional product durability, the UHF-878 emerges as THE unqualified Best Choice for a UHF Dual Wireless Microphone System.






MC-878
PLL & UHF DUAL CHANNEL WIRELESS MICROPHONE SYSTEM

KEY FEATURES

Adopt the PLL Synthesized control technic, preset 200 non-interfered channels.
Transfer datas to transmitter by infrared.
Digital LCD information display.
Using high gain antenna, the space availability is more than 100 meters at the clearing.
EIA standard 1/2U dual channel rack-mountable receiver with metal classics
.


TECHNIQUE SPECIFICATION



MC-878 RECEIVER
RF Frequency Range: 620-950MHz
Channels by Automatic Channels Targeting: Multi Channels 200
Oscillation Mode: PLL Synthesized
Receiving Sensitivity: -90dBm
Signal/Noise Ratio:>103dB(A)
Max Deviation: ±48KHz
T.H.D: <0.5%@1KHz
Audio Output Level: 3.5dBv(1.5V)@1KHz
DC Power Supply: 1A 12~15V DC
Working Range: Up to 100m
Dimensions: 21X19.6X4.5cm


MC-878 HANDHELD TRANSMITTER
RF Frequency Range: 620-950MHz
Frequency Regulation:IR Sync
RF Output Power:10mW/30mW/country dependent
Max deviation:±68KHz
Spurious Emissions:<-55dBc
Sound Cartridge:Dynamic Microphone
Battery Requirement:2X1.5V AA alkaline
Dimensions:26.5X5 cm


MC-878 BODYPACK TRANSMITTER
RF Frequency Range: 620-950MHz
Frequency Regulation:IR Sync
RF Output Power:10mW/30mW/country dependent
Max Deviation:±68KHz
Spurious Emissions:<-55dBc
Sound Cartridge:Condenser Microphone
Battery Requirement:2X1.5V AA alkaline
Dimensions: 11X6.7 cm
