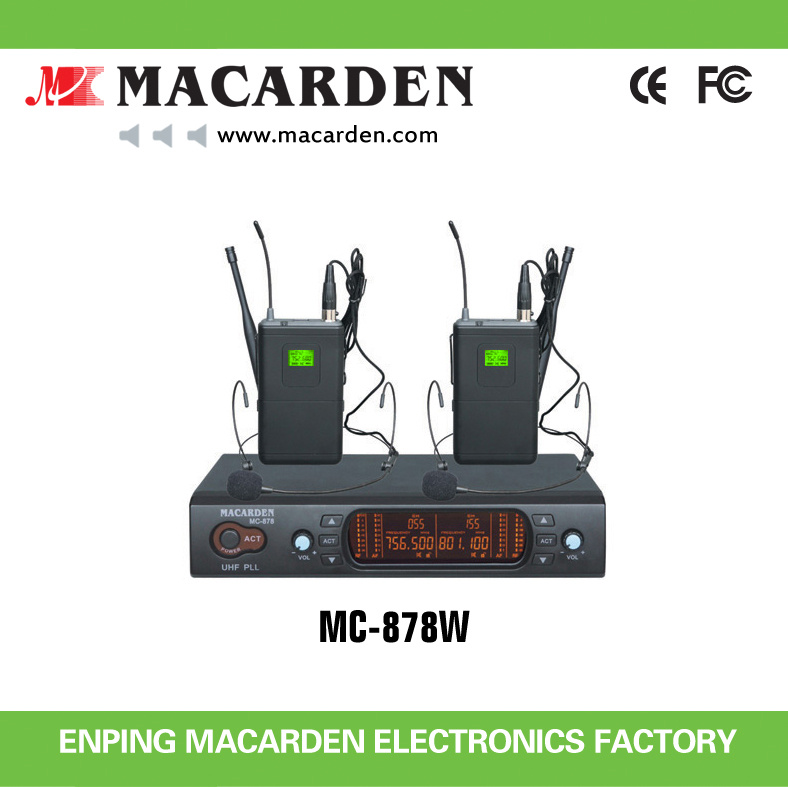

UHF Dual Channel Wireless Headset Microphone (MC-878W)

UHF Dual Channel Wireless Headset Microphone (MC-878W)
Price: Negotiable/Set
Trade Terms: FOB,CFR,CIF
Min Order: 150/Roll
Pay Type: T/T,Paypal,Money Gram,Western Union
Prod Model: MC-878W
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency Range: 620-950MHz
Style: Headset Microphone
Application: Interview
Sound Channel: Mono
Signal Transmission: Wireless
Wireless Technology: UHF
Directivity: Uni-direction
Transducer Principle: Electrodynamic Microphone
Output Impedance: 50-1000Ω
Sound Field Force: Combined Type
Connector(',s): XLR Mini

Product Description


UHF & PLL wireless microphone
Our wireless microphone are very popular in high quality. We specialized in wireless microphone for almost 10 years. Welcome you to test our wireless microphone.


The latest evolution in wireless microphone technology is now available in the all
new MACARDEN UHF-878 FREE STYLE UHF DUAL WIRELESS MICROPHONE SYSTEM, which features 200 Selectable Channels in the Ultra High Frequency range between 620-950MHz.

This allows for a much wider usage range than set frequency microphones and is ideal for the Karaoke Professional working with multiple systems. The wide range of selectable frequencies virtually eliminates unwanted interference and accompanying sonic distortion.



The UHF-878 incorporates new patented PLL synthesized oscillator technology for stability, dynamic range and frequency response as well as Ultra High Speed MCU signal analyzer to control noise and shock for perfect tone. Combined with MACARDEN famous Crystal Clear Sound technology and traditional professional product durability, the UHF-878 emerges as THE unqualified Best Choice for a UHF Dual Wireless Microphone System.



MC-878
PLL & UHF DUAL CHANNEL WIRELESS MICROPHONE SYSTEM


KEY FEATURES
Adopt the PLL Synthesized control technic, preset 200 non-interfered channels.
Transfer datas to transmitter by infrared.
Digital LCD information display.
Using high gain antenna, the space availability is more than 100 meters at the clearing.
EIA standard 1/2U dual channel rack-mountable receiver with metal classics.



MC-878 RECEIVER
RF Frequency Range: 620-950MHz
Channels by Automatic Channels Targeting: Multi Channels 200
Oscillation Mode: PLL Synthesized
Receiving Sensitivity: -90dBm
Signal/Noise Ratio:>103dB(A)
Max Deviation: ±48KHz
T.H.D: <0.5%@1KHz
Audio Output Level: 3.5dBv(1.5V)@1KHz
DC Power Supply: 1A 12~15V DC
Working Range: Up to 100m
Dimensions: 21X19.6X4.5cm

MC-878 HANDHELD TRANSMITTER
RF Frequency Range: 620-950MHz
Frequency Regulation:IR Sync
RF Output Power:10mW/30mW/country dependent
Max deviation:±68KHz
Spurious Emissions:<-55dBc
Sound Cartridge:Dynamic Microphone
Battery Requirement:2X1.5V AA alkaline
Dimensions:26.5X5 cm

MC-878 BODYPACK TRANSMITTER
RF Frequency Range: 620-950MHz
Frequency Regulation:IR Sync
RF Output Power:10mW/30mW/country dependent
Max Deviation:±68KHz
Spurious Emissions:<-55dBc
Sound Cartridge:Condenser Microphone
Battery Requirement:2X1.5V AA alkaline
Dimensions: 11X6.7 cm

Remarks:Refer to actual product in the event of product discrepancy,Frequency range and peak deviation comply with the regulations of different countries.

Enping Macarden Electronics Factory. is located in Enping, Guangdong province, the "microphone manufacturing base in China". Our company, is a professional manufacturer specialized in the development, manufacture and corresponding sells of various UHF wireless microphone series and Conference System etc. We have a dynamic team, which is characterized by devotion, teamwork, integrity, and vision for the future. Combined with our advanced manufacturing and processing equipment, and refined craftsmanship, our products can be easily distinguished from those of our competitors. Up holding the principle of "Business by Quality, Making Development by Innovation, Customer First", we have been striven to meet the needs of customers with high performance, high quality and innovative designs of UHF wireless microphone series products.
Currently, our main markets are Southeast Asia, Europe, North and South America, and it is our aim to export our products worldwide so that more people may enjoy them. Our customers prefer us because of our trustworthiness, innovative products and professional after-sales service.
We will continue to progress through learning from advanced technology in the world, and work together with friends from home and abroad to provide high quality products and perfect after-sales service to satisfy the needs of customers.
