Ud-Sdxx300 Tilting Planetary Mixing Kettle with Agitator or Cooking Pot

Ud-Sdxx300 Tilting Planetary Mixing Kettle with Agitator or Cooking Pot
Price: US $ 5397/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: UD-SDXX300
Volume(L): 300
Diameter Of Pot (mm): 1000
Motor Power(Kw): 1.5
Mixing Form: Planetary/Scrap Base
Discharging Method: Automatic/Hydraulic
Heating Form: Variety of Heating Modes Can Be Chosen
Size(mm): 1500*1400*2200
Weight(Kg): 300
Voltage: 380V
Customized: Customized
Type: Cooking or Backing Machine

Product Description

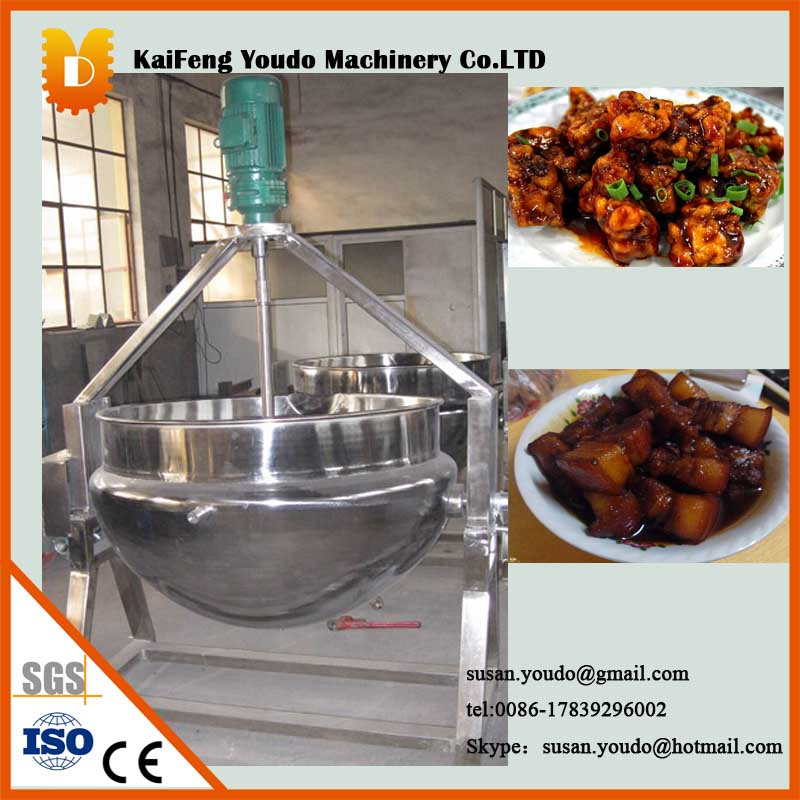

UD-SDXX300 Manual tilting planetary mixing kettle with agitator or cooking pot

Equipment Features:

1. Adopt special materials stamping molding, overall roundness error is very little, the stirring heads are highly adhered to the pot, this can effectively control paste pot.

2. Many kinds of heating modes to be chosen such as steam, gas, electrical heating conducting oil, electromagnetic.

3. Mixing method adopt special tiling and rotation mode, which makes stirring heads high stick against the pot, revolution and rotation don't run in ratio in order to scrap the pot thoroughly.

4. Advanced rotation and seal structure makes the pot easy to clean, meet certification standards at the national level.

5. Frequency control of motor speed, stable running.

6. The agitator is fixed, kettle can be tilting.

7. Electrical heating conducting oil: big heating area, controllable temperature, even heated.

8. Gas: convenient to use, and not restricted by operating voltage.

9. Steam: low cost, but not suitable for high temperature needed.

10. Electromagnetic: energy efficiency and environmental protection, saves 20%-30% electric quantity than common electric heating, rises temperature rapidly and the temperature can be controlled.

Equipment application:

Suitable for frying or baking vegetables and fish, seasonings, medical materials, etc. Often used in food industry, baking, food processing and other industry.

Technical parameters:


ModelUD-SDXX300
Volume(L)300
Diameter of pot (mm)1000
Motor power(kw)1.5
Mixing formPlanetary/Scrap base
Discharging methodAutomatic/Hydraulic
Heating formVariety of heating modes can be chosen
Size(mm)1500*1400*2200
Weight(kg)300
