| Prod Model: |
ME252 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Me Series Amplifiers Adopt SMT Modular: |
88mm*483mm*483mm for 2u |
| 8 Ohms Stereo Power:2X250W: |
4 Ohms Stereo Power:2X400W |
| 8 Ohms Bridge Power:800W: |
Thd @ Rated Power 4 Ohms 1kHz:< 0.01% |
| 20Hz - 20kHz:< 0.03%: |
Hum&Noise:- 103dB |
| Damping Factor 1 KHz, 8 Ohms:> 200: |
Input Sensitivity:0.775V(0dB) 1.22V 1.6V |
| Power Requirement:220V AC @ 20AMPS: |
Carton Dimension(H*W*L):155mmx600mmx640mm |
| Gross Weight:21.2kg: |
Net Weight:17kg |
| Function: |
Post Amplifier |
| Tube Type: |
Transistor Amplifier |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Conductive Mode: |
AB |
| Usage: |
Professional |
| Output Number: |
2channel |
| Used For: |
Professional&Civilian |
| Sound Channel: |
2 Channel |
Product Description

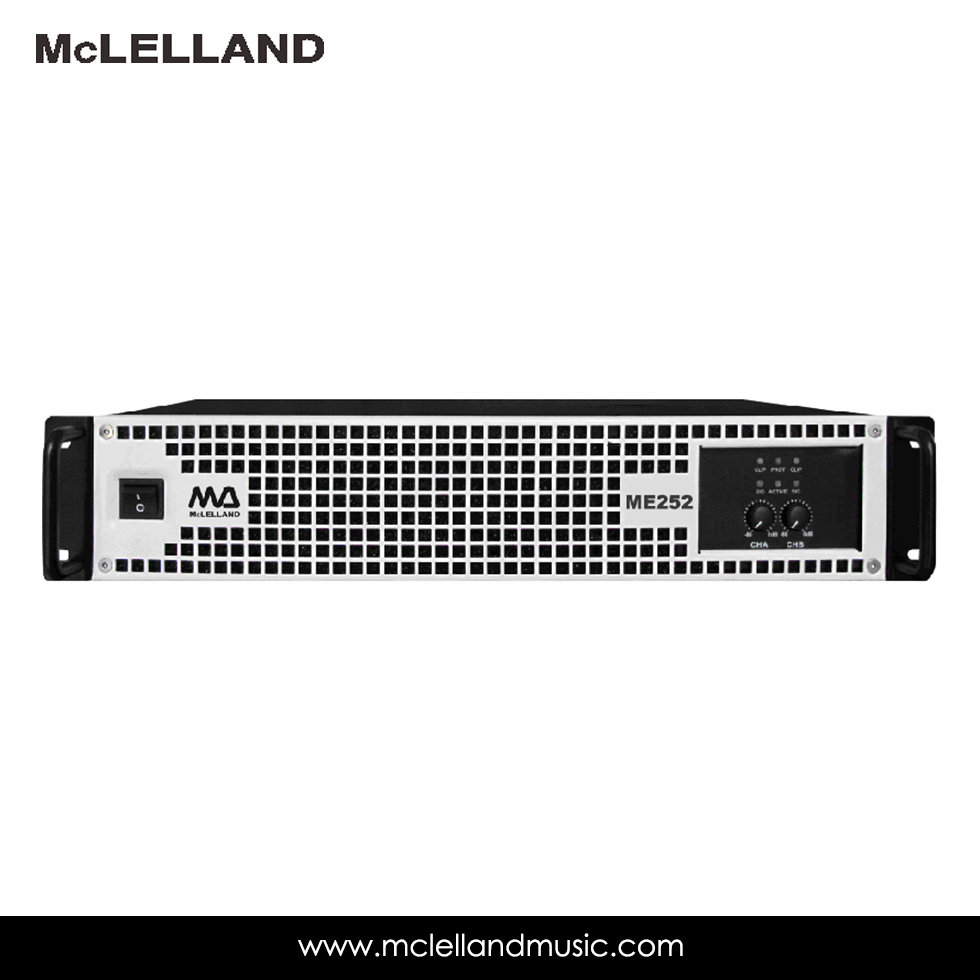

Two Channel Stereo Power Amplifier with 250W( ME-252)
Specification:
8 ohms Stereo Power: 2X250W
4 ohms Stereo Power: 2X400W
8 ohms Bridge Power: 800W
THD @ Rated Power 4 ohms 1kHz: < 0.01%
20Hz - 20kHz: < 0.03%
Hum&Noise: - 103dB
Input CMRR: > 80 dB
Gain: 32dB
Damping Factor 1 kHz, 8 ohms: > 200
Input Sensitivity: 0.775V(0dB) 1.22V 1.6V
Frequency Response: 20Hz~20kHz, + 0/-0.5dB
Input Impedance(actively balanced): 20kΩ
Power Requirement: 220V AC @ 20AMPS
Dimensions(H*W*L): 88mmX483mmX483mm
Carton Dimension(H*W*L): 155mmX600mmX640mm
Net Weight: 17kg
Gross Weight: 21.2kg
|
Model |
ME-252 |
ME-352 |
ME-452 |
ME-602 |
ME-752 |
ME-902 |
ME-1202 |
ME-1402 |
|
8 ohms Stereo Power: |
2X250W |
2X350W |
2X450W |
2X600W |
2X750W |
2X900W |
2X1200W |
2X1400W |
|
4 ohms Stereo Power: |
2X400W |
2X550W |
2X700W |
2X900W |
2X1200W |
2X1400W |
2X1850W |
2X2100W |
|
8 ohms Bridge Power: |
800W |
1100W |
1400W |
1800W |
2400W |
2800W |
3700W |
4200W |
|
THD @ Rated Power 4 ohms 1KHz |
<0.01% |
|
20Hz-20KHz |
<0.03% |
|
Hum & Noise |
-103dB |
|
Input CMRR |
>80 Db |
|
Gain |
32dB |
33dB |
35dB |
36dB |
38dB |
39dB |
40dB |
40dB |
|
Damping Factor 1 KHz,8ohms: |
> 200 |
|
Input Sensitivity: |
0.775V(0dB) 1.22V 1.6V |
|
Frequency Response: |
20Hz~20kHz,+0/-0.5dB |
|
Input Impedance(actively balanced) |
20kΩ |
|
Power Requirement: |
220V AC @ 20amps |
220V AC @ 30amps |
|
Dimensions(H*W*L): |
88mmX483mmX483mm |
132mmX483mmX483mm |
|
Carton Dimension(H*W*L): |
155mmX600mmX640mm |
195mmX600mmX640mm |
|
Net Weight: |
17kg |
18.5kg |
19kg |
19.5kg |
23kg |
25kg |
26.5kg |
31.5kg |
|
Gross Weight: |
21.2kg |
22.7kg |
23.2kg |
23.7kg |
27.2kg |
29.2kg |
30.7kg |
35.9kg |
