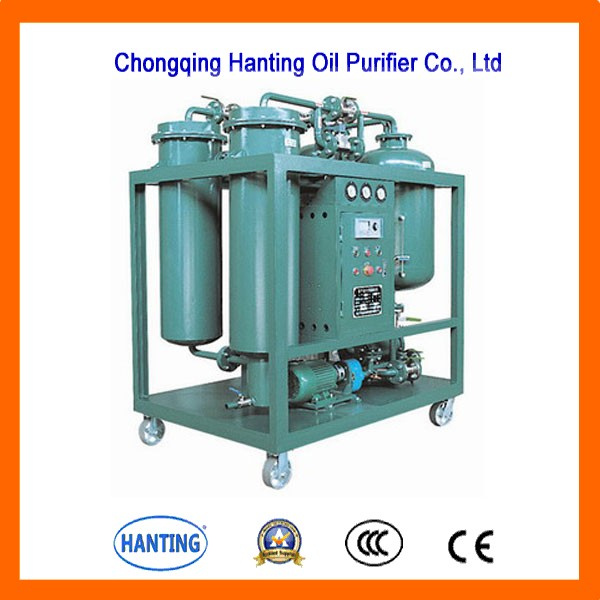

TP Turbine Oil Purifier for Removing Water and Impurities

TP Turbine Oil Purifier for Removing Water and Impurities
Price: US $ 3000-30000/Set
Trade Terms: FOB,CFR,EXW
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: TP
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Performance: Automatic
Structure: Mobile
Usage: Dewater, Degas, Remove Particles in Insulating Oil
Mechanical Principle: Vacuum + Patent
Type: Vacuum
Capacity: 600-30000 Liter/Hour
Working Principle: High Vacuum + Polymer Filter
Function: Dewater, Degas, Remove Particles in Oil
Purpose: Restore Turbine Oil Property
Machine Color: Blue, Grey, Green, Yellow or at User's Option
Application: Turbine Oil, Lubricant Oil, Hydraulic Oil...etc

Product Description

Application of TP turbine oil purifier:

To remove moisture, gas and particles in Turbine oil, lubricant oil, hydraulic oil, gear oil, vacuum pump oil, engine oil...etc, and restore property of oil.

To purify contaminated turbine oil, gas turbine and hydraulic turbine oil in the power, chemical, papermaking and metallurgic industries, ensuring adjustment to unit and smooth operation of lubricating system. It can also be used to treat low viscosity lubricant oil and cooling oil.


Technical Features of TP turbine oil purifier

1. The TP series integrate the gravity method, evaporation method, coacervation, vacuum separation and mechanical purification, utilizing coacervation, molecular absorption, vacuum drying and automatic demulsifying technologies which are capable of separating large and minimal amount of water from oil. Its high water removal and demulsifying efficiency makes turbid oil to be clear and limpid.

2. The precision multi-stage filter element can remove effectively various impurities, as it is a stage-to-stage densified filter element which could accommodate large amount of impurities and has a longer lifetime.

3. The advanced infrared level automatic control system, voice & light automatic alarm system and the pressure protection device ensure a safe and reliable operation.

4. Turbine oil and low viscosity lubricant oil can be treated online.
ItemsUnitTP-10TP -20TP -30TP -50TP -100TP -150TP -200TP -300
Flow rateL/min10203050100150200300
VacuumRangeMpa-0.06 to -0.095
Working PressureMpa≤0.4
TemperatureRange 20 to 80
Power Supply 380V 50HZ (or at user's option )
NoisedB(A)≤65~80
Fault-Free Working Hoursh≥4000
Continuous Running Hoursh≥150
Heating PowerKw1215182445607284
Total PowerKw1417202748668197
Inlet(Outlet) DiametermmΦ25Φ25Φ25Φ32Φ42Φ50Φ50Φ60
Total weight of equipmentkg400450500600800100011001550
DimensionLmm12801350135013501500150016001650
Wmm75090095010001000120013501350
Hmm14501450150018001800180018001850
Indexes After filtrationDemulsifying valuemin≤15/min(GB/F7035)
Water contentppm≤80
Gas content%≤0.1
cleanliness ≤NAS 6
Chongqing Hanting Oil Purifier Co., Ltd is a filtration, separation and purification leader providing solutions to meet the critical fluid management needs of customers across the broad industries. Hanting works with customers to advance health, safety and environmentally responsible technologies.

The Company' S products cover the wide range, such as insulating oil purifier, transformer oil purifier, lubricating oil purifier, hydraulic oil purifier, turbine oil purifier, diesel oil purifier, used or waste black engine oil regeneration system and other industrial oil purifiers. By more than ten year' S efforts, Hanting company has grown into a comprehensive and high-tech enterprise, besides various oil purifiers, we also can supply the insulating oil tester (BDV dielectric strength tester), moisture tester, air drying machine, vacuum pumps set, and other oil test devices.

Based on good quality, advanced technology and reliable service, our products have been sold to more than 50 countries and zones around the world and have obtained good reputation among our customers.

Chongqing Hanting Oil Purifier Co., Ltd always helps our customers to purify the contaminated oils, save money for them. We' Ll work with you to optimize system performance, reliability and run-time, product quality, reduce cost, and realize a faster, better return on your investment.
