Structural characteristics

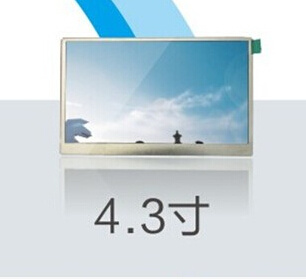

Panel size: 4.3 inches
Resolution : 480 (RGB) × 272
Aspect ratio: 16: 9
Pixel arrangement : RGB Vertical Stripe
Pixel pitch : 0.198 × 0.198 mm ( horizontal * vertical )
Panel Weight : TBD
Finish: matte,
Display area : 95.04 × 53.856 mm ( horizontal * vertical )
Viewable area : 98.3 × 57.1 mm ( horizontal * vertical )
Dimensions : 105.5 × 67.2 mm ( horizontal * vertical )
Panel thickness : 4.1 ± 0.3 mm ( thickness )
Touch screen : TP
Optical properties
Display Mode : TN, NW, TM
Panel Brightness : 280 cd / m2 (Typ.)
Contrast Ratio: 450: 1 ( transmission ) (Typ.)
Display Color : 16.7M (6-bit + Hi-FRC)
Color saturation : 50%
Response time : 20 (. Typ) (Tr + Td) (ms)
Viewing angle : (. Typ) 70/70/70/50 (CR≥10) ( left / right / up / down )
Best viewing angle : 6 o'clock
White color : X: 0.315; Y: 0.328
White field change : 1.33 (Max.) (9 points)
Electronic properties
Scanning Frequency : 60HZ
Reverse Scan : No
T-CON: Embedded T-CON
Signal Interface Top
Signal categories : PR
Signal categories : Parallel RGB (1 ch, 8-bit)
Panel Voltage : 3.3V (Typ.)
Signal voltage : 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
Interface Type : FPC
Feet away from the interface : 0.5 mm
Interface Quantity : 1 pcs
Interface pin count : 40 pins
Backlight system
Lamp Location : side- light
Backlight Type : WLED
Lamp Quantity : 5S2P
Lamp Shape : Array
Single lamp voltage : 16V (Typ.)
Single lamp current : 40 / 50mA (Typ / Max..)
Lamp total power : 640mW (Typ.)
Lamp Interface Type : IISI
Backlit Circuit : No
Packing Top
Qty : 112 pcs
Carton size : 530 × 350 × 250 mm ( length × width × height )
