Tjsun Compact Pressurized Solar Water Heater

Tjsun Compact Pressurized Solar Water Heater
Price: US $ 284-685/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: TJSUN 58-18-16
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Structure: Compact Type
Pressure: Pressurized
Interior Material: Stainless Steel
Collector Components: Glass Vacuum Tube
Max. Capacity: 1000L
Certification: Solar Keymark /SRCC/ SABS

Product Description

Solar Keymark SRCC SABS Approved.


Pressure Water Heater:

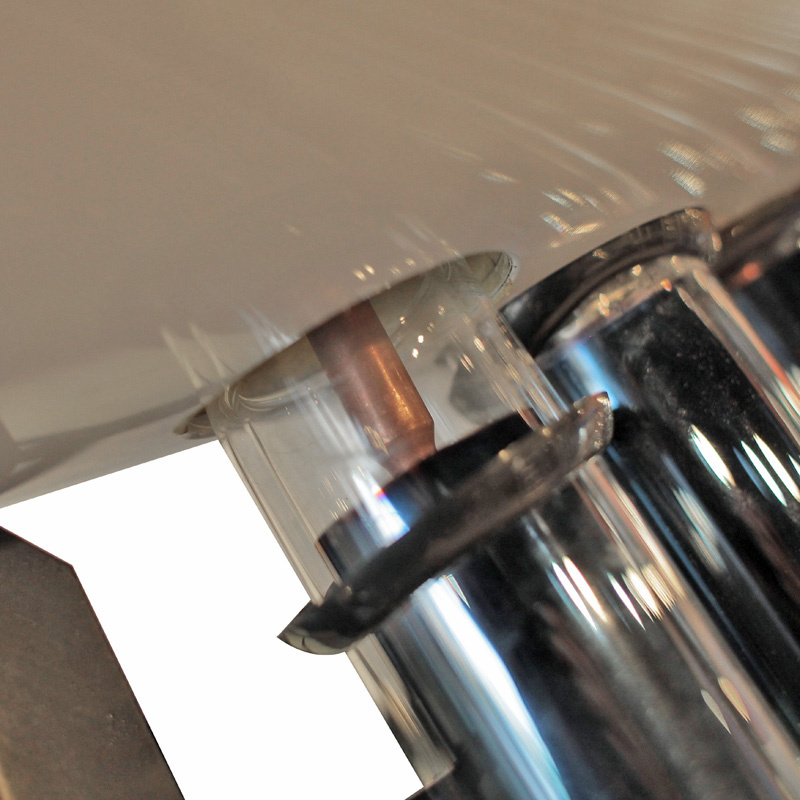

The vacuum tube with special coating abdorbs the sun's ray and turns it into heat energy,copper heat pipe inside the tube heats up and transmits this energy into the tank.That pressure system does not have any water in the glass tube.


Specification:
1. Inner tank:  1.2 mm food grade stainless steel 304-2B; Outer tank: 0.4mm galvanized steel
2.Heat Insulation:  55mm thickness polyurethane foam

3. Supporting Frame:   Galvanized plate 1.5mm

4. Vacuum tube:  Absorption rate≥ 96%, Hail resistance 25mm, service life 15 years

5. Heat exchanger:  red copper

6. Heat preservation:   72-80hours

7.Pressure:   6 bar

8. Capacity:   100-500 Liters



Features:
1.Use in any time: it adopts advsanced design idea and integrateds with high efficienct preheated patent technique.So it can warm the cold water rapidly when it flows through special pipe.It can overcome the short of traditional sloar water heater,such as slow heating,long waiting time.

2.More capacity:we adopt special exchanging heat mode,it avoids mixed effect.So cold water can be heated at any time.

3.Strong hydraulic pressure: the hydraulic pressure is same as tap water.It is very suitable for tired person.

4.Economical and environmental protecting: there is no pollution when it is working since it depends on sunshine,green and economical

5.Easy operation: it can supply water automatically,you can take it eastyand enjoy good time

6.Fashionable: the appearance is fashionable and it can great integrate with your fitment


                                           Compact Pressure Solar Water Heater
Model                                Tank   Bracket                    TubeRemark
VolumeOuter tankInner tankTube QuantityDia./Len of Tube
TJIP58/1800-12100LGalvanized Steel Plate,thickness:0.4mmStainless steel SUS304-2B,thickness:1.2mmGalvanized Steel Plate,thickness:1.5mm1258mm/1800mmSystem including PT valve,safety valve,electrical heater,solar controller,male connectors
TJIP58/1800-18150L18
TJIP58/1800-24200L24
TJIP58/1800-30250L30
TJIP58/1800-35300L35


Jiaxing Tjsun New Energy Co., Ltd., is a high & new technology company which is specialized in manufacturing solar energy products, especially the solar water heaters, with ten years' experience in this line. Tjsun is a global company focused on providing simple and effective solutions for families and businesses concerned about the effects of climate change and rising energy costs. Tjsun solar thermal systems are widely used in both residential and commercial applications to provide hot water, space heating, industrial hot water and even air-conditioning. In 2013, TJSUN Energy spent 200000000RMB to build a production line for Foam glass, Insulation material for Petrochemical and commercial construction use.
Tjsun has a high reputation with the strategy of technological products, normative management, international standard and star-class service. Jiaxing TJSUN New Energy Co., Ltd. Has won quite a good market share due to excellent quality and competitive price. In the coming years, Jiaxing tjsun New Energy Co., Ltd. Would like to cooperate with the customers from all over the world and make more people share the benefits which the solar energy brings.
