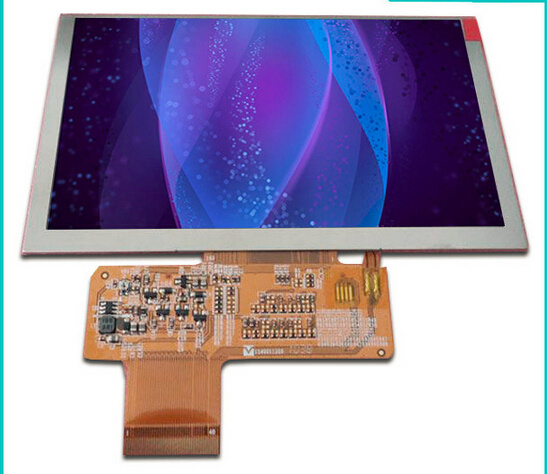

Shenzhen Yaosheng Electronic Technology Co., Ltd. >> Tianma TM050rbh01 High Brightness 800X480 Resolution 5.0 Inch TFT LCD Display with Tp Touch Panel

Tianma TM050rbh01 High Brightness 800X480 Resolution 5.0 Inch TFT LCD Display with Tp Touch Panel

Tianma TM050rbh01 High Brightness 800X480 Resolution 5.0 Inch TFT LCD Display with Tp Touch Panel
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 100/Piece
Pay Type: T/T
Prod Model: TM050RBH01
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Industry: Medical
Application: Indoor
Feature: LED Backlight Display
Type: TFT

Product Description

Brand Name:
TIANMA
Model Number:
TM050RBH01
Type:
TFT
Resolution:
800x480x3(RGB)
Screen Size:
5.0'
Brightness:
250~300cd/m2
View angle (T/B/L/R):
70/70/50/70(°)
Contrast Ratio:
450:1
Dot Pitch(mm):
0.045x0.135(mm)
Response time(ms):
20(Typ.)(Tr+Td)(ms)
Operation Temperature( ºC):
-20~60ºC
Storage Temperature( ºC):
-30~70ºC
Dimension(mm):
120.7x75.8x4.4/6.30(Typ./Max.)mm
Yaosheng provide total solutions for LCD panels and modules. We support both monochrome STNs and full-color TFT LCDs. We provide full customized monochrome STN, and semi-customized TFT modules. We are supplying a wide variety of LCD modules to meet the ever-growing demands.

Yaosheng Solutions get strong support from Tianma, Truly, and Innolux, we provide flexible support to our customers, fast delivery, flexible MOQ, and competitive cost.

Please check the following website to find the products supported by us.

Our products include LCD panels of TN, STN, FSTN; LCMs with COG, COB, TAB; And TFT LCD modules.

Custom LCD Panels: Segment, icon, chracter, and mixed

Custom / Standard Character: 16X1, 16X2, 16X4, 20X2, 20X4, 24X2, 40X2, 40X4

Custom / Standard Graphic: 128X64, 128X128, 160X128, X160X160, 240X128, 240X64, 320X240

Semi-custom / Standard TFT Modules: 2.8", 3.5", 4.3", 4.7", 5.0", 7.0", 10.4"

All of our displays are RoHS compliant, which have been used in wide range of applications: Communication, Medical, Instrumentation, Metering, and Industrial applications.

We endeavour to serve our customers with Quality Products, Competitive Cost, Excelled Service, and Fast Delivery.
