Huasun Technology Co., Ltd. >> Thin Light LED Curtain Display Wth Magnetic Combination

Thin Light LED Curtain Display Wth Magnetic Combination

Thin Light LED Curtain Display Wth Magnetic Combination
Price: US $ 1900/Square Meter
Trade Terms: FOB
Min Order: 5/Square Meter
Pay Type: L/C,T/T
Prod Model: Rubik-6
Flexible LED Screen Body: ABS+PC Plastic
Tube Chip Color: Full Color
Display Function: Video Display
Scanning Mode: 1/8 Scan
Application: Exhinbtion Shows
Pixel Configuration: 1R,1G,1B
IP Rating: IP54
Certification: RoHS
System Operating Platform: WIN XP
Pixel Pitch: P6.64mm
Pixel Density: 22682 Pixels/M2

Product Description

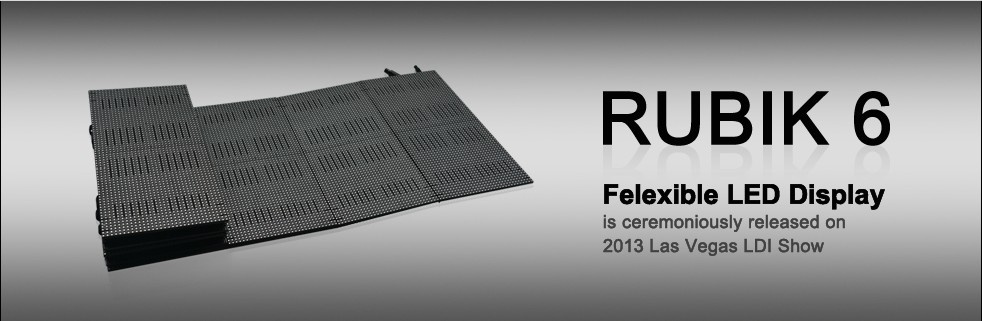

Rubik series is our newest product in 2013.
It's ever-changing like a Rubik's cube. This kind of LED display has some very special features: light weight, excellent pixel density, high definition, and varied combination. It looks like a book when folded and is similar to a painting after upfold. Because it's soft, it can be used for any shape LED display. Even better, the remarkably slim and light design makes installation and transportation wonderfully easy. A refresh rate of more than 10,000Hz produces an incredibly vivid, lifelike video and superior performance for all kinds of professional applications.



Features :

1. Unique body design, slim, light, and semi-transparent (is less than 25mm thick and

weighs less than 10kgs/sq m)

2. A refresh rate of more than 8,000Hz, outstanding image quality and elegant, good for

all kinds of professional uses

3. Flexible and foldable! Any irregular-shaped LED display is available

4. Reliable, built to the highest standards

5. Fast and easy to assemble, no tools

6. Modular for easy serviceability                                                                                           Specifications:




Model No Rubik 6

Pixel pitch6.64 mm

Density22682pixel /m2

Pixel configurationRGB 3-in-1 SMD

Brightness(White)2600 nit

Optima visual distance5m

 Max.power consumption280W/ m2

Average.power consumption93W/ m2

Recommendation size
(Size can be customized)W=425mm   L=1700mm   T=25mm

Weight10.5Kg/sq.m

Work voltageDC 24V

Brightness level16 levels

Bit depth per color16 bit

Bit depth per pixel48 bit

Visual angleHorizontal:120 degree ; Vertical:120 degree

Refresh rateMore than 7000Hz

Display mode1280X1024

Drive modeConstant current

Signal type
AV,S-Video,VGA,CVBS,HDMI,DVI

Control distanceHSYV; less than 100m

Body structurePlastic,Metal

Ingress protectionIP 54

Ambient temperature-20~+50 degree

Relative humidity10%~90%

InstallationHang

Power systemPower-600,Power-1200,Power system

Applications:
Huasun Technology Co., Ltd. is a high-tech enterprise that is engaged in the researching, developing, producing, marketing, and engineer service of LED display and LED lighting. It has been grown in Beijing, capital of China, for over ten years. The main products and services include LED display system, LED digital stage system, LED lighting system. With a business principle of technological innovation and professional service, the company commits to provide high-quality LED products and solutions for all clients.

The company has a R&D team made up of senior engineers. Taking advantage of the technological and cultural resource in the Capital of China, working together with experts in mechanism, optics, and electronics from the main universities, the team is devoted to the research and application of multimedia technology and has gained the leading position in product design, software development, mechanical design and optical application. The company has own many national invention patents in LED display technology. Flexible LED display, one of our patents, is a landmark product in the development of LED display. It is widely used by the clients from all over the world for the advantages of compact size, light weight, and easy installation. We always keep in mind that the mission and responsibility of the enterprise is to change the world by pioneer spirit and innovative product in a technology high speed age. We are always proud of it.

Welcome to future of Huasun: A brighten future.
