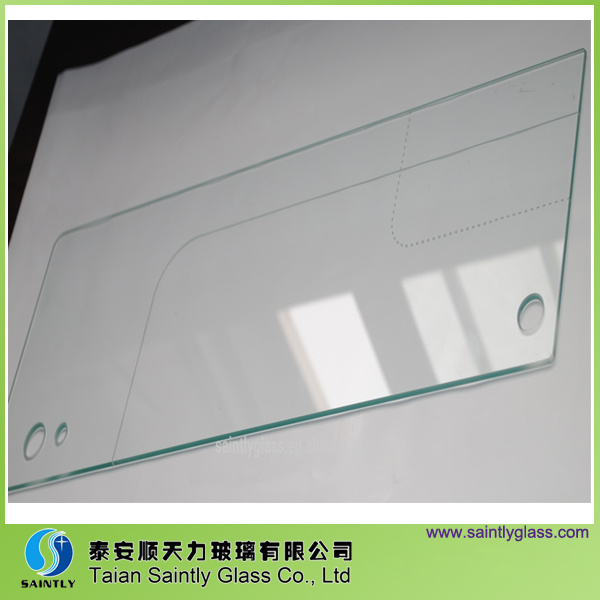

Tempered Refrigerator Glass Panel

Tempered Refrigerator Glass Panel
Price: Negotiable/Piece
Trade Terms: FOB,CIF,CIP
Min Order: 500/Piece
Pay Type: L/C,T/T
Prod Model: tempered refrigerator glass panel
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Glass Raw Material: Ultra Clear Glass, Clear Glass(Flat Glass)
Technique: Rectangular
Thickness: 3mm 4mm 5mm 6mm 8mm 10mm
Edge: Could Be Customized
Corners: Could Be Customized
Drilling&Grooving: Could Be Customized
Printing Color: Could Be Customized
Tempering: En60598
Function: Decorative Glass, Kitchen Glass, Oven Glass
Style: 3mm-15mm Clear Tempered Glass / Toughened Glass
Application: Wine Cooler Parts

Product Description

Why choose us?
1. 8 years experience on glass processing
2. Comply with EN, AS/NZS, ASTM, GB standard.
3. Well equipped with world advanced equipments.
4. 5-15 days fast delivery time.
5. Strict quality control management.
6. Safe wood/plywood packing
7. Competitive price and quality.

Processing Capacity and Main Technical Parameters:
No.EquipmentsProcessing Capacity and Main Technical Parameters
1cutting machinemax. 3700*2600,precision: ±0.2
2CNC processing centermin. 100*100, max.1000*2200, precision: ±0.2
3Tempering furnaceFlat glass: min.φ180mm, max. 4000*1300mm;
Curved glass: 350×280, 1300×1000.
Minimum bending radius: 3.2-6mm: R≥450mm; 8-12mm: R≥1000mm
4straight edge double edgerprocessing range: 120-2000mm, thickness: 3-25mm, parallelism error: ≤0.1mm/m, diagonal≤0.5mm/m)
5pencil edge double edgerprocessing range: 80-1500mm, thickness: 3-25mm, parallelism error: ≤0.1mm/m, diagonal≤0.5mm/m
6beveling machinemin: 60*60mm, thickness: 3-19mm, angle: 0-30°, length of bevel edge: 0-30mm
7corner-rounding machineprocessing range: R3-R80, precision: ±0.5mm
8Water-jet cutting machine1500*2500, precision: ±0.5mm
9silk-screen printing machineprinting area:max.1300*800


Production Range:
1Glass Materialclear float glass, low iron glass(ultra clear float glass), bronze glass, grey glass, blue glass, patterned glass, borosilicate glass, ceramic glass, frosted glass(acid etched glass), sandblasted glass, low-e glass, AR glass, AG glass, etc.
2Sizeaccording to customer's requirements
3Shaperectangular, round, ellipse, semiellipse, hexagon or other special shape
4Edge shapestraight, round, beveled, stepped, etc.
5Edge workedges arrised, edges ground, edges polished, etc.
6Cornersblunted corners, round corners or cut corners
7Drillingnormal holes or counterbore(according to customer's requirements)
8Printingsilk-screen printing with black, white, gray, gold, brown, red, yellow, sandblasting   effect, etc.(color is RoHS-compliant )
9TemperingEn60598, En12150, etc.(High security, once tempered glass breakage occurs, the glass could break into small fragments, which are harmless to human body)
10Packingplywood crates with paper interlayer which are solid and exquisite
11Main Productsdecorative glass, range hood glass, refrigerator glass, oven glass, electric fireplace glass, instrument glass, lighting glass, air conditioner glass, washing machine glass, sight glass, tempered glass screen, glass door, bathroom glass, splash back glass, glass tiles, etc.
Tai'an Saintly Glass Co., Ltd, situated at the foot of world-renowned Mount Tai, is located in Hi-Tech Industrial Development Zone of Tai'an, Shandong Province, with more than 100 employees. We are committed to the design, production and sales of such special glass as household appliance glass, range hood glass, lighting glass and instrument glass, and able to provide customized design, production and service based on customers' demand.

Our main products are as follows: Household appliance glass (glass for refrigerator, air conditioner, washing machine, oven, microwaves and disinfection cabinet), range hood glass, lighting glass, instrument glass, etc. "High-quality, high-end" is the main feature of our products, as a result of which, we win a wide range of domestic and foreign customers. Our glass products have already been widely supplied for LG, Siemens, Panasonic, Hitachi, Philips and other companies which are among the world's top 500 enterprises and famous domestic enterprises such as Hair, Midea and Gree. Our household appliance glass is also widely exported to Europe, America, Australia, Japan, South Korea, Southeast Asia and other countries and regions. The quality of our products is well received by customers' at home and abroad.

Our company is equipped with about 60 advanced facilities, such as Bottero cutting machine and Intermac CNC processing center from Italy, CNC drilling machine from Taiwan, CNC edging grinding machine and Southtech toughening furnace. With these advanced equipments, we can produce glass of different shapes based on customers' demand. We also have five silk-screen printing lines, by which, we are able to print all sorts of complex patterns according to customers' requirements. Advanced equipments ensure the high and reliable quality.

In 2012, our company passed ISO9000 quality management system and CCC certification. Rigorous and scientific management is a powerful guarantee to continuously improve product quality. Good quality comes from profession, characteristic leads the future. Characteristic products and service is the foundation of our cooperation, and we look forward to creating brilliant achievements together with you.
