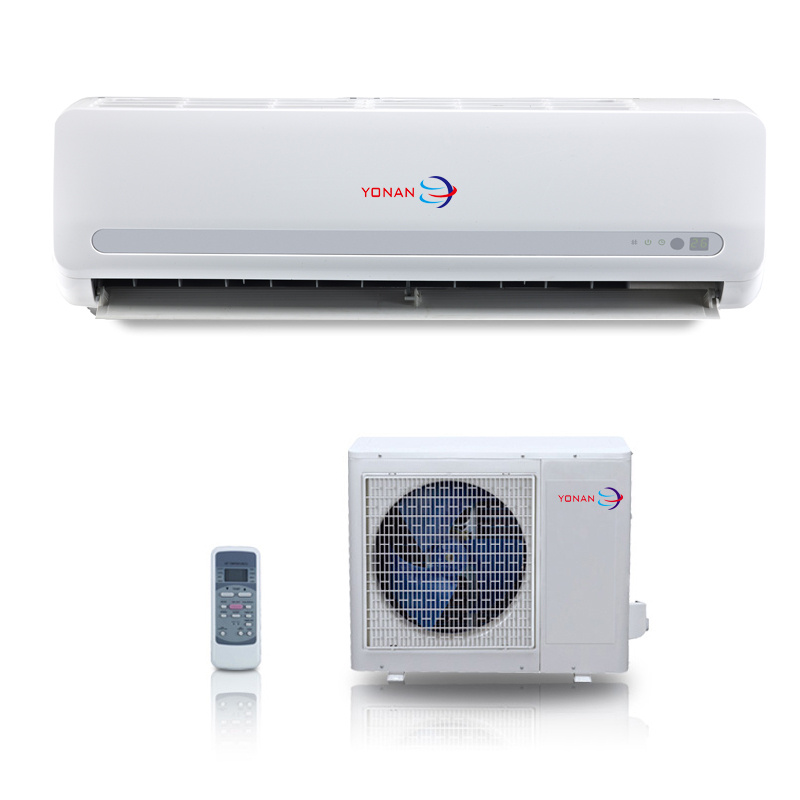

T3 Piston Compressor Cooling Only Home Air Conditioner Manufacturer
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
50/Piece |
Pay Type: |
L/C,T/T |
Prod Model: |
YN |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Refrigerant: |
R410A |
Type: |
Window Mounted Air Conditioners |
Capacity: |
18000-24000 BTU |
Usage: |
Room |
Indoor Machine Noise: |
>50dB |
Certification: |
BEB |
China Energy Efficiency Standard: |
Level 1 |
Cooling/Heating: |
Cooling Only |
Power Source: |
Electrical |
Power Type: |
AC |
Condition: |
New |
Product Description
T3 Piston Compressor Cooling Only Home Air Conditioner Manufacturer
Feature
- Home air conditioner manufacturer for 13 years
- Hydrophilic film aluminum foil.
- Extra quiet operations
- Air exchange device
- Automatic restart function
- Self-diagnosis and auto-protection
- Intelligent defrosting
- Independent de-humidifying
Specification
Power supply | Ph-V-Hz | 220-240V~ 50Hz, 1Ph |
Cooling | Capacity | Btu/h | 5275 |
Input | W | 1925 |
Rated current | A | 8.8 |
EER | W/W | 2.74 |
Heating | Capacity | Btu/h | ---- |
Input | W | ---- |
Rated current | A | ---- |
COP | W/W | ---- |
Max. input consumption | W | 3200 |
Max. current | A | 16 |
Starting current | A | 52 |
Compressor | Model |
| AW 5520B |
Type |
| RECIPROCATING |
Brand |
| KK |
Capacity | Btu/h | 17400 |
Input | W | 1770 |
Rated current(RLA) | A | 8.4 |
Locked rotor Amp(LRA) | A | 52 |
Thermal protector |
| KGE 656-4 |
Thermal protector position |
| Internal Overload |
Capacitor | uF | 30 |
Refrigerant oil/oil charge | ml | Polyolester Oil/964 cc. |
Indoor air flow (Hi/Mi/Lo) | m3/h | 800/680/500 |
Indoor noise level (Hi/Mi/Lo) | dB(A) | 45/40/32 |
Outdoor noise level | dB(A) | 61 |
Refrigerant type | g | R410A/1380g |
Design pressure | MPa | 4.2/1.5 |
Refrigerant piping | Liquid side/ Gas side | mm(inch) | Φ6.35/Φ12.7(1/4"/1/2") |
Max. refrigerant pipe length | m | 20 |
Max. difference in level | m | 8 |
Connection wiring |
| 2.5(Optional) |
Plug type |
| 2.5x3 |
Thermostat type |
| Remote Control |
Operation temperature | ºC | 17~30 |
Room temperature | Indoor(cooling/ heating) | ºC | 17-32/---- |
Outdoor(cooling/heating) | ºC | 18~52/---- |
Application area (Cooling Standard) | m2 | 23-33 |
Qty'per 20' /40' /40'HQ |
| 78/158/180 |
Shenzhen MoreTrade Network Technology Co., Ltd. ( Predecessor is Shenzhen Yonan Appliance Co., Ltd. Found in 2002).
As one of the most important companies in home appliance industry in the world. We commit ourselves to R & D, production, sales and service of air conditioning, refrigerating and other home appliance products. Ranging from household air conditioner, commercial air conditioner, household refrigerator, kitchen appliance etc.
We are a large high-tech enterprise with a sales office in Shenzhen CBD, and factories in Foshan and Shenzhen, China. Our factory possesses a high-tech industrial park with land coverage of 8000, 000 square meters, and dozens of modernized production lines with an annual production capacity up to 12 million units of air conditioners, refrigerator, kitchen appliance and other home appliance.
After many years of rapid development, MoreTrade has achieved a lot, and "YONAN" brand become a leading brand home appliance industry. Its sales network for air conditioner, refrigerator, kitchen appliance and other home appliance covered more than 150 countries and regions. Now MoreTrade has become one of the most important manufacturers in China, and the fastest developing enterprise in home appliance industry. Especially during the world financial crisis, MoreTrade adjusts the sales policy immediately, sharing the losses with customers in crisis, and sticking together with customers in difficulty, which has been highly appreciated by customers worldwide.
It is MoreTrade's corporate spirit that guarantees its rapid, stable, efficient development. Replying on human resources and managing by trust, we hold the business principle of "Quality is the basis of enterprise's existence, science and technology is the suaranty of enterprise's benefits, and brand & reputation is the power of enterprice development", and emphasize on technology and innovation. After making efforts for many years, MoreTrade has accomplished lots of research results and owned many core technologies. Up to now, MoreTrade products has passed more than 200 global authoritative certifications.
MoreTrade firmly believes that success comes from efforts, and prospect goes with challenge. Moretrade team will constantly pursue efficiency and innovation to improve overall management skill, and maintain high-speed development. To achieve a better tomorrow, MoreTrade will keep on continuous innovation, and "YONAN" brand will definitely be acknowledged has a famous brand in the world.
