| Prod Model: |
SZTP1208-3.5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
3.5" Inch |
| Structure: |
Pet + Film + Film + Glass |
| Connector: |
Pin 4 Plug Connector |
| Thickness: |
1.4 ± 0.15 mm |
| Touch Media: |
Finger, Touch Pen |
| Ratio: |
16:9 |
| Type: |
4 Wire Resistive Touch Screen |
| Resolution: |
4096*4096 |
| Aspect Ratio: |
16:9 |
| Application: |
Security Monitoring System |
| Screen Type: |
Resistive |
| Resistive Touch Screen Type: |
Analog |
| Screen Size: |
3.5 Inch |
| Customized: |
Custom Service Available |
Product Description
Product DescreptionThe Feathers Of SZTP1208-3.5 LCD Smart Touch Screen For Security Terms As Bellow:1.3.5 Inch Size.
2.Can Be Used In Outdoor And Indoor.
3.High Accuracy And Sensitivity.

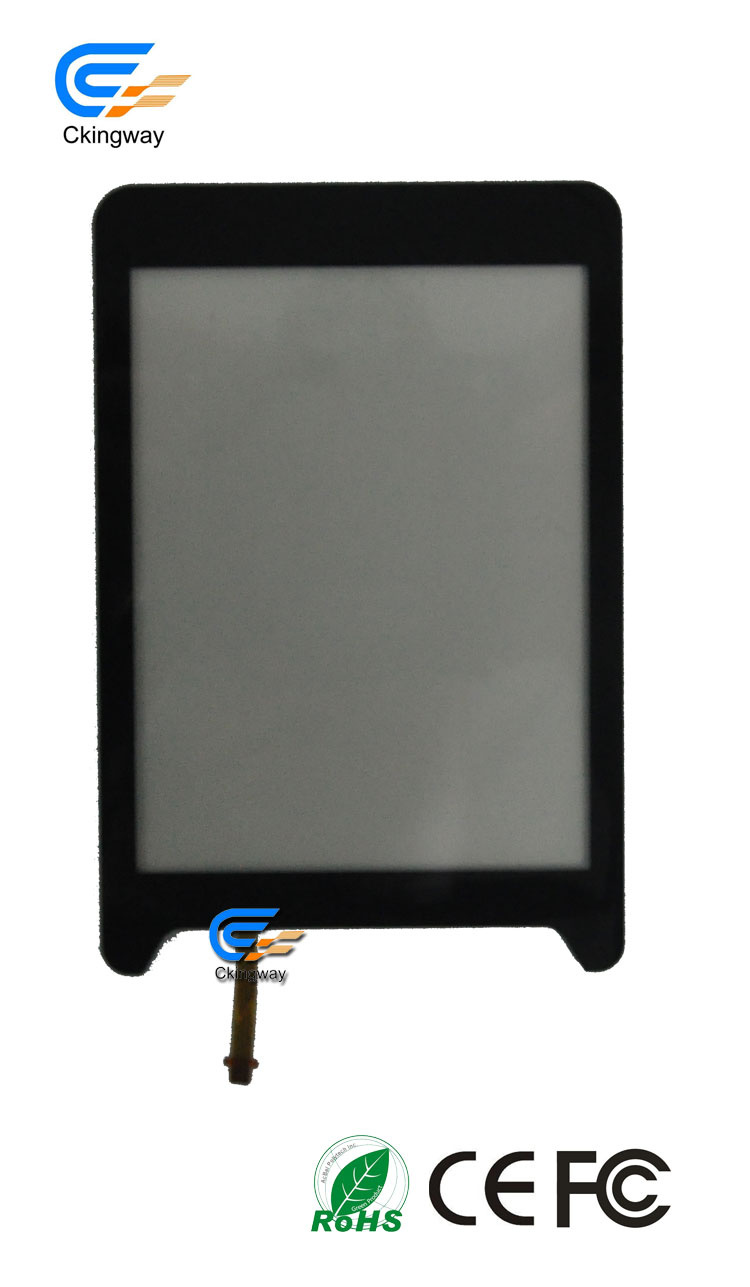

4.Adapt To Adverse Environmental Conditons.Detailed Images
| Size | 3.5" inch |
| Structure | PET + Film + Film + Glass |
| Connector | Pin 4 plug connector |
| Thickness | 1.4 ± 0.15 mm |
| Touch Media | Finger, Touch Pen |
| Type | 4 Wire Resistive Touch screen |
| Ratio | 16:9 |
| Resolution | 4096*4096 |
| Response Time | ≤ 10 ms |
| Supply Voltage | 5V DC , 35 mA |
| Transparent | ≥ 78% |
| Screen Resistance | X:100-500Ω Y:200-1000Ω |
| Insulation Resistance | ≥20MΩ(10V DC) |
| Pressure | 50 - 150 g |
| Surface Hardness | 3H |
| Life Span | > 1,000,000 time knocking ;
≥ 100,000 time in paddling |
| Operating Temperature | - 10ºC ~ +60ºC |
| Storage Temperature | - 20ºC ~ +70ºC |
| Storage Humidity | 20 ~ 85% RH (except congeal fog) |
| Custom Service | Available |

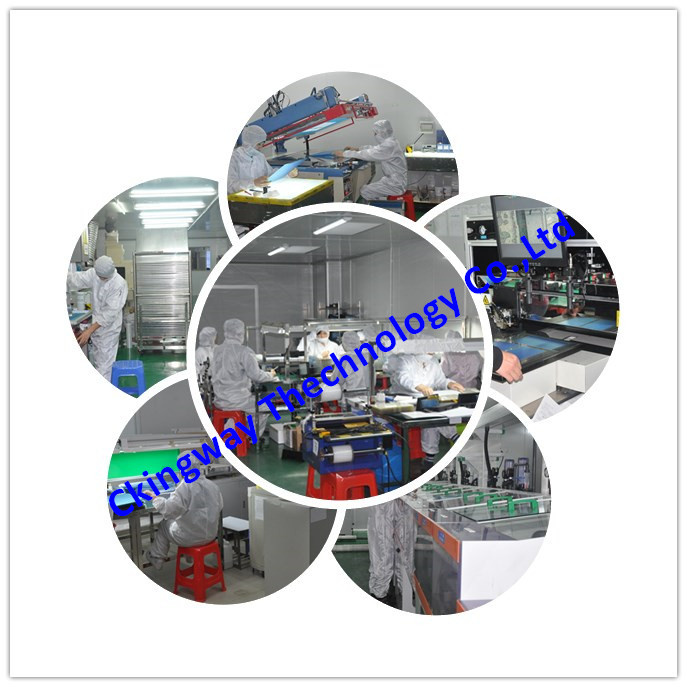

Production Flow
Packing & DeliveryPacking: Individual OPP Bag or Anti Static Bag Packing or Bubble Packing, Put all the goods into the FOAM Box, Outside with ragged bag, Then put it in the Carton, Pack it with tape and seal.
Delivery: 3-5 Days After Received Full Payment.Payment TermsSZTP1208-3.5 LCD Smart Touch Screen For Security for Term of payment:
1.Full payment before delivery
2.Prepay 30% as the deposite,T/T 70% the balance before delivery
3.Prepay 50% as the deposite and mould fee ,T/T the balance before delivery
4.Payment method can be nogotiated
Warranty
About Warranty:
1 Year without damaged by people actions.
FAQ
1.Why Choose Ckingway?
1)Enough industrail experience and involved main markets all over the world.
2)Dedicated and professional sales team will offer you 24 hours online and immediate service.
3)Precise and advanced equipments.
4)High quality and sensitivity.
5)Many kinds of products with all size.
2. What can we do for you:
Custom service is available.
3.What is the lead time of the products?
Samples in stock will be sent within 3 days after payment.
Two to Four weeks for mass production.
4.Payment methods?
T/T and Western union etc.The details of our payment terms is showing above.
5.How long is the warranty period?
About Warranty: Usually 1 Year without damaged by people actions. It depends on different products.
6.What is the products application?
Widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields.
