Stick Ice Cream Lolly Production Line Machine Maker

Stick Ice Cream Lolly Production Line Machine Maker
Price: US $ 80000-180000/Set
Trade Terms: FOB
Min Order: 1/Set
Pay Type: T/T
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity: 15000-18000pieces/Hour
Application: Ice Cream

Product Description

Application

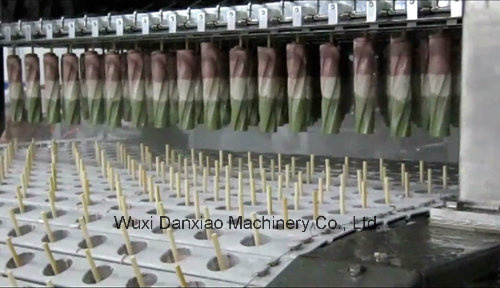

XGJ series Ice-cream bar production is an automatic and multifunctional machine of color ice-cream, which is equipped with cold source freezing system. With technical processes of filling, suction, grouting, stick insertion, mold release (second mold release) and coating, this machine is applicable for continuously production of different jam filling, coating and stick inserted ice-creams. And can finish the production of various special ice-creams when it's equipped with other accessories, like: high consistence vacuum pump, dried fruit adding station, double-color grouting station, swinging grouting station, fruit spraying device etc..
System
This machine adopts PLC control system and touch screen to make it easy for operation. It adopts pneumatic transmission drive as the main equipment power, the PLC control system transmits electrical signal of set procedures to achieve the goal of driving each functional cart and manipulator.
XGJ series Ice-cream bar production line adopts strong circulation of cold & heat exchanging form and uniform compression of saltwater, which greatly speeds up the exchange of cold and heat saltwater and to improve the production capacity. It's essential equipment for large-scale and high-quality ice-cream production.

NO. Parameters Unit XGJ-18
1 Max output Pieces/h 20000
2 Number of moulds dipped into saltwater pieces 220
3 Number of moulds in each row Pieces 18
4 Max outer wall size of the mould(L×W×H) mm 58×32×160
5 Secondary refrigerant Name   Calcium chloride
Density Baume degree 30-32
PH value   8-9
Flow M 3 /h 260
6 Salt Water Pump Power Kw 7.5-15
Flow m 3 /h 280
Head m 10-30
7 Compressed air Pressure Mpa 0.6
Consumption m 3 /min 3
8 Steam Pressure Mpa 0.05-0.6
Temperature °C <130
Consumption Kg/h 100
9 Stick specification(L×W×H) mm 10×2×114
10 Total power Kw 14
11 Machine Dimension(L×W×H) m 15.8×2.2×2.4
12 Weight Ton 10

Wuxi Danxiao Machinery Co., Ltd. is a professional manufacture in the field of ice cream machinery. Our products, especially ice cream extrusion line, ice cream filling machine, stick ice cream machine, ice-cream freezing machine etc, have won good reputation among our customers.

Danxiao are equipped with advanced processing equipments (like CNC lathe), strict testing and inspection standards and has a number of technical experts with years' of manufacturing experiences who can supply strong technical support and enable "Danxiao" to supply series of high quality ice creams machine. Complete quality management system, warm and thoughtful after-sale services always help us provide customers with high-quality products and first-class service and to make each of our equipment to bring our customers with maximum benefit which proved that "Danxiao" is your wise choice.

With decades of experience in designing and manufacturing ice-cream equipments, Danxiao has developed into a leader in ice cream machine industry. However, we still keep researching and developing new products so as to go up to a new stage, and to meet the increasing demands of international market. With the faith of "Fineness & Perfection", Danxiao" desire to cooperate with you for mutual development.
