| Prod Model: |
AUDARY-58/1800-36-SP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Evacuated Tube: |
58*1800mm |
| Header Pipe: |
C12200 Copper, Diamter: 35mm, 1.0mm |
| Heat Pipe: |
Copper Coil, 1.0mm |
| Insulating Layer Of Solar Collector: |
Rock Wool |
| Insulation Layer: |
50mm |
| Manifold Casing Material: |
Aluminum Alloy, 2.0mm |
| Frame Material: |
Aluminum Alloy, 2.5mm |
| Capacity: |
200-500L |
| Outer Tank Shell: |
Color Steel Plate, 0.5mm |
| Angle: |
15-60 Degree |
| Structure: |
Separate Type |
| Pressure: |
Pressurized |
| Interior Material: |
Copper |
| Collector Components: |
Glass Vacuum Tube |
| Certification: |
Solar Keymark, SRCC |
Product Description

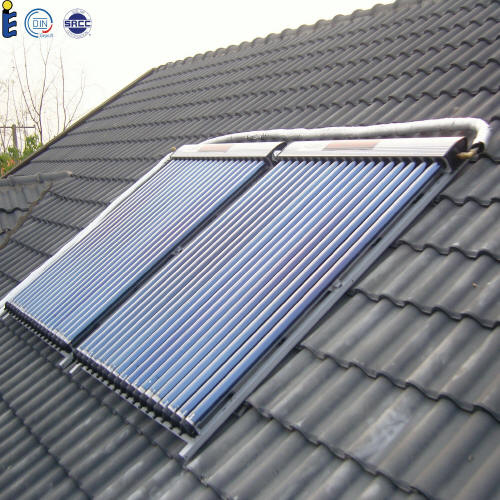

Split Solar Water Heater Professional Manufacturer
Tested And Certified As Solar Keymark European Standard, High Efficient, Stable Performance, It Is Widely Used In Hot Water For Family Bathing And Washing.
With CE, ISO, SRCC And Solar Keymark Certificates
The Pipeline Is Made Of All The Red Copper And Conducted By Heat Transfer Medium Liquid. Water
Can't Flow In Vacuum Tubes And Operated When Confined. The Crust Uses Aluminum-Alloy And Mould Material Of High Strength With Air Flow Design. It Is Furnished In Good Style.
Working Principle:
It Used With Heat Preservation Water Tank, Solar Power Workstation And The Pipe. The Solar Collector Is Consisted Of Super Conducting Vacuum Heat Collecting Tube And Header, So It's More Than 94%. In The Sunny Days Of Spring Or Autumn, Each Collecting Tube Could Make The Water Up To 90 Degrees Centigrade Only In 2.5 Hours.
|
Model |
ADL-58/1800-12 |
ADL-58/1800-15 |
ADL-58/1800-18 |
ADL-58/1800-20 |
ADL-58/1800-24 |
ADL-58/1800-30 |
Weight for
Manifold (KG) |
6kgs |
8kgs |
9kgs |
10kgs |
12kgs |
15kgs |
Packing Size
for Manifold |
1120*130*150 |
1340*130*150 |
1580*130*150 |
1740*130*150 |
2060*170*190 |
2540*130*150 |
Weight for
Heat pipe (KG) |
31kgs |
38kgs |
48kgs |
53kgs |
62kgs |
79kgs |
Weight for
Frame (KG) |
8kgs |
8kgs |
8kgs |
8kgs |
12kgs |
13kgs |
Packing Size
for Frame |
2040*140
*140 |
2040*140
*140 |
2040*140
*140 |
2040*140
*140 |
2080*140
*140 |
2560*140
*140 |
Weight of the
Collector(KG) |
45kgs |
55kgs |
65kgs |
71kgs |
86kgs |
107kgs |
Size of the
Collector(mm) |
2000*1010*200 |
2000*1250*200 |
2000*1490*200 |
2000*1650
*200 |
2000*1970
*200 |
2000*2450
*200 |
|
Insulation |
Rock Wool |
Rock Wool |
Rock Wool |
Rock Wool |
Rock Wool |
Rock Wool |
|
Absorbing Area (square meter) |
1.0152 |
1.269 |
1.5228 |
1.692 |
2.0304 |
2.538 |
|
Max.Operating Pressure(Mpa) |
0.6 |
0.6 |
0.6 |
0.6 |
0.6 |
0.6 |
Max.Title
Angle |
60 |
60 |
60 |
60 |
60 |
60 |
Min.Title
Angle |
30 |
30 |
30 |
30 |
30 |
30 |
Hailstone
Resistance |
≤Φ25mm |
≤Φ25mm |
≤Φ25mm |
≤Φ25mm |
≤Φ25mm |
≤Φ25mm |
Wind
Resistance |
≤30m/s |
≤30m/s |
≤30m/s |
≤30m/s |
≤30m/s |
≤30m/s |
|
Snow load |
470mm thick
snow on record |
470mm thick
snow on record |
470mm thick
snow on record |
470mm thick
snow on record |
470mm thick
snow on record |
470mm thick
snow on record |
|
Note: The air vent and the expansion tank are needed to prevent the pressure drop. |
Jiangsu Audary New Energy Co., Ltd., is specialized in supplying and exporting of all kinds of metallurgy, mineral & energy products including solar water heater, solar collector and water heater which have many years experience in this field.
Rebao solar water heater factory was built in 1995, which was one of the earliest factories specialized in solar water heaters making. To enlarge our market, we established Jiangsu Audary New Energy Co., Ltd in 2008.
Since we began this career, both our workers and stuffs are working hard to make the products better and better, with our efforts, we are well- known for high quality and good service.
Since we do so much, we have got several certificates, such as CE, ISO and SRCC, SOLAR KEYMARK.
Under the leadership of our general manager and engineers, our company will be more prosperity.
Hope we can cooperate with people all over the world. And lead people a Green-energy life.
