Split Solar Water Heater (ZY-3)

Split Solar Water Heater (ZY-3)
Price: Negotiable/Piece
Trade Terms: FOB,CIF
Min Order: 5/Piece
Pay Type: L/C,T/T
Prod Model: ZY-3
Markets: North America,South America,Southeast Asia,Africa,Mid East,Eastern Asia
Collector Components: Glass Vacuum Tube
Pressure: Pressurized
Structure: Separate Type
Interior Material: Stainless Steel
Certification: CCC

Product Description

Feature:
1. Environmental Protection
Adequately use non-pollution and clean solar energy
2. Intelligence
Automatic controller, reliable operation
3. Installation
Install easy and convenient, unified with the building
4. Component of separate system

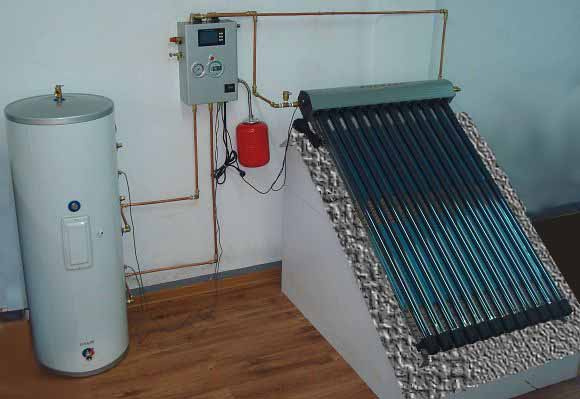

The system consists of three main parts: Heat pipe solar collector, storage water tank and working station system.
5. Working principle
1) When the discrepant temperature of the solar collector and water tank reaches or not reaches the set value, the controller shall start or shut the circulation pump automatically.
2) The circulation pump makes water circulate automatically.
3) In case the temperature of the water tank does not reach Tmax, then start the auxiliary heating device.
6. Product specification:
* Inner tank: Stainless steel (SUS304 2B) Thickness: 1-2mm
* Outer tank: Color steel with 0.55mm
* Insulating layer: Foaming polyurethane Thickness: 55mm
* The number of tube of the collector: 12PCS, 15PCS, 20PCS, 25PCS;
* Water capacity: 100L-500L
* Optional Electric Booster: 1500w
ZHONGYI SOLAR TECHNOLOGY Co., Ltd is located at Shuangfeng Industrial Part, Yuanhua Town, Haining City, Zhejiang, China Where is nearly Shanghai and Ningbo Port. We are a national Hi-tech enterprise and founded in 2009 with total investment of 20 million RMB and more than 5000 square meter area.

At the beginning, we specialize in R&D, manufacturing for solar water heater and solar vacuum tube. As the demand of market and customer, In the year 2011, we had expanded our business line to solar light system and solar pump.

For the solar water heater, Our company had exported more than 30, 000PCS per year to Europe, North & South America, Middle-east and Africa Area, total more than 30 other countries and regions. And especially our solar water heater is sold very well in the Mexico market. Also we can design the solar floor heating system and swimming system as customer's requirements.

We had designed a new solar water heater frame that is very easy install and also the packing size is very small. And we had got the certificate of utility model patent for this new frame in 2013.

For the solar light and solar pump, we just start this line in 2011, but the business grows very fast and sold very well in Africa market, South America and Mild- Middle-east. All products had got the CE and TUV certificate.

OEM&ODM service can be provided by ZHONGYI SOLAR and also customer can sell our own brand"SUN-SEEKER".

ZHONGYI SOLAR regards "reasonable prices, good quality and good after-sales service" as our tenet. We hope to cooperate with more customers for mutual development and benefits. Welcome potential buyers to contact us.
