| Prod Model: |
ADL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Angle: |
45 Degree |
| Collector: |
Vacuum Tubes |
| Outer Tank: |
Color Coated Sheet |
| Inner Tank Thickness: |
1.2mm |
| Insulation Layer: |
55-65mm |
| Frame: |
Galvanized Sheet |
| Vacuum Tubes: |
High Borosilicate Glass |
| Inner Tank: |
Sus304-2b Stainless Steel |
| Structure: |
Separate Type |
| Pressure: |
Unpressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Certification: |
Ce, Srcc, Iso, Solar Key Mark |
Product Description

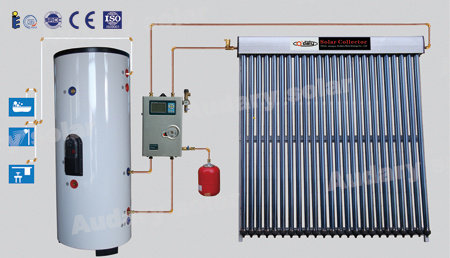

This system is made up of solar collector, water tank and workstation. It is a closed loop solar system. This system is suitable for all climates. It is preferred option for extremely cold areas.
1. It can withstand pressure of tap water when it works, working pressure 0.6 MP.
2. Completely automatic operation, the whole system controlled by the workstation.
3. Collector is separated from the water tank. The tank can be put anywhere of the house, combine with the building perfectly.
4. There is one or two cooper coil exchanger in the tank.
5. Heat the top water instantly; There is no need to wait.
6. Drinking water quality to promote life quality.
7. Back up with electric heater so that in the days without sunshine hot water can also be used.
8. Capacity: 100L, 150L, 200L, 250L, 300L, 400L, 500L.
|
Tank |
|
|
material of inner tank |
SUS 304-2B food-grade stainless steel, 450mm |
|
material of outer tank |
color-coated galvanized steel, 550mm |
|
thickness of inner tank |
1.5mm |
|
thickness of outer tank |
0.6mm |
|
upper coil |
¢ 12*1.0*12(optional) |
|
lower coil |
¢ 12*1.0*15 |
|
electrical heater power |
1.5kw |
|
Insulation layer |
50mm, polyurethane foaming |
|
liter |
200L |
|
|
|
|
Heat Collector |
|
|
Vacuum Tube& Heat Pipe |
high-borosilicate glass, cooper heat pipe(8/14mm) |
|
size of vacuum tubes |
Φ 58x1800mmx20pcs |
|
Absorbsion Area |
1.6 m2 |
|
|
|
|
Work Station |
|
|
Fasteners |
Stainless steel screws. |
|
Sealing ring |
Macromolecule silicone rubber. |
|
others |
P/T valve, electrical heater, magnesium rods, relief |
|
|
|
|
Whole system |
|
|
Heat preservation |
72 hours |
|
Hail resistance |
20-30mm |
|
Max Water Temperature |
Can reach at least 95 degree |
|
Absorption Rate |
≥ 0.95± 0.02 |
|
Emission Rate |
≤ 0.20± 0.02 |
|
Vacuum Tightness |
P≤ 5.0*0.0001Pa |
|
Idle sunny property parameres |
Y=220-260. /KW |
|
Total Weight |
161KGS |
|
Certifications |
Solar Keymark, SRCC, SGS, CE, ISO9001 |
|
Warranty |
5 years |
Jiangsu Audary New Energy Co., Ltd., is specialized in supplying and exporting of all kinds of metallurgy, mineral & energy products including solar water heater, solar collector and water heater which have many years experience in this field.
Rebao solar water heater factory was built in 1995, which was one of the earliest factories specialized in solar water heaters making. To enlarge our market, we established Jiangsu Audary New Energy Co., Ltd in 2008.
Since we began this career, both our workers and stuffs are working hard to make the products better and better, with our efforts, we are well- known for high quality and good service.
Since we do so much, we have got several certificates, such as CE, ISO and SRCC, SOLAR KEYMARK.
Under the leadership of our general manager and engineers, our company will be more prosperity.
Hope we can cooperate with people all over the world. And lead people a Green-energy life.
