| Prod Model: |
JJL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Main Parts: |
Solar Collector,Water Tank,Work Station |
| Product: |
Split Solar Hot Water Heating System/Solar Water |
| Tank Capacity: |
100L,150L,200L,250L,300L,400L,500L,1000L |
| Solar Collector Manifold: |
Aluminum Alloy 2.0mm Outer, Copper Chanel Inner |
| Solar Collector Vacuum Tube Dimensions: |
58mm X 1800mm, Three Target Vacuum Tube |
| Solar Collector Stand/Support/Bracket: |
SUS201 or Aluminum Alloy 1.2mm |
| Solar Inner Water Tank Material: |
SUS304-2b |
| Solar Outer Water Tank Material: |
Galvanized Steel |
| Copper Coil Size: |
12mm, Thickness1.0mm |
| Solar Pump Station: |
Wilo Pump, Controller, Temperature Sensor |
| Max. Capacity: |
>200L |
| Structure: |
Separate Type |
| Pressure: |
Pressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Composition: |
Tank Insulation |
| Certification: |
CCC |
Product Description

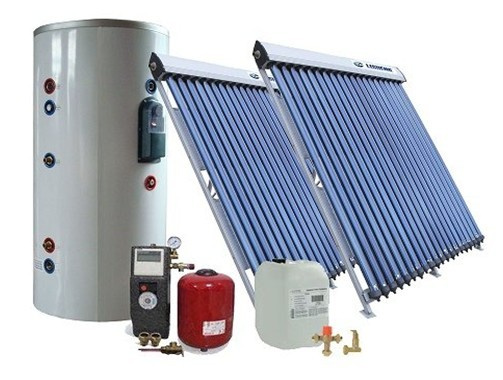

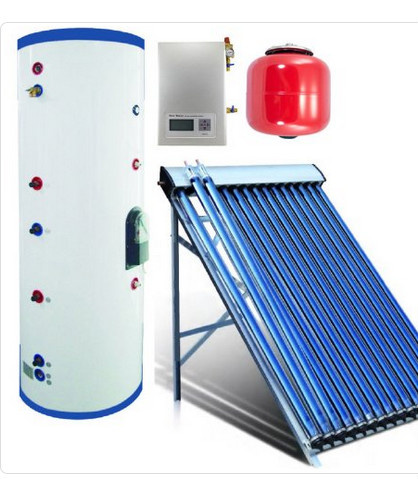

Split Solar Hot Water Heating System/Solar Water HeaterWe manufacturer of split solar hot water heating system more then 15years in China.Main products:non pressure solar water heater,high pressure solar water heater,prea-heated solar water heater,heat exchange solar water heater,heat pipe solar collector,non pressure solar collector,solar manifold,split solar water system etc.Components:1.Collectors

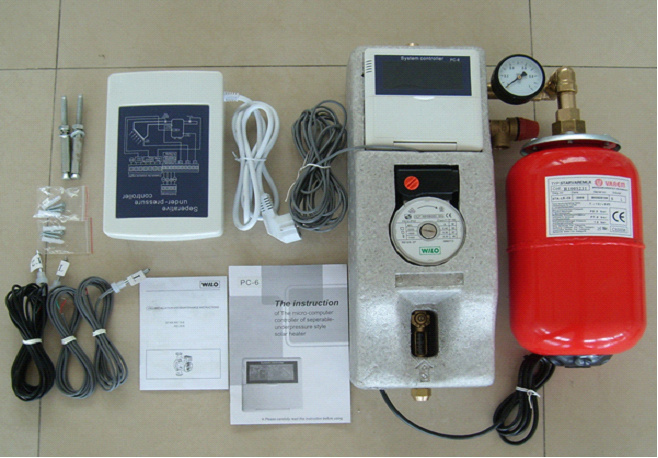

2.Solar pump station
3.Controller with sensors
4.Expansion tank
5.Circulation pump
6.Check valve,safety valve
7.Manometer
8.Brass connector
9.Mounting hardware
10.Piping
Material:Water tank:
1)Water tank (interior): stainless steel 304-1.5mm/2.0mm
2)Copper coils(single): dia12mm,thickness 1.0mm, length 15m/pcs
3)Tank capacity:150L,200L,250L,300L,400L,500L
Heat pipe solar collectors:
1)Manifold:stainless steel/aluminum alloy 1.5mm
2)Vacuum tube dimensions:58mmx1.8m,47mmx1.5m
Work station:SP106
Work Pressure:6 bar
Electrical Heater:High grade tube with dry-heating safeguard (1.5kw-3kw,220v,50Hz)
Frame:Stainless steel/aluminum alloy
Split Solar Hot Water Heating System
| Model | Dia of tube | Length of tube | Quantity of tubes | Capacity (L) |
| JLF-1.8M/10P | 58mm | 1800mm | 10 | 100 |
| JLF-1.8M/15P | 58mm | 1800mm | 15 | 150 |
| JLF-1.8M/20P | 58mm | 1800mm | 20 | 200 |
| JLF-1.8M/30P | 58mm | 1800mm | 30 | 300 |
| JLF-1.8M/40P | 58mm | 1800mm | 40 | 400 |
| JLF-1.8M/50P | 58mm | 1800mm | 50 | 500 |
