Split Pressurized Solar Water Heater with Double Coil

Split Pressurized Solar Water Heater with Double Coil
Price: US $ 1000-1300/Set
Trade Terms: FOB
Min Order: 1/Set
Pay Type: T/T,Western Union
Prod Model: ILS2-5830H1-304/300-106/12
Markets: North America,South America,Southeast Asia
Use: Bathroom, Heating Water, Swimming Pool
Max. Capacity: >200L
Structure: Separate Type
Pressure: Pressurized
Interior Material: Stainless Steel
Collector Components: Glass Vacuum Tube
Certification: ISO9001
Composition: Heat Pipe Solar Collector,Work Station, Water Tank

Product Description

Split Pressurized Solar Water Heater with double coil

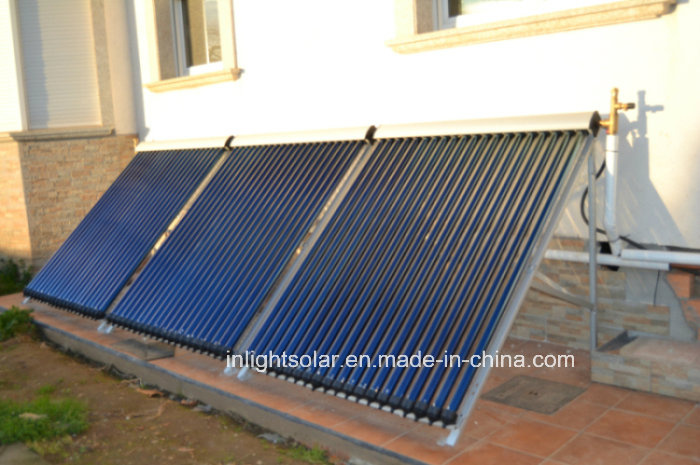

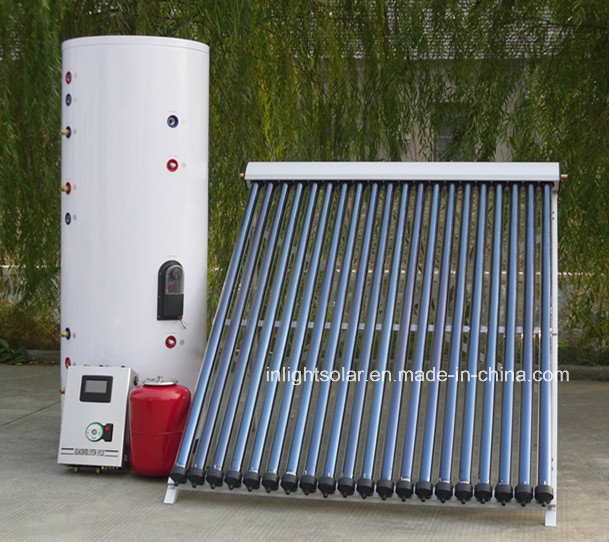

This system is made up of solar collector, water tank and workstation. It's a closed loop solar system. This system is suitable for areas with questionable water quality and all climate conditions. It's preferred option for extremely cold areas.

1. It can withstand pressure of tap water when it works, working pressure 0.6MP.
2. Completely automatic operation, the whole system controlled by the workstation.

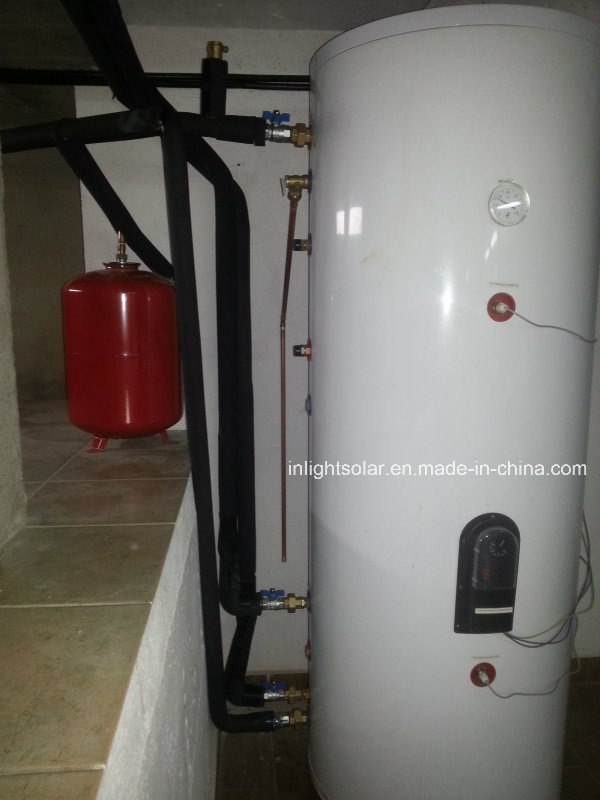

3. Collector separated with the storage tank. The tank can be put anywhere of the house, combine with the building perfectly.
4. There is one or two copper coil exchanger in the tank.
5. Heat the top water instantly, there is no need to wait.
6. Drinking water quality to promote life quality.
7. Back up with electric heater so that in the days without sunshine hot water can also be used.
8. Capacity:100L,150L,200L,250L,300L,400L,500L, 800L,1000L.





Accessories:

1) Electrical heater, as an auxiliary heating element in case of raining or snowing days so as to ensure a continous hot water supply



2) Anode magnesium Bar: soften hard water in system so as to protect storage tank and copper coil from water scale effectively



3) T/P valve, Stainless bolts & nuts, anti-aging rubber seal, pipe holder make their life as long as other parts of the system







Warranty:



3 years international responsibility for integrated system exchange and 15 years for glass vacuum tube compensation due to original quality problems



Technical Parameters

        Heat  Pipe

     Solar Collector

 Spec.(mm)

  Φ47×1500    Φ58×1800

 Tube (pcs)

  12 / 15 / / 20 / 25 / 30

 Vacuum Tube

  Borosilicate glass, red copper heat pipe, aluminum fin

 Manifold

  Copper flow passage, PU insulation, Aluminium alloy shell

       Water Tank

 Capacity

  100 ~ 500L for storage tank

 Inner Tank

  Food-grade stainless steel SUS304-2B 1.2-2.0mm

 Copper coil

  High-quality red copper coil Φ12X1.0mm

 Insulation

  High-density polyurethane integrated foam-forming 50mm

 Tank shell

  Color steel plate

 Collector  Bracket

 Spec.(mm)

  1.5 ~ 2.0mm in thickness

 Material

  Aluminium alloy plate

   Accessories

 Workstation system, Electric heater, E-Parts box, thermostat, Switch,

 Anode magnesium bar, T/P valve, Relief valve, dustproof ring

  Working Pressure

 ≥ 6 bar

   Hail Resistance

 Φ25mm diameter
