Prod Model: |
TKA model |
Markets: |
South America,Eastern Europe,Southeast Asia,Oceania,Western Europe |
Size: |
800*235*185mm |
Weight: |
40kg |
Type: |
Inverter Air Conditioner |
Usage: |
Room |
Indoor Machine Noise: |
24-35dB |
Certification: |
GS |
China Energy Efficiency Standard: |
Level 1 |
Cooling/Heating: |
Cooling/Heating |
Power Source: |
Electrical |
Power Type: |
DC |
Condition: |
New |
Capacity: |
9000-24000BTU |
Product Description
| Model | 9000btu | 12000btu | 18000btu | 24000btu |
Rated Capacity | Cooling | W | 2600(1400-3100) | 3500(1500-3601) | 5200(2400-5800) | 7000(2600-7500) |
Heating | W | 2700(1300-3000) | 3600(1150-3600) | 5300(2400-5800) | 7300(2350-8100) |
Dehumidifying | Kg/h | 0.8 | 1 | 1.6 | 2.2 |
Rated Power Consumption | Cooling | W | 640(240-1180) | 1100(190-1300) | 1700(350-2100) | 2000(320-3200) |
Heating | W | 780(330-850) | 1008(280-1200) | 2100(500-2250) | 2540(460-3700) |
Rated Running Current | Cooling | A | 3.7(1.3-5.2) | 6.2(1.0-6.9) | 8.5(2.0-9.5) | 109(1.6-13.5) |
Heating | A | 3.6(2.2-3.9) | 4.8(1.5-5.8) | 10(2.5-11.5) | 11.2(2.4-16.5) |
Electricheating power Power | W | / | / |
| / |
Max. Input Power | W | 1500 | 1500 | 2250 | 3800 |
Max. Input Current | A | 7 | 7 | 11.5 | 17 |
EER Cooling | W/W | SEER5.3 | SEER5.7 | SEER5.60 | SEER5.65 |
COP Heating | W/W | SCOP3.81 | SCOP3.81 | SCOP3.82 | SCOP3.80 |
Power supply source | V/Ph/Hz | 220-240V~/50HZ | 220-240V~/50HZ | 220-240V~/50HZ | 220-240V~/50HZ |
Refrigerant |
| R410A | R410A | R410A | R410A |
Refrigerant Charged | g | 870 | 1000 | 1750 | 2100 |
Max. Discharge Pressure | Mpa | 4.15 | 4.15 | 4.15 | 4.15 |
Max. Suction Pressure | Mpa | 1.15 | 1.15 | 1.15 | 1.15 |
Air Flow Volume | m3/h | 630 | 630 | 920 | 1200 |
Noise level | dB(A) | 43 | 43 | 52/60 | 56 |
Noise level | dB(A) | 53 | 53 | 60/65 | 61 |
Indoor unit weight (Net ) | Kg | 10.5 | 10.5 | 12 | 19 |
Outdoor unit weight (Net ) | Kg | 31 | 31 | 46 | 60 |
Dimension | Packing Type |
| NO | NO | NO | NO |
Net Dimension | mm | 760×540×260 | 760×540×260 | 800×690×300 | 902×795×332 |
Packing Dimension (WidthxDepthxH) | mm | 880×600×370 | 880×600×370 | 940×750×420 | 1030×860×430 |

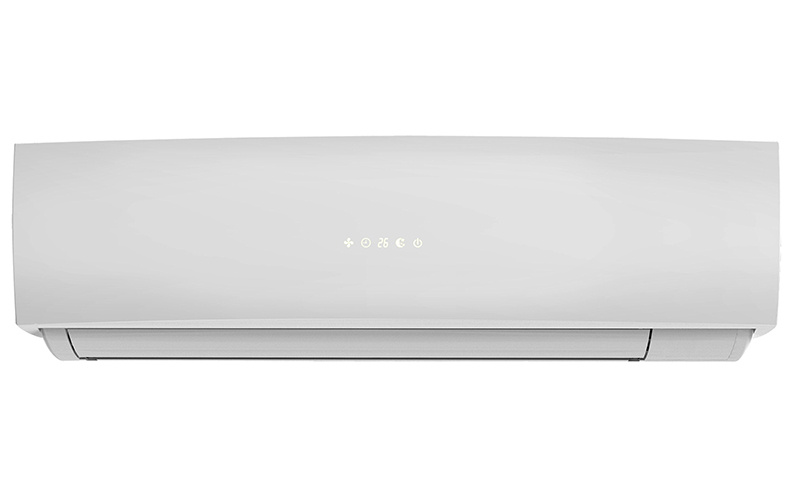

SCOP 3.8 European new energy standard Air Conditioner, with high efficiency and Eco-friendly.
Established in 2002, Ubase has enjoyed a decade exportation to overseas markets, with a variety of exporting commodities of Ubase holding factories, including air conditioner, refrigerator, freezer, showcase, washing machines and electrical fan etc., now Ubase's annual sales value reaches 80 million and exporting market covers more than 82 countries in Europe, Africa, Middle-East, Asia, CIS, south America, Caribbean islands and Australian area.

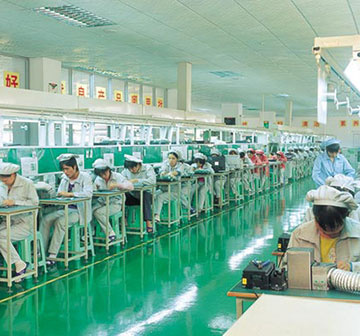

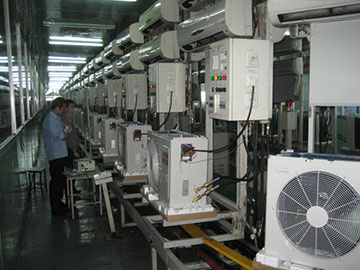

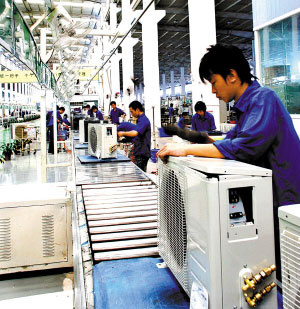

As one of main manufacturing and exporting companies in China, Ubase owns high-grade manufacturing base with advanced equipments and vigorous employees, which contribute to good quality products and the best service to overseas customers. Now Ubase is advocating new technology and striving for more energy-saving and environment friendly products, we are expecting to be one of leading companies in China with endless efforts.
We do believe: Ubase is the base for your successful business.
