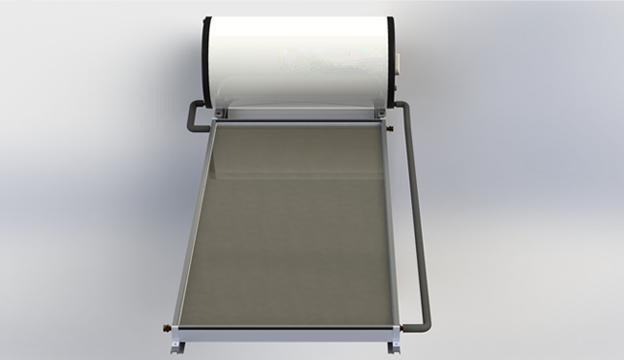

Solar Water Heater
| Price: |
US $ 100/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max. Capacity: |
>200L |
| Structure: |
Separate Type |
| Pressure: |
Unpressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Flat-plate |
| Composition: |
Tank Insulation |
| Certification: |
ISO9001 |
Product Description
| Bitmap Bitmap | Frame | Material | aluminum |
| Standard | 6063/T5 |
| Thickness | 1.0mm |
| Sealant | Material | Silicon |
| performance | injection,uvioresistant |
| Glass | Material | The ultra white tempered glass |
| Transmissivity | 91% |
| Thickness | 3.2mm |
| Insulation | Bottom | Material | PU 30Kg/m3 |
| Thickness | 30mm |
| Around | Material | PU 45Kg/m3 |
| Thickness | 25mm |
| Solar collecting area | 1.83 |
| Thermal performance of light indicator | Plate surface coating | From Germany |
| Coating technology | Alternative magnetron sputtering |
| Aabsorption rate | α≥ 0.93(AM1.5) |
| Eemissivity | ε=0.080(80ºC±5ºC) |
| Physical Specifications | Size(mm) | 2000X1000X80(L×H×Th) |
| Net(kg) | 30 |
| Total(kg) | 33 |
| Testing pressure | 1.0 Mpa |
| working pressure | 0.6Mpa |
| combination pipe | Manifold pipe material | Tp2 red copper |
| Manifold pipe size(mm) | Φ22X0.8 |
| Rack pipe material | Tp2 red copper |
| Rack pipe size(mm) | Φ10X0.5 |
| Waterway Qty | 7(Vertical) |
| The collector pin materila | H58 copper |
| Collector plate socket thread size | 1/2″ |
| Standard | GB/T 6424-2007 |
| Water volume | 100L |
Sunrise construction engineering Co., Ltd is specialized in Modular housing, construction works, complete sets of equipment, aluminum mould doors, windows and new hi-tech products and import/Export of bulk raw materials.
The company products are exposed to Europe, Africa, Middle East, Middle and south America etc. Having accumulated rich experience in international project and international trade in long range of practice the company has trained highly educated compound professionals proficient in international trade, steel structure project, project bidding and other major complex projects. In working they are able to keep a smoothly connecting channel and friendly cooperation relationship with government authorities and industry associations and supply a speedy and considerate service so that the risks of total project investment and procurement contract is significantly reduced.
Sunrise construction engineering Co., Ltd abides by international trade practices: Conforming to contract terms, Keeping business promise, Supplying first-class service, Sticking to mutually beneficial and win_win effects. By the trade ties, it has got tight connection between China and International market, and set up extensive cooperation with international business community, industry technology and financiaI sectors.
Sunrise construction engineering Co., Ltd is willing to sincerely cooperate with friends from home and abroad in all walks of life and achieve common development with them.
