| Prod Model: |
CK6432B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Metallic Processing Machinery: |
Processing Machinery |
| Process Usage: |
Metal-Cutting CNC Machine Tools |
| Performance Classification: |
Economical CNC Machine Tools |
| Numerical Control: |
NC |
| Movement Method: |
Contour Control |
| Control Method: |
Closed-Loop Control |
Product Description

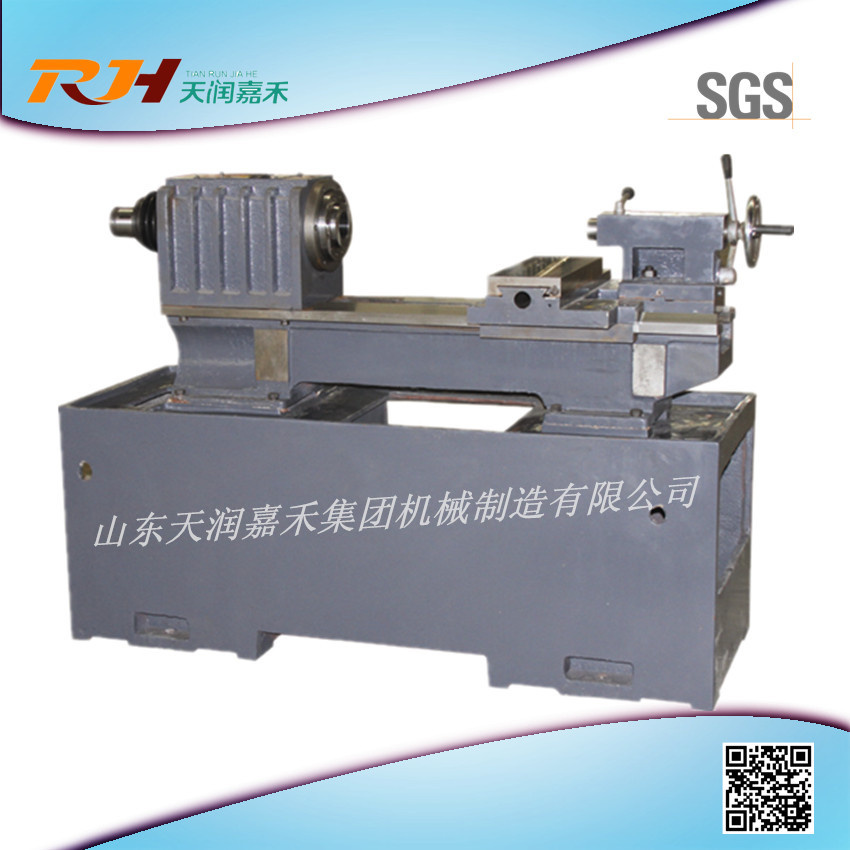

I. Model
CK6432B
II. Type
Semi-finished Product/CNC Machine/CNC Lathe
III. Application
This cnc machine part could be widely applied for the machinery of molding, automobile, motor, petrochemical industry, bearing, fastener, gas pipe and other high precise pieces which are effective equipment in tool process.
IV. Technical Parameters
As below Table
V. Certification
ISO9000/SGS (report available)
CE/FCC, etc acceptable based on customers' request
VI. Main Markets
In 2013,
70% for domestic, abt. 300 sets/year,
30% for oversea, abt. 120 sets/year,
To Southeast Asia, South America, Middle East and Africa
VII. After-sales Service
24/7 be ready
VIII. Group Keywords
A group with 12 subsidiaries separately in 9 places
Thousands of members in all
Respect the spirit of unity, creativity and execution
Headquarter in Tengzhou City (cnc machine center) and Sales office in Qingdao City
Major in Real Estate and also engage in below business
1- Production and Sales of CNC Machine (most important)/WPC/Fertilizer
2- Import and Trading of Coal/Starch
IX. Package Show
1- Fixed inside with irons to guarantee the position of every component;
2- Covered by layers of plastic films
3- Fastened on the pallet
|
Main Technical Parameter of CNC Machine Part |
|
Item |
CK6432B |
|
Max. Workpiece Tactile Diameter on lathe bed |
D 360mm |
|
Max. Workpiece Process Diameter on lathe bed |
D 320mm |
|
Max. Workpiece Tactile Diameter on carriage |
D 150mm |
|
Max. Workpiece Process Diameter on carriage |
450/700mm |
|
Max Z/X Travel on carriage |
500(750)mm/180mm |
|
Form of Spindle Head |
A2-6 |
|
Spindle Go-bore Diameter |
D 60mm |
|
Spindle Taper |
Morse6# |
|
Rapid Feed on Axle X |
6m/min |
|
Rapid Feed on Axle Z |
8m/min |
|
Max. Spindle Speed |
2000rpm |
|
Taper of Tail Stock |
Morse4# |
|
Max Travel of Tail Stock |
80mm |
|
Spindle Motor Power |
4KW |
|
Overall Dimensions(L/W/H) |
1870/2120×1360×1520 |
|
Machine Weight |
1590/1790kg |
Shandong Tianrun Jiahe Industrial Group of Co., Ltd was actually established in 2002 with initial investment over USD16 Million.
After over 10 years' development, the group have founded 12 sub companies including real estate company, CNC machine plant, wooden plastic material plant, trade companies, building material plant and so on.
CNC machine is one of our main products with a manufacturing area more than 10, 000 square meters. Our products cover the range of vertical machining center, horizontal machining center, bare machine (semi-product), milling machine, drilling machine, grinding machine, gantry crane machine, etc which could be applied for various fields.
All the time we focus on high quality, competitive price, better service and unique techniques.
Give us a chance to cooperate with you, and we will feed you back more.
