Singden Conference System Main Unit with Record Audio Function (SC3180)

Singden Conference System Main Unit with Record Audio Function (SC3180)
Price: US $ 1-999/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Money Gram
Prod Model: SC3180
Model: Sc3180
Power Standard: <120W
Frequency Response: 20--25000Hz(+-3dB)
Snr: >80dB(a)
Dynamic Range: >90dB
Thd: 80-20000Hz(3dB) Smaller Than 0.1%At1kHz
Channel Crosstalk: >80dB
Display: 128*64LCD LCD
Dimensions: 482X350X66mm
Weight: 4.5kg
Type: Video Conferencing System
Video: Video
Composition: Lcd Display
Communication: Wired
Pointing Feature: Hypercardioid
Color: White

Product Description

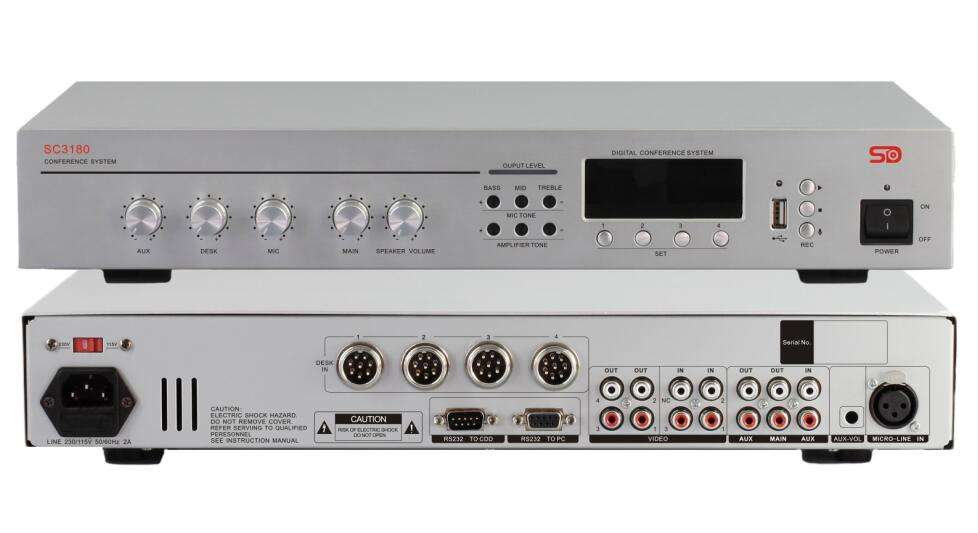

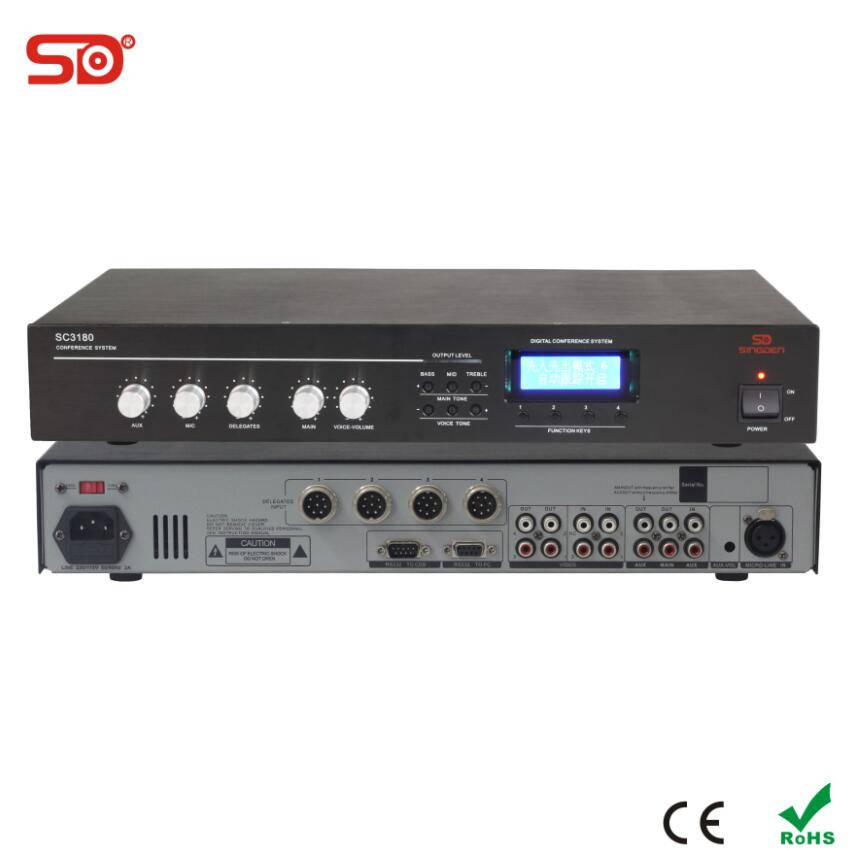

SC3180 SINGDEN conference system main unit with record audio function (SC3180)


Description:

SINGDEN wired digital conference system main unit-SC3180 uses high power transformer, wide voltage input, and automatically adapt to variety of different voltage input in the world, and sufficient power, Standard conditions, a main unit can be installed 90 microphone unit;Main unit equipped with three of a video matrix, in the off-line condition, it still able to achieve the automatic camera tracking function; Built-in DSP audio processing module, In

conference system

the case of the bad condition, DSP module will be turned on to prevent howling to achieve the perfect sound. The Standard 2U housing for 19" rack mounting, Firm and reliable installation.

By using SINGDEN originated proprietary design, SINGDEN SC3180 Fully Digital Congress System revolutionizes conference systems technology by incorporating both the latest fully digital technologies. Furthermore, with perfect integration of SINGDEN Conference Sign-in System and Intelligent Central Control System, SC3180 takes the leadership in providing comprehensive and efficient digital conference system solutions. SINGDEN conference system is not only reliable quality, data security, simple operation, and easy system maintenance, etc., but also good scalability, and achieves a perfect seamless connection to central control system .System can accomplish digital voting system, video tracking system, digital discussion system, mainly for small and medium-sized meeting.

Characteristics:

•      System main unit support 90 discussion microphone, each cable up to 100 meters

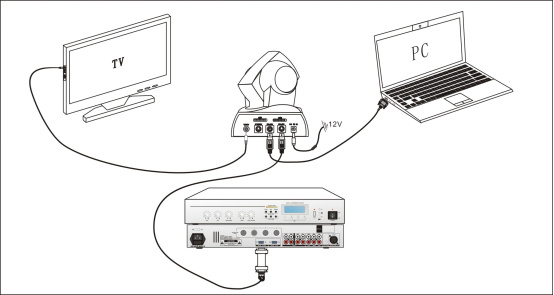

•      Flexibly support video tracking system, digital discussion system

•      Built-in 3 into 1 video matrix, which can be directly connect 1~3 cameras.

•      A variety of input and output interfaces, the main input deck input and front output, auxiliary output and audio output interface

•      Built-in DSP audio processing module, can prevent a limit screaming

•      100--230V AC power supply, inside machine adopts high-power ring transformer, supply enough work Rate

•      In addition, the main unit will supply power to discuss unit, the output voltage is 24 V DC, what a safe voltage range to ensure safety is.


Offline functionality:

•      Support for three cameras camera tracking;

•      1 to 6 microphones can be active at the same time;

•       Selectable mode: AUTO mode, FIFO mode;

•      Built-in DSP processor for acoustic feedback prevention•      Two independent medium and low sounds compensation, to achieve perfect sound.

Connected to the computer with the software, In addition to all of this, also has the following features:

 •      Conference management functions by the operator by clicking the conference unit icons approval or reject to speak.

OPEN Mode, APPLY mode, LIMIT mode

•      Video recording function. (Need to add audio and video capture card recording)

•      Speaking time limit can be preset for conference units

•      VIP microphone, Offline condition, system support 10 pcs VIP, VIP microphone is controlled by itself when we turn on another chairman unit microphone, they can't affect each other.


Technical parameters:

Model SC3180

Power supply America, Japan: AC 110V~130V 60Hz

Asia, Europe: AC 220V~240V 50Hz

Power Standard

<120W

Frequency response

20--25000Hz(+-3dB)

SNR

>80dB(A)

Dynamic range

>90dB

THD

80-20000Hz(3dB)

Smaller than 0.1%AT1KHz

Channel crosstalk

>80dB

Display

128*64LCD LCD

Temperature/Humidity

-20~60°C/0-95%(waterproof prevent rain, dustproof, waterproof, salt fog)

Dimensions

482x350x66mm

Weight

4.5KG

Packaging & Shipping

Price term

EWX price or FOB price

Certificate

CE ,ROHS , TUV , ISO4043

Shipping method

By DHL ,UPS,TNT ,Fedex ,Almost all express shipping methods service if small order,

 and we can book space and get you the earliest date of delivery by sea if bulk order

If there is any unhappy occations with the shipping, we will try our best to solve it with

the shipping agent and ask for compensation.

Payment terms

By T/T, Western Union , Paypal , Escrow Payment.

Sample time

3-5 working days

Production time

5 working day depend on the quantity

packing

1. each microphone in bubble bag, then in export carton, to save freight cost;

2. each microphone in bubble bag, then in inner box, then in export carton.

Warranty

36 MONTHS

After sells service

If there is the problem with the product, firstly you need send the picture or the video to us,

then let us make sure what's problem about the product, if the problem can use the part to

 solve ,we will offer you the replacement for free Within 1 year.

FAQ

1. Q: Are you Manufacturer or Trading company?

  A: We are the manufacturer have more than 12 years experience

2.Q: Do you have any qualification certificate?

    Yes, we have the CE and RoHS certificates, and letters patent of SINGDEN own design products, you can contact with sales to check the certificates.

3.Q: Can we visit your factory

 A: yes, warm welcome to visit our factory anytime,Our address as below for your reference

 Address:Wufansha industrial park,Nanhai district,Foshan,China

4.Q : What's your main products?

     Conference system and simultaneous interpretation system

5.Q: How many years of warranty of your products

  A: three years on system component parts and unlimited free technical support.

6. Q: If there is any problem about your products, should we have a refund or replacement.

  A: Don't worry about the quality of equipment, because SINGDEN do the complete inspection and test before delivery.

     If there is really some problem about the product, contact with the sales, SINGDEN engineer team will help you to resolve your problem immediately by instruction; if the problem can not be resolved at your side, SINGDEN will send a new parts for replacement during warranty period, and you can change the parts with only screw driver, parts free, freight collect.

7.Q: What is your delivery time?

     3-7 work day

Company Information



1. About us
As the leadrunner in Chinese conference system industry, SINGDEN is global provider of complete conference system solutions ,including conference discussion system, voting system, simultaneous interpretation system, attendance registration system, and multimedia control system and conference management software.

SINGDEN prides itself on its independent innovation strategy and product differentiation strategy ever since its inception, with independent intellectual property rights for its wide range of products. The company has obtained a number of patented technologies including utility model patents and patent. And successfully applied for high-tech enterprises in Guangdong Province.

2. Why Choose us
1.10 years experienced, service to international conferences in 40 countries,
2.11 Patents, CE & ROHS certificated,
3.one hour reach Guangzhou airport,
4.keep good quality and competitive for global valued customers.
5.main products cover conference system, simultaneous interpretation system and gooseneck microphones.
6.Small MOQ.
7.OEM/ODM Accepted.

3. Certifications
Through our long term effort, we have created our own brand and reputation. In the spirit of "costumer first, quality first", we are seeking on to be famous in the world of conference system supply.


Contact us:

Telephone:86-0757-81810859
Mobile Phone:86-13727354363
Fax:86-0757-88554279
Address:Wufansha industrial park,Nanhai district,Foshan,China
Web: http://www.singden.com/en/index.html

Address:Wufansha industrial park,Nanhai district,Foshan,China
Web: http://www.singden.com/en/index.html

Foshan Singden Technology Co., Ltd. Established in 2003, provides completes conference system solutions of advanced electronics conferences and congress products to the global meeting industry on a permanent or rental supply basis, The factory has a number of professional, high quality and unique and innovative talents.

We believe that we can offer all our customers the best products and services, after years of development, we has several sets of audio test equipment, with a standard (1*1*1m) no residual sound box. Independent of the sample making equipment, a complete design and production capabilities, support a variety of customer needs, OEM / ODM. In 2012, first to introduce product testing system, product aging test, and vibration test, overvoltage, to ensure the quality of the product. SINGDEN will provide complete system solutions for the global meeting industry always.

As the lead-runner in Chinese conference system industry, SINGDEN is global provider of complete conference system solutions, including conference discussion system, voting system, simultaneous interpretation system, attendance registration system, and multimedia control system and conference management software.

SINGDEN prides itself on its independent innovation strategy and product differentiation strategy ever since its inception, with independent intellectual property rights for its wide range of products. The company has obtained a number of patented technologies including utility model patents and patent. And successfully applied for high-tech enterprises in Guangdong Province.

After years of development, the accumulation of many years of OEM / ODM experience, "SD" trademark officially registered in 2012, as a unified trademark of the company's global sales, the latest technology for product jointly developed a whole new generation of digital conference system, a formal join the ISO 9001: 2008 international quality system certification, some products have passed CCC, CE and FCC, SINGDEN ships to more than dozens of countries, and has completed thousands of important projects worldwide, with diversified portfolio of endusers including governments, parliaments, convention centers, courthouses, military forces, hotels, schools, hospitals, churches and corporations.
