Shenzhen Straw Technology Co., Ltd >> Shenzhen China 10.2 Inch Capacitive Touch Screen

Shenzhen China 10.2 Inch Capacitive Touch Screen

Shenzhen China 10.2 Inch Capacitive Touch Screen
Price: US $ 20/Piece
Trade Terms: FOB
Min Order: 100/Piece
Pay Type: L/C,T/T,D/P,Money Gram,Western Union
Prod Model: DC-CTP10001
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Screen Size: 5-15 Inches
Aspect Ratio: 16:9
Application: Public Information Inquiry System
Screen Type: Capacitive
Customized: Customized

Product Description

Shenzhen China 10.2 Inch Projected Capacitive Touch Screen G+F


 Specification
1.TP Structure:Glass+Sensor Film
2.Light Transmission:85%
3.Surface Hardness:≥6H(Pencil)
4.Operating Temperature:-25ºC~+65ºC
5.Storage Temperature:-30ºC~+80ºC
6.Life Time:>35000000 times
7.General tol:±0.2mm
8.Screen Ratio:4:3  16:9  16:10
9.Operating Humidity:45-85%PH
10.Input Method:Finger or Touch Pen
11.Response Time:≤10ms
12.Type:Capacitive Touch Digitizer
13.Warranty:12 Months
14.Sample order:Accept
15.Products comply with RoHS standard.

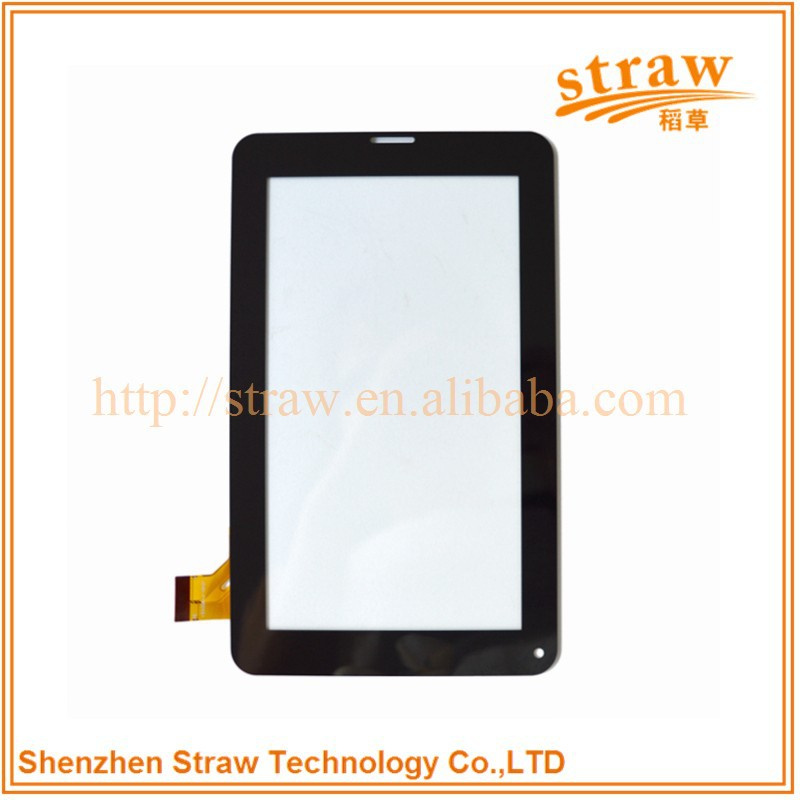

Product Picture

Structure & Operating Principle:

Capacitive  touch screen is a piece of 2 layer of compound glass with double side transparent conductive coating that conducts a continuous electrical current across the sensor.

There is electrode pattern printed along the edges distributes a low voltage filed over the conductive layer.

The human body is also an electrical device which has stored electrons and therefore also exhibits capacitance.

When a finger touches the screen and draws a minute amount of current to the point of contact ,creating a voltage drop.

The current flow from each corner is proportional to the distance to the touch point. During a touch ,capacitance forms between the finger and the sensor grid. The touch location is calculated from the changing electrical characteristics of the sensor grid.

 Applications:
