| Prod Model: |
SH-PVC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Temperature Rating: |
90-105 Degree Centigrade |
| Nominal Voltage: |
125V-300V |
| Structure: |
Conductor Insulator |
| Product Certification: |
UL1285 UL1080 UL1137 UL1465 UL1796 UL1471 |
| Colour: |
White or You Choose |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Heating |
| Insulation Material: |
Rubber |
| Certification: |
RoHS |
| Conductor Material: |
Alloy |
| Brand: |
Senphus |

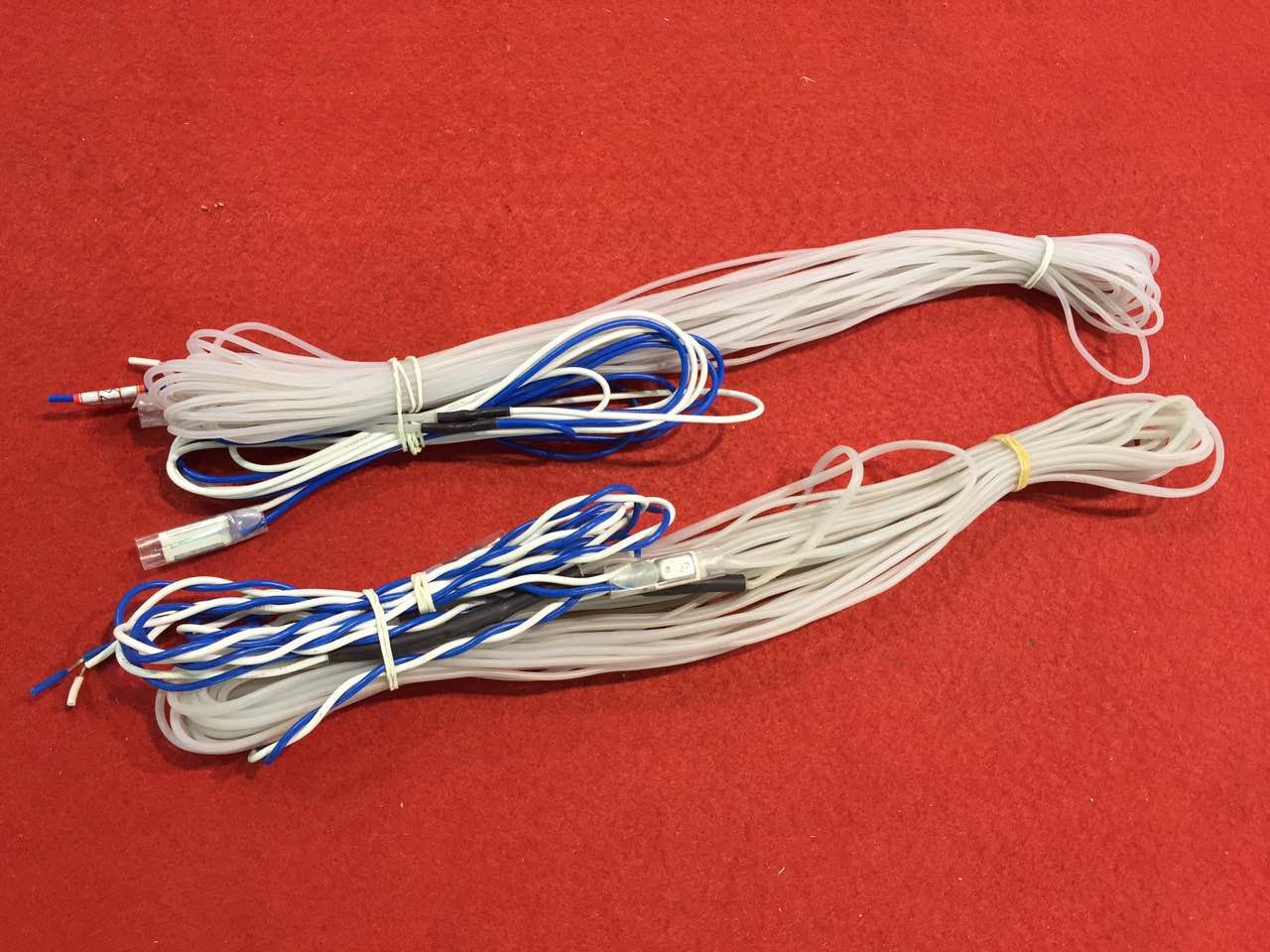

Product Description
USE:
The product has good electrical insulation, softness, heat conductivity, widely used in refrigerator defrost, medical heat preservation, prevent freezing, heating, etc., such as rice cookers, refrigerators, refrigerator, massager, electric blanket, cushion, etc.
There are three main models PVC wires:
A, SH-PVC
B, SH-BPVC-15
C, SH-2PVC-20
however, their technical parameter is almost same.
Our Advantages:
1).We are a professional heating wire manufacturer,we have 13 years experience making the heating wires,OEM/ODM orders are always welcome.
2).High quality. All of our wires and cables have UL approval.
3)We have international standard quality inspection system.
4)We got ISO9001:2000 quality management system certificate.
5)We have a best service team and will provide you the best service.
6)Experienced technical team.
7)Welcome to visit our factory at any time.
item |
performance index |
instruction |
insulation PVC |
tensile strength |
≥ 1.05kg/mmsq |
UL1581 |
elongation |
≥ 100% |
minimum average thickness |
≥ 0.50mm |
|
Finished wire |
hot deformation test |
≤ 50% |
UL standard |
Spark Test |
no spark-over |
6.0KV/0.15sec; |
conductor resistance |
nominal value+10%/-5% |
resistance scope
|
1--10000 ohm/m |
O.D. of finished product |
3.0+/-0.15mm |
other O.D. are optional. |
length per coil |
100---500m |
Jiangyin Senphus Electrical Material Co., Ltd is a new Hi-tech enterprise of heating alloy, heating cable/mat, heating wire, silicone rubber heater, drum silicone rubber heater, thermostat, which is engaging in R&D, manufacture and sale.
We have our own alloy smelting factory, possessing first-class production and advanced research facilities, so that we guarantee the top quality of our products. We have already passed ISO9001 quality management system and achieved the examination report of National Center for quality Supervision & Test of Electric Wire & Cable, and gained the European Union CE certification, UL certificate, GS Certificate, electromagnetic radiation certification, SGS and REACH certification.
Heating cable/wire and temperature controller system are widely used in wind power blades, construction heating, pipeline heating, outdoor snow melting, soil heating field and so on. Silicone rubber heater are widely used in electrical household appliance, spaceflight, petroleum, metallurgy, military project, chemical, electric power, medical appliance, mechanism, outdoor communication, automobile, etc. Industry.
Our products have been exported to America and Europe, Africa, Southeast Asia, like USA, Canada, England, France, Holand, Poland, Peru, South Africa, Italy, Greece, Thailand, India, Hongkong, etc. More than thirty countries and areas.
Our company always persist in"reputation first, quality high and customers supreme" management ideal. We will use great products, competitive price, professional service to cooperate with you and gain win-win!
OEM is welcome! !
