Zhangzhou Yi Chen Trading Co., Ltd. >> SDI Input 3.5"LCD Display with Magnifier (S350)

SDI Input 3.5"LCD Display with Magnifier (S350)

SDI Input 3.5
Price: Negotiable/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: S350
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Viewing Angle: 80°/80°(L/R), 80°/80°(U/D)
Contrast Ratio: 800:1
Brightness: 315CD/M2
Inputs: Sdi X1, HDMI X1
Outputs: Sdi X1, Earphone Jack X1
Audio: Earphone Slot X1
Input Voltage: DC6V-18V
Power Consumption: ≤6W
Lens: Canon
Image Stabilization: Without Image Stabilization
Screen Type: HD Screen
Viewfinder Type: Optical Viewfinder
External Flash: Without External Flash
Video Capture: Without Video Capture
Red-Eye Reduction: Red-Eye Reduction
WiFi: Without WiFi
Type: DSLR
Screen Size: 3.5"

Product Description

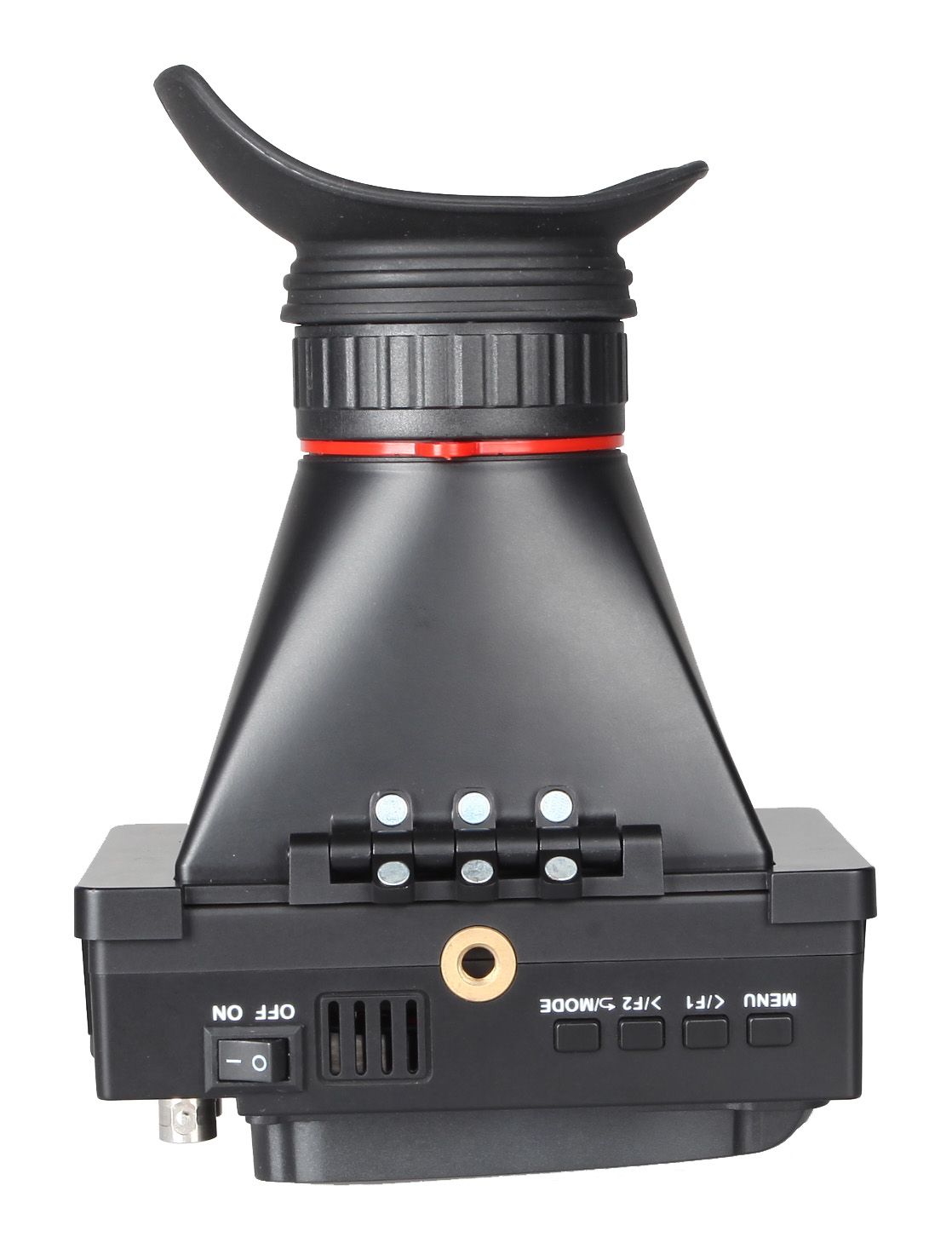

GOODWELL Newly Design S350 New 3G HD/SD-SDI Electronic View Finder. This EVF Electronic View Finder is transforming the form factor of DSLR cameras for video with our electronic viewfinder. The EVF is a 3.5" TFT-LCD Max resolution up to1920*1440. This electronic viewfinder allows you to operate the DSLR camera or any camcorder with SDI output, with the correct form factor for video with the camera "in-line" to your rod system (the most stable way) and your eye in the EVF offset. In addition, brightness, contrast, hue and saturation can be adjusted. Ideal for indoor and outdoor filming.




Advaced Features :

1. Custom Color Temperature

2. Peaking Focus Assist(Red-outline peaking focus based on Mono background)

3. 4:3&16:9 ratio switch

4.1:1 pixel-to-pixel mapping

5. External Battery

6.Center Marker

7. Screen Marker(80%,85%,90%,93%,96%,2.35:1)

8. Camera 5D II Mode

9. Image Freeze&Flip(U/D,L/R)

10. Check Field (Mono/Red/Green/Blue)

11. Magnifier

12. Side Earphone Jack



Detachable Optical Loupe:



The optical loupe attached to the EVF body can be detached  completely.


 Specifications :

Model Number S350
Screen Size 3.5 Inch
Resolution 800x 480
Dot Pitch 0.0315(W) x 0.0945(H)
Backlight LED
Contrast Ratio800:1
Brightness315cd/m2
Viewing Angle 80°/80°(L/R), 80°/80°(U/D)
Aspect Ratio15:9
Inputs SDI x1, HDMI x1
OutputSDI x1 ,Earphone Jack x1
SDI Support Mode 480i/576i
 720p(60/59.94/50/30/29/25/24/23.98)
 1080i(60/59.94/50) 1080p(60/59.94/50)
 1080p(30/29.97/25/24/24fps/23.98/23.98fps)
HDMI Support Mode480i/576i/480p/576p
 720p(60/59.94/50/30/29/25/24/23.98)
 1080i(60/59.94/50)
 1080p(60/59.94/50/30/29.97/25/24/24fps/23.98/23.98fps)
AudioEarphone Slot x1
Power Consumption ≤6W
Input Voltage DC6V-18V
Working Temperature-20ºC~50ºC
Storage Temperature-30ºC~65ºC
Install Way 1/4"-20 Thread Socket
Unit Size 124.3L×87.5H×178.5D (mm)
Unit Weight 344g
PCS/CTN10PCS
Standard Accessories Sony F970 Battery Plate x1, Mini HDMI cable x1, Magnifer x1, Instruction Manual x1










Goodwell Technology Limited major in producing and selling the high technology electronic products. Base on the R&D department and the demand of market, we develop many kinds of new products to meet the customer's demand of different period and different market.

Our major products are TFT LCD Monitors, Car Touchscreen monitors, LCD SKD modules, Mobile Embedded Computing Device, Satellite Finder, Photography Monitor.
We have own R&D team major in developing the intelligent meters and the industrial control system and equipment, Display instruments.

Attributing to our strict quality control in components selection before production and performance inspection. Our Products are popular in Europen and North American Countries.

We will develop more new produts and catch up the market change. OEM and ODM are Welcome.
