| Prod Model: |
RV-7001WS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| With Mic: |
Optional |
| Cable: |
10m, 15m, 20m, 25m Optional |
| CMOS/Sharp CCD/Sony CCD: |
Optional |
| Sunshade: |
Optional |
| Digital Screen: |
Optional |
| Certification: |
CE |
| Video Output: |
2 RCA |
| Audio Output: |
Digital Audio Coaxial |
| Voltage: |
12/24V |
| Placement: |
Dashboard |
| Combination: |
TV |
Product Description

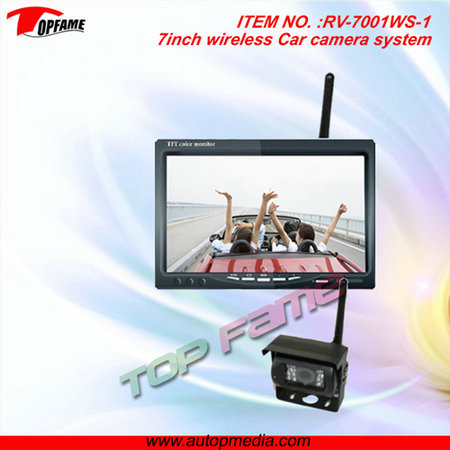

RV-7001WS Wireless reversing system for truck/vans/buses/etc.
7inch monitor with wireless receiver built in
High resolution camera with wireless transmitter built in
7" Wireless rear view monitor
Built in wireless 2.4GHz VIDEO Receiver
Wireless AUDIO optional
Ratio: 16: 9 /4: 3
Pixel: 480*234
Video input: 2 way
Backup: V2 auto reverse
View angle: U/D/L/R
Power supply: DC12V
Current: 0.7A
Luminance: 300-400/m2
Operating temp.: -10° C ~ 60° C
Device size: 171*125*19mm(W/H/D)
Weight: 550g
Installation: (stand bracket, Air-container Vent, headrest, Z-clip optional)
Wireless Camera Spec
Wireless camera with built in 2.4GHz VIDEO Transmitter
Wireless AUDIO optional
ImageSensors: 1/4" Sharpe CCD (1/3"Sharpe CCD
-1/3"SonyCCD or 1/4", 1/3" CMOS Optional)
TV System: PAL / NTSC
Waterproof rate: IP67
Effective Pixels: 512 X 582 pixels / 512 X 492 pixels
752X582 pixels / 768× 494 pixels
Resolution: 420TV lines
Minimum Illumination: 1.0Lux / F1.2 0.2Lux / F1.2 (0Lux IR ON)
Pin Lens: F=2.8mm / F = 2.0
Lens Angle: 120°
Vertical Sync. Frequency: 50Hz / 60Hz
Video Output: 1.0vp-p, 75Ohm
Power Supply: DC12V
Current Consumption: ≤ 300mA
Packaging included:
7inch wireless monitor X 1
Stand bracket X 1
Wireless 1/3" CMOS camera X 1
CCD camera optional
Digital screen optional
DC 11-32V optional
Top Fame Electronics Limited is a mainland China based manufacturer that is specialized in 12-volt car accessories, mobile electronics and LCD products. These products are at the forefront of technology and have wide and diverse applications. Our current markets expand through Eastern Europe, North America, the MID East, Africa, Central and South America, and other countries and regions.
