| Prod Model: |
XXD-13PP01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Support Network: |
Ethernet |
| Usage: |
Telephone, Computer, Workstation, Server, Mobile phone, Laptop |
| Type: |
Wired |
| Information Content: |
Data |
| Item Name: |
RJ45 24 Port Cat5e UTP Patch Panel |
Product Description

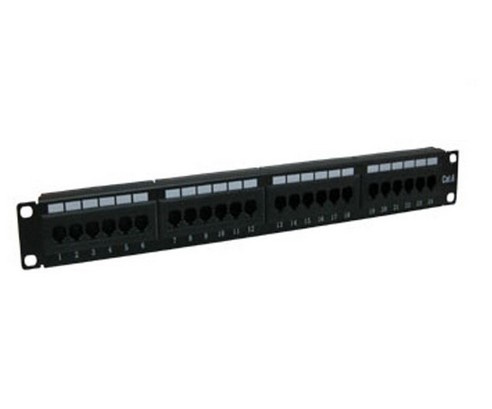

RJ45 24 Port Cat5e UTP Patch Panel
Specifications:
Meet TIA/EIA-568-A and TIA/EIA-568-B Category 6 requirements.
Meet TIA/EIA TSB-40
Meet ISO/IEC Generic Cabling Standard 11801
Meet CENELEC Generic Cabling Standard EN50173
Termination: 110 Type and kelon
Electrical:
According to UL 1863
Current rating: 1.5 AMP Max.
Voltage rating: 150 Volts
Contact resistance: 20 m-ohm
Insulation Resistance: 500M-ohm
Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min
Materials:
Housing: PC UL94V-0
IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire.
PCB: FR4 1.6mm(0.04") thickness, 2 layers
Contact: PC UL94V-0, 0.45mm(0.018") Diameter Phosphor bronze with 3 u" to 50 u" Gold plating on contact area.
|
Product Name |
Patch Panel |
|
Category |
Cat5E & Cat6 8P8C |
|
Port |
12/18/24/28 |
|
Contact |
PC Ul94V-0, 0.45mm(0.018") Diameter Phosphor bronze with 3 U"/0.0762um to 50 U"/1.27um Gold plating on contact area |
|
Color |
Black |
|
Termination |
Dual IDC |
|
Product Size |
10 inch/19 inch, 1U & 2U |
|
IDC |
PC UL94V-0, Accept 22-26 AWG Solid Wire |
|
Standard |
ISO/IEC 11801 and EIA/TIA-568Bstandards |
|
MOQ |
100pcs |
|
Price |
FOB Shenzhen |
|
Packing |
1 pcs/box, 20 pcs/carton, carton size: 52 X 26 X 50cm |
|
Payment Term |
T/T & Western Union ,Moneygram,Paypal |
