Rg-T350mtqi-02p 3.5" Psi+18bit LCD Video Display with Tp

Rg-T350mtqi-02p 3.5
Price: US $ 11/Piece
Trade Terms: FOB
Min Order: 1000/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: RG-T350MTQI-02P
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 3.5
Resolotion: 240X320
Luminance: 160CD/M2
Contrast Ratio: 150:1
Active Area: 53.64X71.52mm
Driver IC: Ili9341V
Viewingangle: 55/40/40/45 (Typ. )(Cr≥ 10)
Operation Temperature: -20 ~ 70 ° C
Storage Temperature: -30 ~ 80 ° C
Electrical Interface(Data): RGB 18 Bit Spi
Usage: Small-sized LCM
Touch Screen Type: Resistive
Type: LCM
Response Time: 30ms
Viewing Angle: TN+FILM
Display Technology: TFT
DOT-Matrix Graphic LCD Module Type: Row/Column-Driven Control Type
LCD Drive Mode: Multiplex Drive LCD Module
Customized: Customized
Digital LCD Module Type: TFT LCD

Product Description

Product Description
Structure: TFT PANNEL+IC+FPC+BL;
Transflective Type LCD
240 dot-source and 320 dot-gate outputs;
White LED back light;

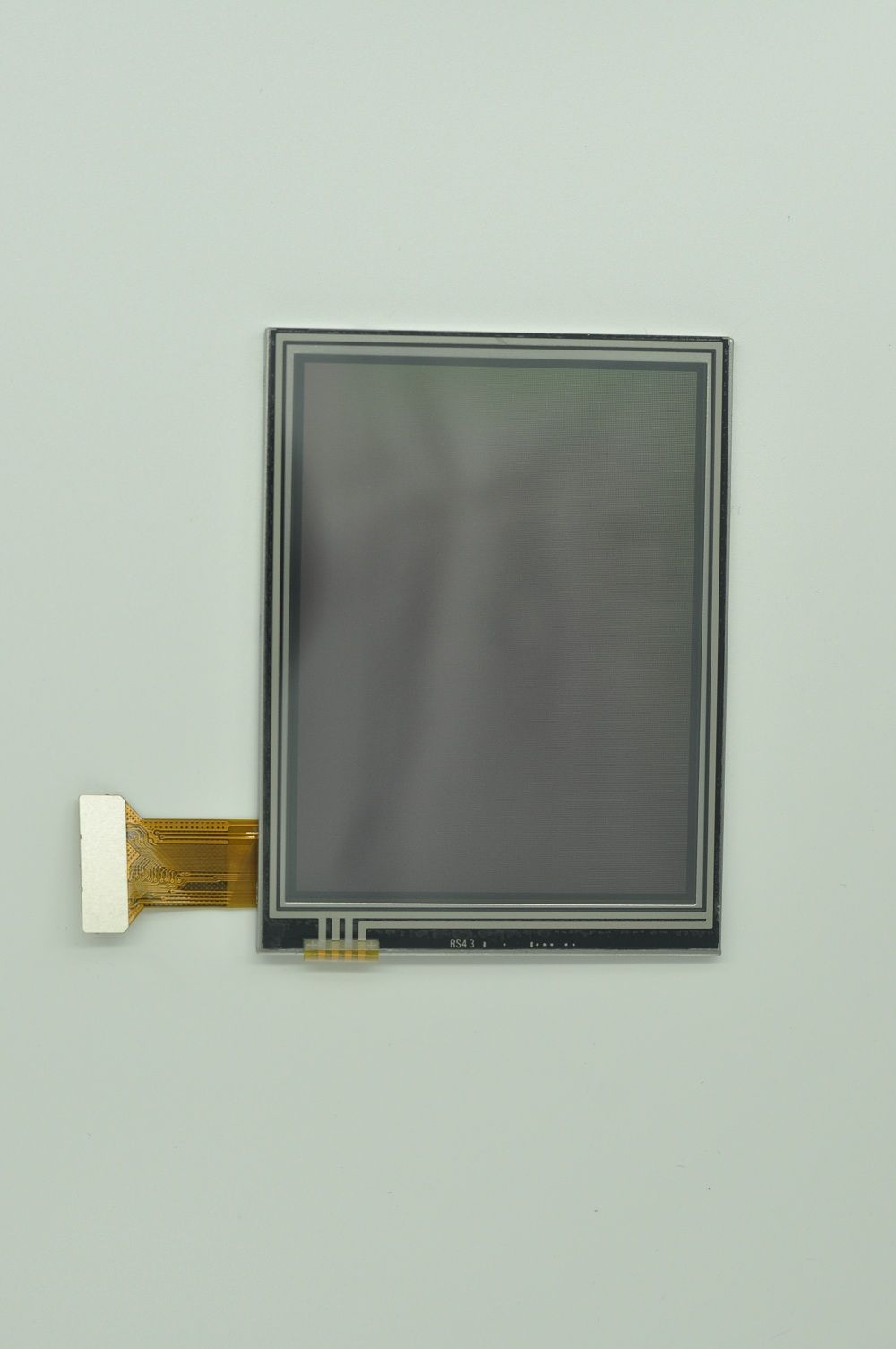

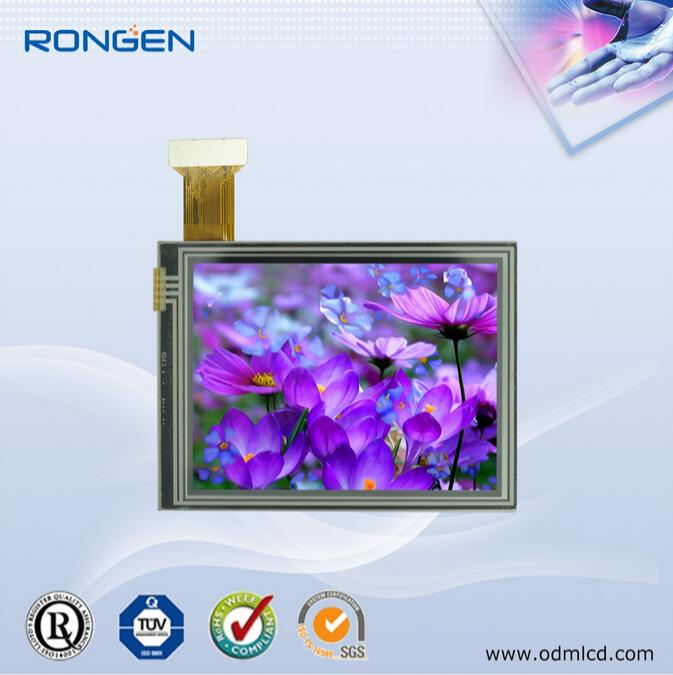

Product Pictures



Specification

LCD Type :TFT Transflective ---
Driver element: a-Si TFT
Number of Dots: 240*(RGB)*320 Dots
Pixel Arrangement: RGB Vertical Stripe
Active Area: 53.64x71.52 mm
Viewing Direction: 6 O'clock
Driver IC: ILI9341V
LCM Module Size(W*H*T): 64.0x85.0x4.11 mm
Back Light: 6 White LEDS
System interface: RGB 18 bit+SPI

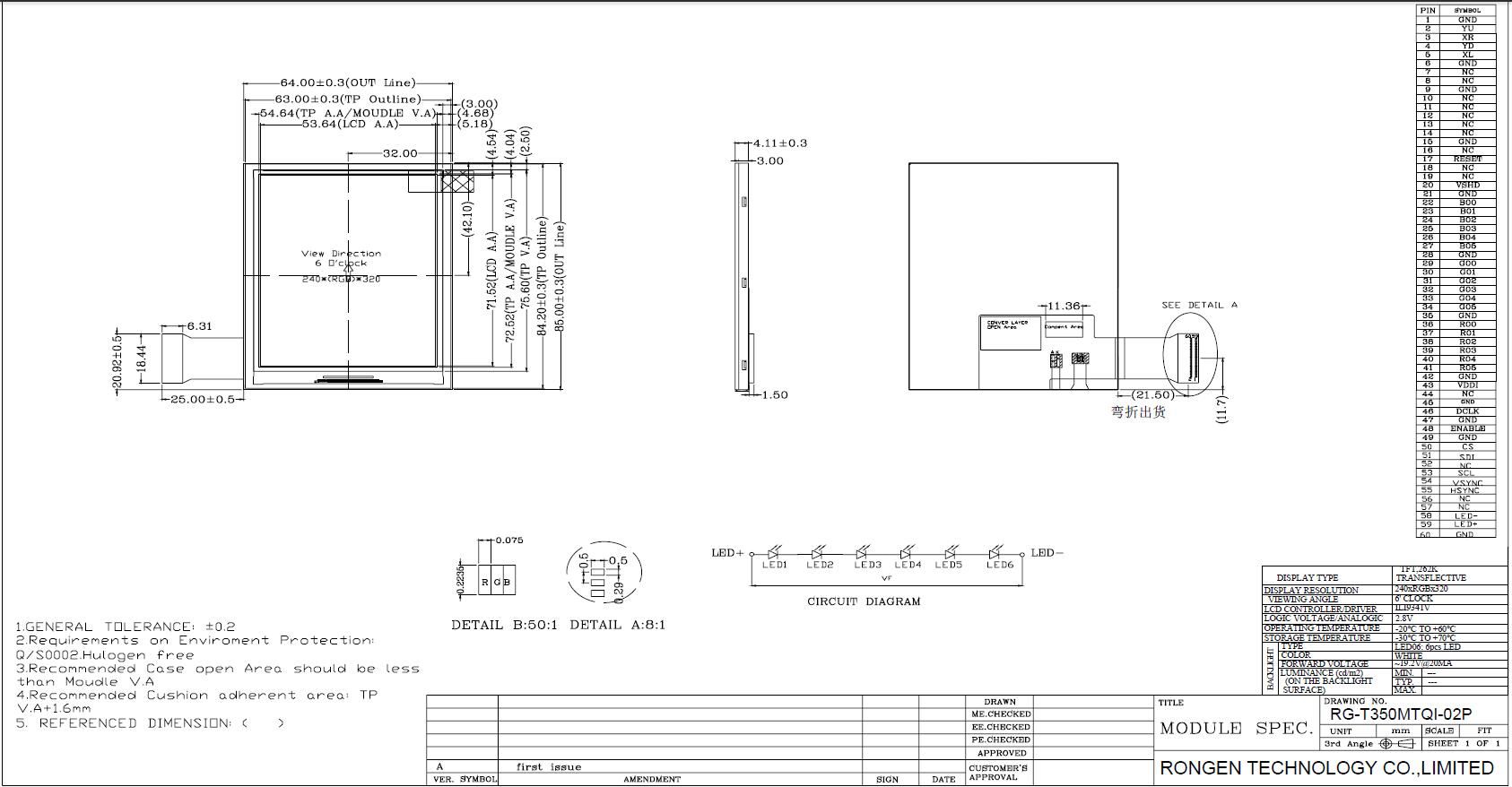

Mechanical Drawing


Product Application

Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.



Product

 high luminance 3.5 inch tft lcd module 3.5'' tft lcd screen 3.5" wvga tft lcd

Small-size TFT LCD display

mobile device,watch,toy,medical equipment, Office electronic equipment,camera, air-condition display, etc.

Mid-size TFT LCD display

mobile device,medical equipment,car, automotive product,industrial control equipment,POS,PDA, Household Video doorbell, air-condition display,etc.

Big-size TFT LCD display

educational product,automotive product,video door phone, Audiovisual equipment,DVD player,media play,tablet PC, Security Products,etc.

TN/STN//FSTN/OLED

elevator controller,watch,electronic product,air-condition display,all kinds of instrument,etc.

Plastic mould

industrial control equipment,electronic product,toy, Security Product,IT digital product, sports equipment,etc.

RONGEN have concentrate on designing and manufacturing display products for more than 12 years.

Wecan offer monochrome TN/STN, CSTN, TFT and OLED displays and other display components.

Our transflective TFT displays are not only viewing but support operating under direct sunlight, if you are looking for sunlight readable TFT displays, our product is your best choice. And our IPS and LTPS panels are wide viewing angles, they are widely used in automotive electronics, military applications and medical instruments.

Further more, each unit bears SGS, TUV and RoHS marks.

The innovative flat panel display and products- provided by our elite team- can keep pace with such a fast-changing global marketplace. We can also meet your display specifications, and satisfy your individual request. The most competitive and satisfying products have won us high reputation.

Now RONGEN Display Co., Ltd is becoming a qualified supplier of many noted companies. Professional technical support and good service is our permanent commitment for you.
