Q1--Dual10 Inch Line Array Speaker, PRO Audio, PA System

Q1--Dual10 Inch Line Array Speaker, PRO Audio, PA System
Price: Negotiable/Piece
Trade Terms: CIF,EXW,others
Min Order: 4/Piece
Pay Type: T/T,Money Gram,Western Union
Prod Model: Q1 and Q-Sub
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Components: 2X10"+1X3"
Brand Name: Diase
Driver: Neodymium
Usages: Concert, Band, Stadium, Church, Theate
Package: Carton or Flight Case
Noise: <102dB
Hi-Fi: Not Hi-Fi
Operation Mode: Wire / Remote Control
Speaker System: Optional Combination
Speaker Material: Wood
Application: Commercial
Certification: SGS

Product Description

Q series system ---Q1 and Q-sub

1. Line array speaker, PRO audio, PA system
2. 2x10"+1x3" Neodymium
3. High copy D&B audio
4. Concert, Band, stadium, Church, theate


Q1:

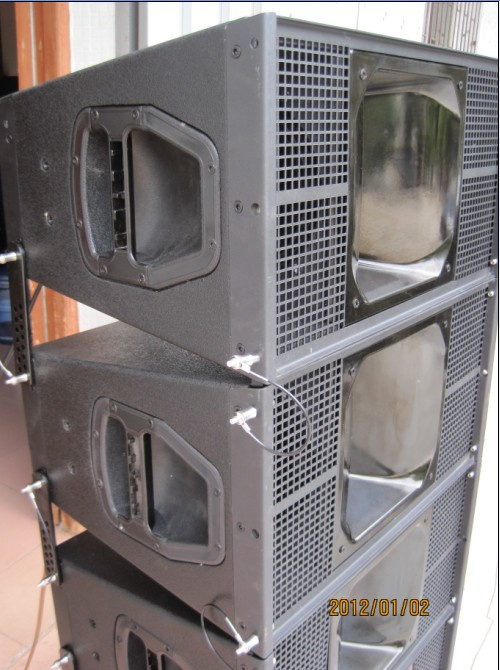

1: The Q1 is a passive 2-way loudspeaker housing two  10"  LF  drivers  positioned  in a dipolar arrangement and a 3" HF compression driver fitted to a toroidal wave shaping device.

2:The 75° constant directivity horizontal dispersion pattern is maintained down to 400 Hz, while the vertical HF dispersion of 15° allows the Q1 to be used to construct vertical columns that produce a curved coherent wave front.

3:The mechanical and acoustical design of the cabinet enables vertical splay angles to be set between 0° and 14°. Q1 cabinets can therefore be used in vertical configurations starting from two cabinets with a 15° to 30° dispersion, up to twenty cabinets with a fully user and venue defined vertical profile.


Q-SUB :

1: The Q-SUB is an passive bass-reflex loudspeaker fitted with  a high  excursion  18" driver.

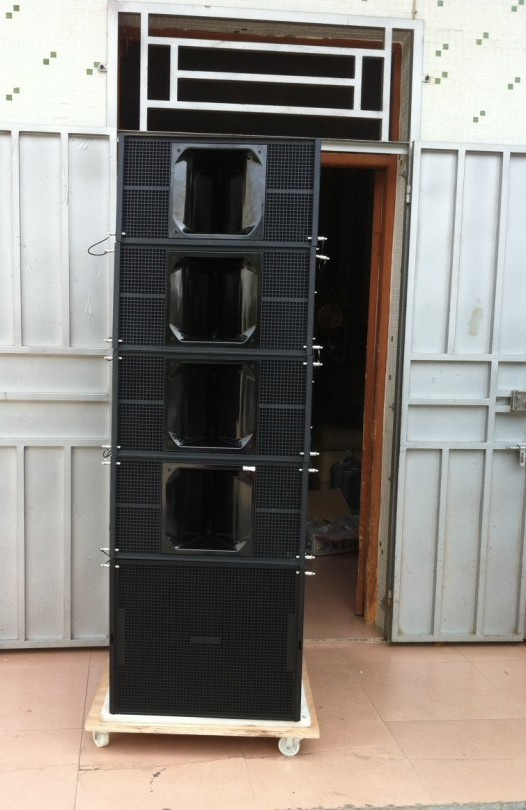

2 : The Q -SUB is mechanically  compatible with the Q1  and Q7;  ten sockets in the front grill and side panels for Q-Series rigging  components  permit use in various combinations, either flown or ground stacked.

3 :The Q -SUB cabinet is constructed from plywood  with an  impact  resistant  paint finish, a pair of handles, four heavy duty wheels and an M20 threaded  flange in the top panel to accept a loudspeaker stand.



Q1  Dual  10"   Line  Array  System(Neodymium  Components)
Frequency  response  (-3dB)60Hz-19KHz
ComponentsLF:   2x10in, Neodymium
1x3inch,   Neodymium
Nominal  Impedance8ohms
System  sensitivity  (1w@1m)106dB  SPL
Maximum    SPL139dB
Power  handling800W
Peak  power1600W
HxV75° x15°
Dimensions  (W  x  D  x  H)583x310x425  mm
Connectors2xSpeakon|  connectors  (NL  4)
Enclosure  material15mm  plywood
  FinishTextured  black  paint
GrilleBlack  perforated  steel
NG(Kg)23kg
Q-sub  reflected  low  frequency
Frequency  response  (-3dB)40Hz-200Hz
Components1x18"   woofer(Neodymium)
System  sensitivity  (1w@1m)106dB  SPL
Maximum    SPL133dB
Power  handling800W
Peak  power1600W
Nominal  Impedance8ohms
Connectors2xSpeakon  connectors  (NL  4)
Enclosure15mm  plywood,   compact  reflected  low  frequency
  FinishTextured  black  paint
GrilleBlack  perforated  steel
Dimensions  (W  x  D  x  H)583x486x668  mm
NG(Kg)34kg
