| Prod Model: |
PAE-100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Mixer Amplifier |
| Type: |
PRO Audio |
| Power Supply: |
220~230 AC or 240V AC,50/60Hz |
| Rated Power Output: |
100W/200W/200W/400W |
| Category: |
Public Adress Amplifier |
| Frequency Response: |
50~20,000Hz(±3db) |
| Weight: |
8.5kg/9.4kg/12.6kg/13.5kg |
| Color: |
Black |
| Size(W*H*D): |
420mm X 109mm X 357mm |
| Working Temperature: |
-10 to +40 |
| Application: |
Industrial Places |
| THD: |
0.005%-0.01% |
| Noise: |
≥105dB |
| Certification: |
UL |
Product Description

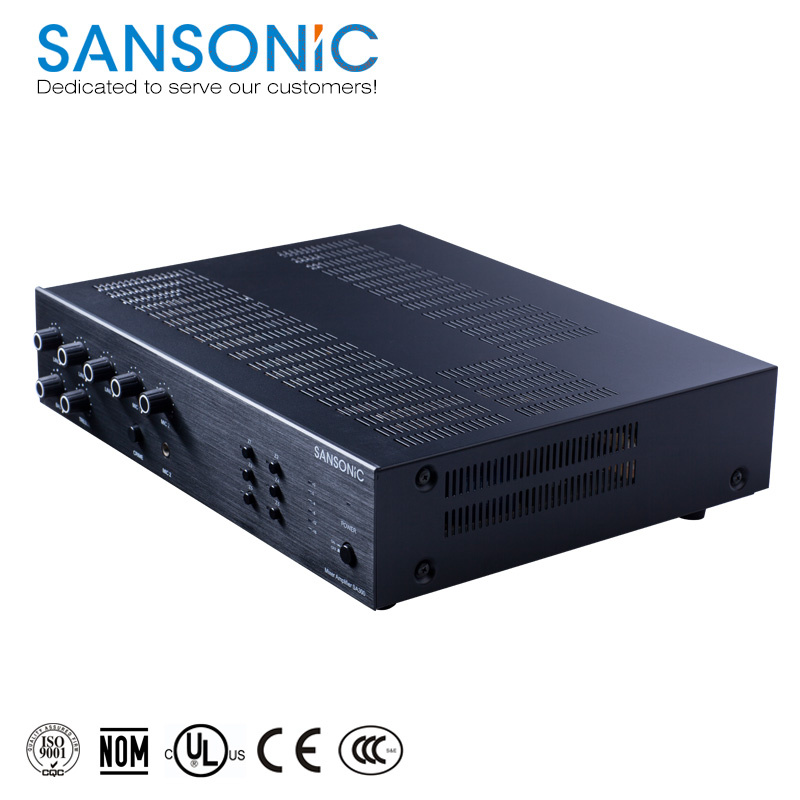

Hot in US market public address mixer amplifier
PAE100/200/300/400 series is the high performance audio amplifier which are designed for commercial and industrial public address applications. This type is the standard mount design, rated power is 100W/200W/300W/400W to provide a wide selection for different sound system. Both balanced and unbalanced line inputs are selectable, 4~16Ωand 100V output terminal are selectable for different speaker installation matching. Less than 1% at 1kHz, complete protection includes short circuit, overload and overheat automatic protection.
Features
1. standard mount design, humanistic design, exquisite technique, show the top grade quality
2. MIC 1~3 XLR terminal balanced input
3. LINE 1~3 RCA linear input
4. The panel with volume adjustment knob
5. 4~16Ω,100V output terminal multi-impedance output
6. MOH linear output
7. Line 1/2 liner linear output
8. Signal lamp, peak lamp display
9. On/off impact protection speaker
Physic and environment parameter
Output:
MOH Output: 0dB, 600Ω Unbalanced, RCA pin jack
Speaker selection output: 6 zone, high impedance, individual selector SW, screw terminals
Linear output: High Impedance: 100V screw terminal
Low Impedance: 4-16Ω screw terminal
Input:
MIC 1:-60dB, 600Ω electronically-balanced, combine type of XLR-3-31 equivalent and phone jack, DIN
Line1-3:-20dB, 10kΩ unbalanced RCA pin jack
Port allocation:
1.MIC 1~3 XLR balanced input, input sensibility: 1mV
2 . LINE 1~3 RCA linear input, input sensibility: 100mV;
3. 4~16Ω,100V output terminal multi-impedance output;
4. MOH linear output 1V 600Ω;
5. line 1,2 linear output 1V 600Ω;
6. Zone 2 linear output 1.5V 600Ω or 8Ω 1.5W;
Specification of mixer amplifier
MODEL
PAE100
PAE200
PAE300
PAE400
Power Requiement
220~230 AC or 240V AC,50/60Hz
Rated output
100W
200W
300W
400W
Distortion
Less than 3% at 1kHz
Frequency Response
50~20,000Hz(±3dB)
Outputs
MOH outputs
0dB,600Ω Unbalanced,RCA pin jack
Speaker Selection Outputs
6 zone,high impedance ,individual selector SW,screew terminals
Direct Out
High Impedance:100V screw terminal
Low Impedance:4~16Ω screw terminal
Inputs
MIC1
-60dB,600Ω electronically-balanced,combine type of XLR-3-31 equivalent and phone jack,DIN
Line 1-3
-20dB,10kΩ unbalanced RCA pin jack
Operating Temperature
-10 to +40
Color
black
Dimensions(W*H*D)
420*109*357mm
Weight
8.5kg
9.4kg
12.6kg
13.5kg
