PRO Audio 10'' Speaker System

PRO Audio 10'' Speaker System
Price: US $ 500-1000piece
Trade Terms: FOB
Min Order: 1piece
Pay Type: T/T,Western Union
Prod Model: LA110
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Origin Of Place: China(Mainland)
Brand Name: Zsound
Certificate: CE, RoHS
Power Rating: Hf/Lf:80W/350W
Nominal Impedance: Hf/Lf:16/16ohm
Maximum Spl: Hf:131/137dB Lf:128/134dB
Drivers: Lf:1X10''woofer Hf:1X3''compression Driver
Dimension: 308X580X390mm
Service: OEM, ODM
Net Weight: 22.5kg
Speaker Material: Wood
Application: Touring Performance, Theatre, Hall, Church
Certification: RoHS

Product Description

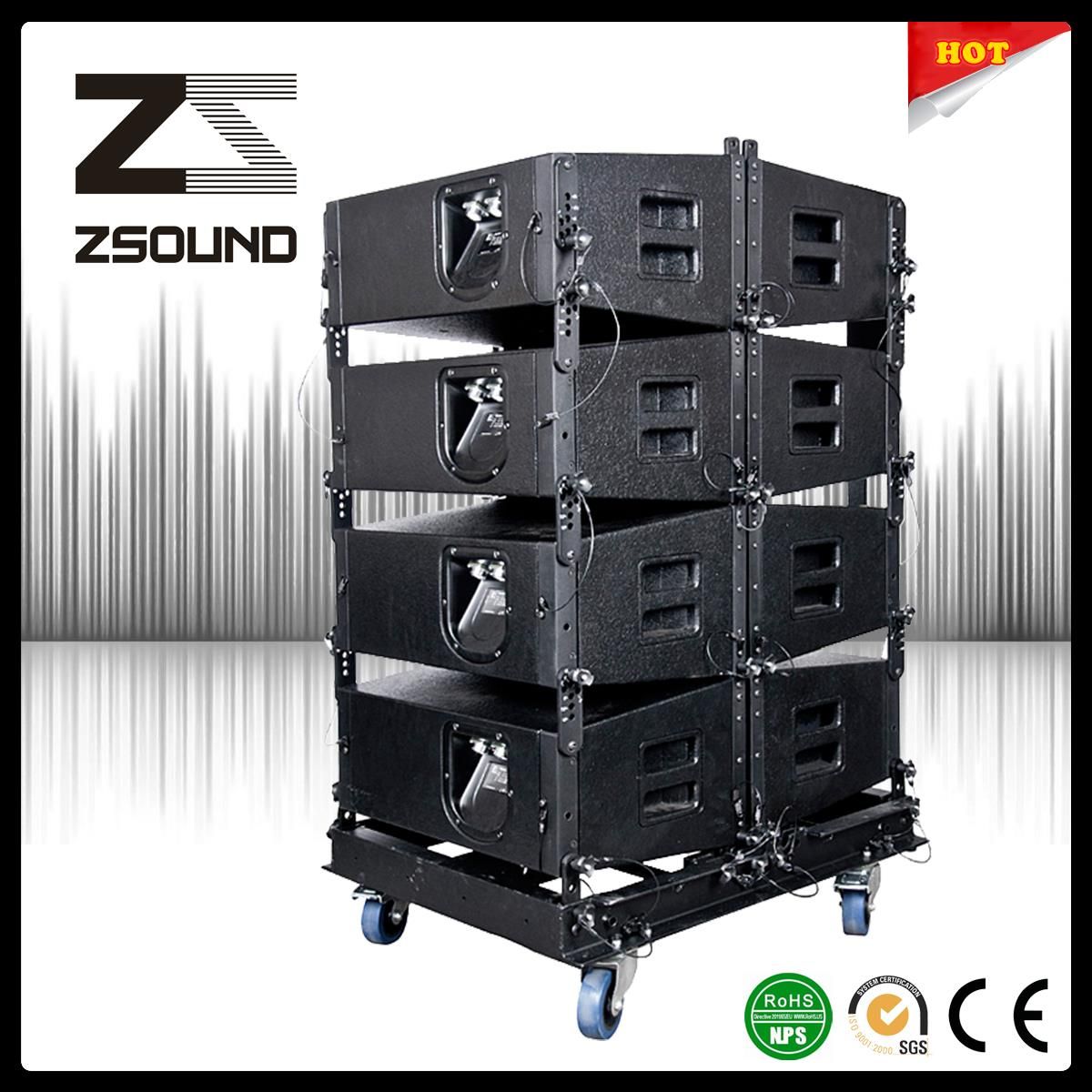

PRO Audio 10'' Speaker System

LA110 line array is a mini two way system, which provides 60Hz-18KHz frequency response, with flat frequency and phase response. One 75mm neodymium compression driver matches one 10" neodymium low-frequency driver to generate ultrahigh headroom, effectively decrease the weight of the enclosure, and obviously improve the ratio of SPL and Volume.The compact LA110 can achieve max 137dB SPL output.



Applications:

 Theater and multi-function hall

 Church



Feature:

Full-range small system

Smooth frequency and phase response

Extremly high SPL and Volume ratio



LA110 system advantage

1) Small enclosure, light, only 25kg/pcs, with high SPL and Volume ratio; maximum headroom
2) Transmit 50Meter long distance, smooth voice on 12K frequency;
2) Neodymium high-sensitivity driver which is deal with and tested by 200 degree high temperature treatment.
3) Small bi-amp system, 16ohm nominal impedance, save amplifier
4) the plywood was import from Russia, Just go ahead use outdoor
5) Our hander cup is the same as LA, D&B. All of our spare parts are used penn elco
6) Share of China Market ≥6000pcs, While international market ≥3000pcs

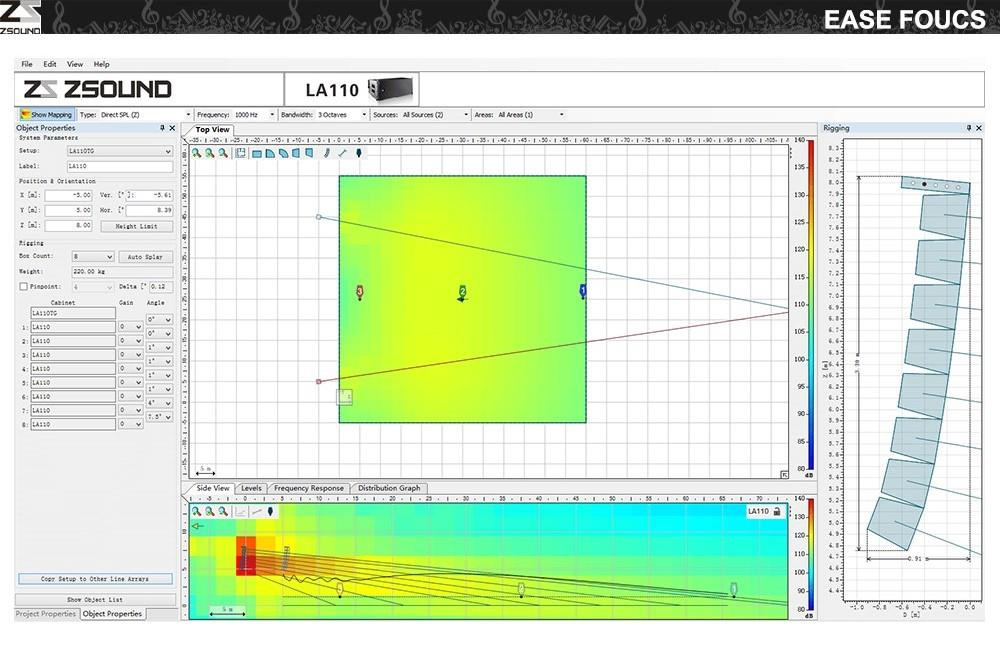

7)We use SMAART7, 3D directionality test, and CLIO electroacoustic measuring system, audio precision test,And all the data is open. We also have our own EASEFOCUS data and GLL picture for our LA110 system





TECHNICAL SPECIFICATION
Frequency Response:60Hz-18KHz(±3dB) 50Hz-20KHz(-10dB)
Nominal Coverage:90°(H) 10°(V)
Sensitivity (@1w/1m):HF:112dB(2Kz-16Kz) LF:103dB(500Hz-2KHz)
Power Rating (AES):

HF/LF:80W/350W

Nominal Impedance:HF/LF:16/16Ohm
Maximum SPL:HF:131/137dB LF:128/134dB
Drivers:

LF 1*10" neodymium woofer ;

HF 1*3" neodymium compression driver


PHYSICAL DATA
Dimension (H*W*D):

308*580*390mm

Weights:

25kg

Connectors:2*WP4 connectors
Speaker Cables:1-2+LF,3-4+HF
Materials:15mm 18mm birch multi-plywood
Finish:B55Black water paint
Grille:Black epoxy mesh grille with acoustically reticulated cloth
Rigging:0,1 ,2,3,4,5,7.5 ,10degree adjustable


FAQ:
Q1: How long is the warranty for the speakers?
A1: 1year warranty.

Q2: How about the delivery time?
A2: 3-7days for stock.
      10-20 days for new order depend on order quantity since receipt of 30% T/T deposit payment.

Q3: What kind of payments does ZSOUND support?
A3: T/T, Western Union, Cash are accpeted.

Q4: What's the MOQ?
A4: MOQ is 1pcs

Q5: Can you produce according to customers' design?
A5: Yes we can, we are professional manufacturer,OEM & ODM are welcome .

Q6:Can you tell me your main customers?
A6: That's our customers privacy, we should protect their information.
      At the same time, please rest assured that your information is also safe here.


Our Advantages:
1) Global leading professional Manufacturer of professional speaker and amplifier.
2) Product quality: Superior speaker and amplifier, top technology and quality.
3) Certificate: CE,RoHS,GS,SGS,ISO9001
4) Monthly Production Capacity: 2000pcs
5) Fast delivery: Get your order when you need it.
6) 4000 square meters workshop, with about 200 workers and 20 professional engineers
7) Convenient Transportation: 1 hour to Baiyun Airport
8) 24 hours on line service.




   Mob:  +86 188 0200 7151
Guangzhou Zsound Proaudio Technology Co., Ltd. Specilizes in developing and manufacturing a wide range of superior, advanced technology loudspeakers for the professional touring and installation market. With more than ten-years R & D experience, we've successively achieved numerous patents for Zsound speakers.

Designed and constructed to exacting specifications, every component of Zsound loudspeaker is critically extracted. This meticulous craftsmanship and attention to detail shows how seriously we believe in our ideas. Our pursuit for sonic excellence LED to an outstanding reputation in this industry.

During the long-term persistent efforts, Zsound loudspeakers are extensively used in rental and installation markets for events, multimedia, musicals, concert halls, theatres, broadcast and many other applications from the smallest conference room to the largest stadium.

What's most important, ZSOUND won the specified audio title of the Milan World Expo (China Pavilion) theatrical performances, and provides sound equipment and technical support service for China Pavilion theatrical performance

In March 2013, ZSOUND set up performance alliance, the purpose is "achieve resource sharing under the premise of the law of the market, promote the growth of alliance members". And now there're more than 17 members from ZSOUND performance alliance, users of line array system are up to 1000 throughout the country.

After two-years development, alliance members have successfully made a cooperation with some performance project, such as Kenny'G Tour, Lang Lang Concert, Zero Band Tour and Inner Mongolia Sport etc.

Meanwhile, ZSOUND's desire is to provide the best professional audio system and technology service for user, as well as audio company which becomes worthy of audio industry's respect, the goal is to be the leading international professional audio brand.
