| Prod Model: |
CHR-24 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Heat Pipe Size: |
90mm Instead of 70mm |
| Water Tank Capacity: |
Based on Real Volume |
| Max. Capacity: |
100-200L |
| Structure: |
Compact Type |
| Pressure: |
Pressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Composition: |
Collector |
| Certification: |
CE |
Product Description
Key Points:
Model : CHR-Serial
Vacuum Tubes: 58-1800mm,10,12,15,18,24,30 tubes,

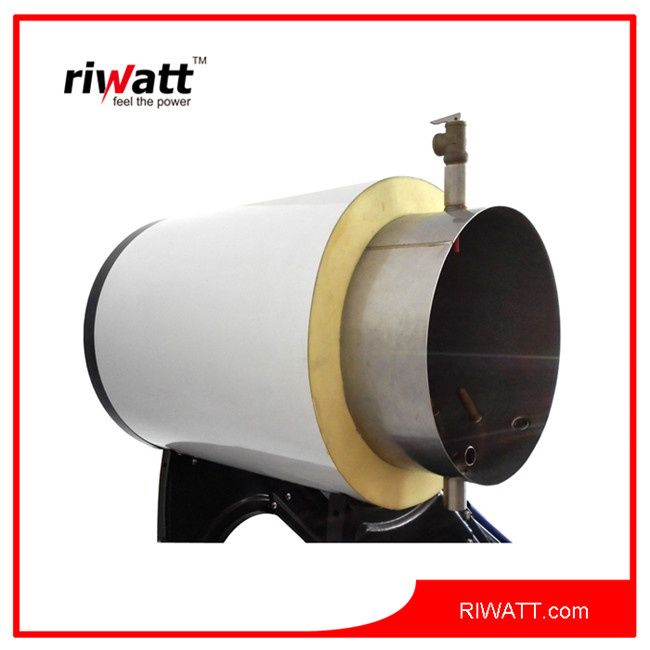

Inner Tank Material & thickness: SUS-304-2B,1.2mm
Outer Tank Shell: high quality color
Water Tank Size(inner/outer dia.) : 470/360mm
Heat Pipe Material: TU1 copper,14*90mm
Working Pressure:0.6Mpa
Testing Pressure: 1.2Mpa
Insulation : 55mm high density polyurethane
Bracket : 1.5mm galvanized steel
Compact PressurizedSolar Water Heater (Heat PIpe) Wrking Principle:
The vacuum tube absorb the solar ray and conduct the heat to HEAT PIPE(inside) by the aluminum slice, because the heat-pipe is connected with the copper connector which in the water tank, so there exists heat exchanging between the heat- pipe and copper connector, when the heat exchanging goes on, the water in the tank will be heated and become hot water.
Compact PressurizedSolar Water Heater (Heat PIpe) Characteristics:
1. Pressurized system ensure to provide strong water flow for shower
2. This type doesn't need any controller, circulation pump, expansion pump. Feeder tank, it also can supplement cold water automatic
3. We use the advanced ring-argon arc welding .ensure the high quality.
4. Thickness of inner tank: 1.2mm-2.0mm food grade SUS304 stainless steel
5. Even there is a tube broken; the system can work in a good condition
6. This type is cheaper and easy install than the separated pressurized solar water heater. i think it will popular and have a good market
Warranty:
riwatt covers failure due to defects for the following warranty time periods.
All-Glass Evacuated Collector Tube Warranty: 15 (FIFTEEN) Years
Water Storage Tank Warranty: 5 (FIVE)Years
Bracket/Support Warranty: 5 (FIVE)Years
Warranty of Other System Components: 1 (ONE) Years
