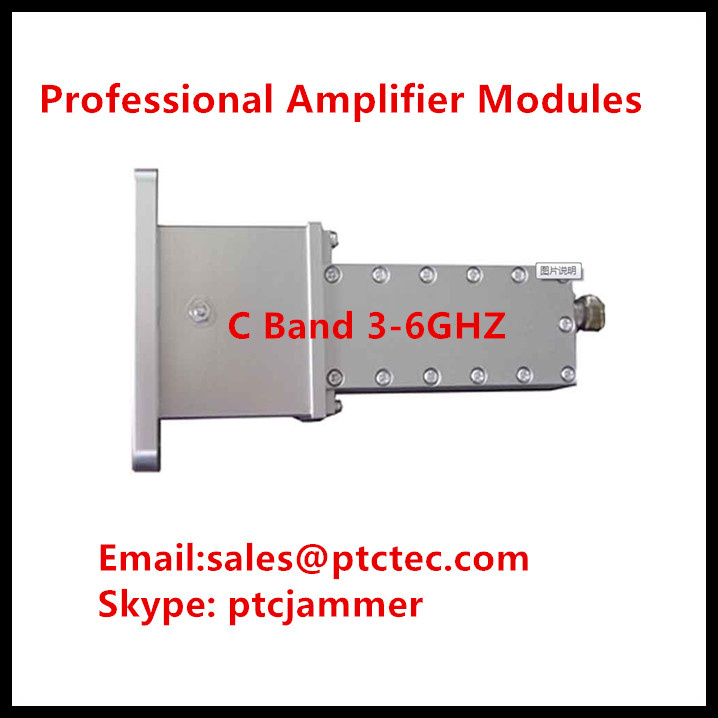

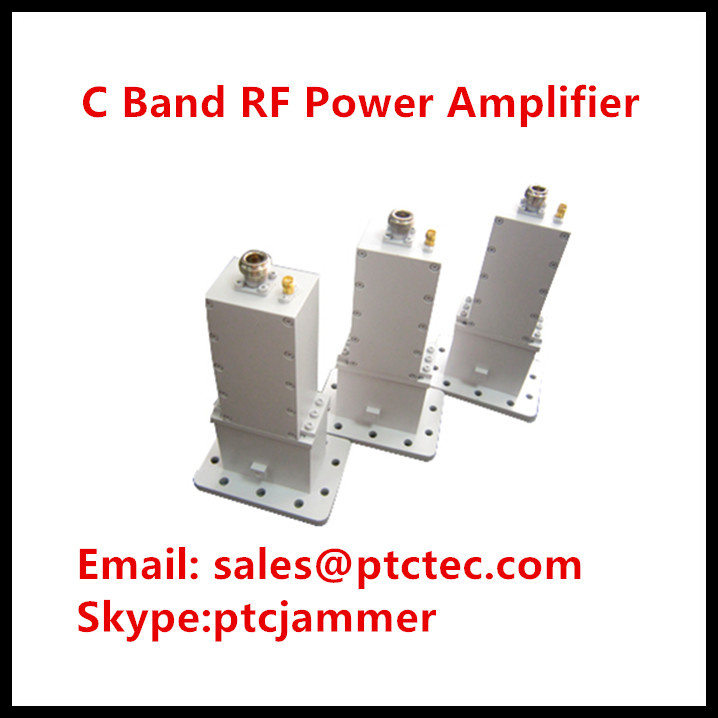

Powerful RF Amplifier

Powerful RF Amplifier
Price: Negotiable/Piece
Trade Terms: FOB,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: PTC-AM36
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name: RF Amplifier
Product Number: PTC-Am36
Frequencies: 3-6GHz
Working Band: C Band
Feature: Low Noise
Usage: RF
Type: Wireless
Support Network: GSM
Information Content: Data
Condition: New

Product Description

Specification

Frequencies

2-6GHZ

Gain
40, 60db

Type

LNA (low noise amplifier)

A band

3.7-4.2GHZ

B band
3.6-4.2GHz

C Band

3.4-4.2GHz

D Band
3.7-4.8GHz

E Band

 4.4-5.0GHz
F Band
5.8-6.5GHz

Gain: 50dB, 60dB


Gain Stability: 0.5dB over 24 hours


Gain Flatness: 2dB


Noise Figure: 35 °k, 40 °k, 45 °k, 50 °k at 23°C


VSWR---

Input: Less 1.25dB

Output: Less 1.5dB


P1dB: 10dBm


IMD3: -51dBC @ 2carriers x -12dBm


Over Input: 0dBm for 1 minutes


Working Voltage: 12V-DC, 15V-DC


Working Temperature: -40 to +70 Celsius Degree


Connector: SMA-K, N-K, BMA-J, Wave-Guide





Pinnacle Technology Company (PTC) is a leading RF Jamming Product manufacturer in China. We are professional in developing and manufacture of special jammers for both cellular and RF communications. Pinnacle Technology Company has an excellent R&D team using the most advanced technology to design special Jamming products to meet with customers' expectations. PTC test 100% of the finished products before shipping to make sure that they meet customers' specifications, to guarantee high performance and reliability for each product.
