Portable Air Conditioner for Cars PCB Shenzhen Factory

Portable Air Conditioner for Cars PCB Shenzhen Factory
Price: US $ 0.1/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Prod Model: pcb-0154
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
We Found: in 1998
Land Area Of Our Factory: More Than 10000 Square Meter
Business Nature: Manufacturing of Printed Circuit Board
Layer No.: 1-16
Cooper Thickness: 0.5 Oz-11oz (18 Um-385 Um)
Finished Board Thickness: 0.2 mm-3.8mm'(8 Mil-150 Mil)
Laminate Materials: Fr-4,Fr-1,,Fr-2,Cem-1,Cem-3
Certificate: RoHS, ISO9001:2008, SGS, UL Certificate
Type: Rigid Circuit Board
Dielectric: FR-4
Material: Fiberglass Epoxy
Flame Retardant Properties: V0

Product Description

Welcome to HRSC PCB


We are the Printed Circuit Boards (PCB) manufacturer with 15 years experience, specialized in single-sided, 2-layerd, multilayer and high density interconnector (HDI) PCB. We take strict Japanese-pattern management, so please trust us with your orders!

Certification: UL, ISO14001, ISO9001, SGS, TS16949, REACH
Our PCBs are
used for auto industry, high power led, Office Appliance, electric toy, machinery, industrial lighting and so on.
Our Corporate Vision: To become the world's most trustful PCB
Our Corporate Values: Excellence, customer satisfaction, innovation and integrity, green.
Our Quality Target:

1.Ptoduction pass rate>99%
2.Timely delivery rate>98%
3.Customer complaint rate<1%
4.Customer satisfaction rate>99%

Environmental Guideline:
Protect the environment, prevent pollution, save resources, and reduce waste.
PCB Manufacture Quality Control:
1. Engineering pretreatment before production
2. 100% E-test, 100% visual inspection
3. AOI inspection
4. High voltage test, impedance control test
5. Micro section, soldering capacity, thermal, shocking test
6. Reliability test, insulating resistance test, ionic cleanliness testing

Our PCB process capability


PCB DescriptionOur PCB Board Capability
PCB Surface Finisheselectrolytic nickel-gold,
HASL(Lead Free, ENIG (Electroless Nickel/Immersion Gold, Carbon Ink, Golden Fingers, OSP (Entek, Immersion Tin, Immersion Silver
PCB Max. Size1200mm×600mm
PCB Min. Size5mm×5 mm
Bow & Twist ToleranceSingle Side≤1.0%,Double Side≤0.7%, Muti-Layer≤0.5%
Min. Board Thickness & Tolerance0.2mm±0.08mm
PCB Min. trace/spacingTin board:0.2mm±20%(8mil±0%)
gold board:0.075mm±20%(3mil±0%)
Copper to Board Edge Spacing0.5mm(20mil)
Hole to Trace Spacing0.3mm(12mil)
Min. Hole Diameter0.2mm±.076mm(8mil±3mil)
Min. Hole Clearance0.4mm±.076mm(16mil±3mil)
Copper Thickness on Hole Wall20-25um(0.79mil-1.0mil)
Hole Location Tolerance±0.076mm(l±3mil)
Min Diameter of Punching HoleFR-4 board thickness≤1.0mm(40mil):1.0mm(40mil)
FR-4 board thickness 1.2-3.0mm(48-120mil):1.5mm(60mil)
PCB Min. Punching SlotFR-4 CEM-3 board thickness≤1. 0mm(40mil):0.8 mm×0.8 mm(32mil×32mil)
FR-4 board thickness1.2-3.0mm(48-120mil): 1.0 mm×1.0 mm(40mil×40mil)
Trace width variation±0.076mm(±3mil)
Outline ToleranceRouting:±0.1mm (±4mil)  ,Punching:±0.05mm (±2mil)
V-CUT Registration Tolerance±0.2mm (±8mil)
PCB BOARD TypeSingle-sided, double-sided, multi-layer
Major MaterialFR-4, CEM-1,CEM-3, high frequency laminates, Aluminum, NiFe-based, copper base
PCB BOARD Thickness0.2-3.5mm
Base Copper Thickness11um  35um  70um  105um
Max. aspect ratio(board thickness: hole size)8:1
V-Cut Angle Tolerance±5°
V-Cut Board Thickness0.4mm -3.2mm(16mil -128mil)
Min SMT Pitch0.3mm(12mil)
Min. Component mark0.15mm(6mil)
Min. width of annular ring(finished)0.15mm(6mil)/side
Min pad opening0.076mm(3mil)
Min S/M Bridge±0.076mm(±3mil)
carbon ink board manufacturing capability:1.Impedance Control:20K±10%  2.Hardness:6H  3.bearable friction times :above 200000 times


What we need:
Please tell us the information as below:


NO.ItemsNO.Items
1Board for what product8Surface Finish
2Number of Layers9Board Material
3Copper Thickness(um)10Board Thickness(um)
4Solder Mask Color11PCB Dimensions(mm)
5Silk Screen Color12Min Finished Hole Size(mm)
6Milling13Min Clearance(mm)
7Min Track Width(mm)14Other special requirements


PCB Fast delivery:


PackagingVacuum Packing with desiccant,
Professional Export Carton.




Delivery
time


Prototype   Mass production
(above 30m)
2LQuick turn:24h
Usual time:3-4days
5-10days
4LQuick turn:48 hours;
Usual time:5-6days
8-15days
6LQuick turn:72 hours;
Usual time:6-8days
10-16days
8LQuick turn:72 hours;
Usual time:8-10days
16-18days
10LQuick turn:96 hours;
Usual time:12-14days
18-20days
``````

Organization Chart:

PCB Flow Chart:

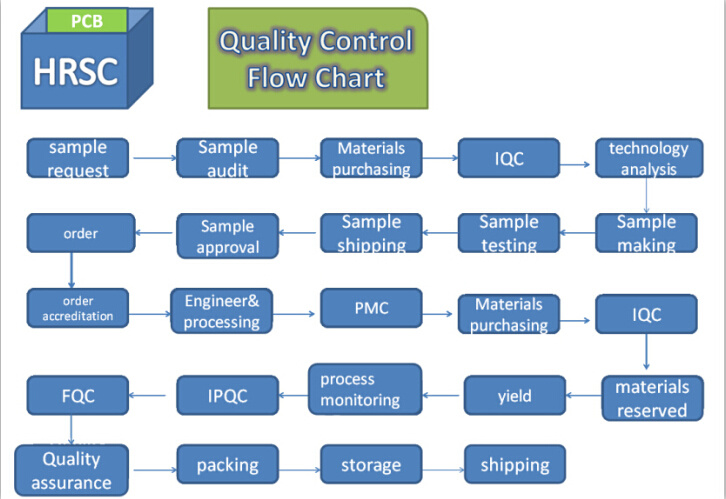

PCB Quality Control:



Dongguan HRSC PCB Co., Ltd is a professional printed circuit board¨ PCB© Manufacturer with 15 years experience, specializing in single-sided, double-sided, multilayer and high density interconnector PCB, owning 100, 00 m2 factory, with 320 employee. Monthly output is 35, 000 m2.

HRSC has advanced processing equipments and highly skilled workers. Our products widely apply in lighting, electronic game machine, auto industry, communication equipment, computer peripheral product, medical devices, etc. The quality of products is highly praised by the industry. In 2013, we have introduced more advanced overseas brand machines, and strived to become fist-class PCB manufacturer.

We have successively obtained certification of UL, ISO14001, TS16949, passed SGS test. And meets RoHS and REACH standards. Then we are improving the management of market development, engineering design, manufacturing, quality assurance, after-sales service, and have enjoyed the industry good reputation and customers' trust. Presently our company has deeply trusted and well received by Japanese well-known enterprises and sino-foreign joint venture companies. To keep pace with the high-techn industries, HRSC always uphold the tenet "integrity, practical, innovation", exerting the advantages of market, technology and talents, to provide our customers with quality products and efficient service.
