| Prod Model: |
KL-968 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Chargeable: |
Chargeable |
| Usage: |
Karaoke |
| Speaker Material: |
Plastic |
| Amplification Type: |
Passive |
| Special Function: |
Memory Card Support |
| SNR: |
91-100dB |
| Sound Channel: |
2.0 |
Product Description

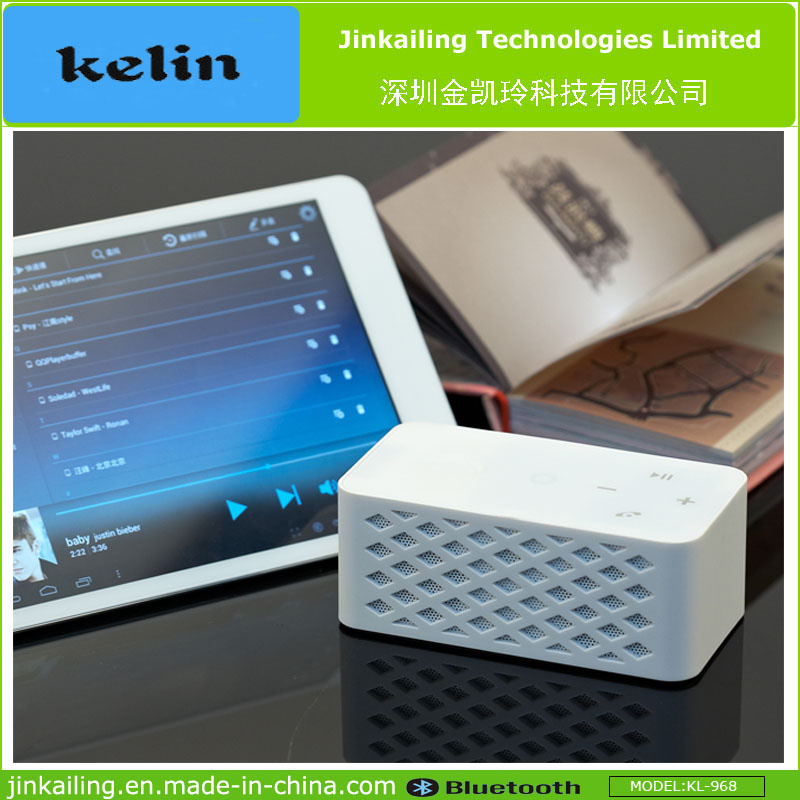

Perfume stereo bluetooth speaker with NFC function
Features:
1. Support bluetooth music playback, bluetooth 3.0 + EDR function
2. Support echo cancellation processing, echo elimination function module to ensure talking voice quality
3. Bluetooth hands-free call
4. Support TF card music play
5. Support Line-In music play
6. Touch panel for button control
7. Support NFC bluetooth fast pairing
Specification:
Working voltage: 3.5-4.2V
Charging voltage: 5V
Power amplifier output: 5V/3W/4Ω *2
The MIC sensitivity: 4+2 db
Bluetooth transmission distance: Up to 30M
Product Introduce
1. The bluetooth module CSSI IS1681S. With the advantage such as High rate integration, smaller size, low power consumption, fast transmission speed etc.
2. Using with mvsilicon MP3 decoding IC, better improve on the smoothly decoding, brilliant music sound characteristics. It can support 8K/11.025K/12K/16K/22.5K/24K/32K/44.1K/48K, 9 kinds of sampling rate, support 32 KBPS to 320 KBPS high solution code rate.
3. Using high performance class D power amplifier, has the sound, bass and treble bright characteristics. Prevent distortion function, the electric power noise suppression, over-current, over-voltage, under-voltage protction.
Instruction
1. With 2 toggle switch, when the switch with "ON" position means Power-On state. In the condition of bluetooth connecting, long time press on the "Play" button, will change to "LINE-IN" State.
2. If under "TF Cardreader" State, long time press the "Play" button, will change to "Bluetooth connecting" State.
3. When music playing, a short press on "+" button back to previous one, a short press on "-"change to next one. Long time press "+" to made the volum up, "-" to made volume down. Press "Play" button to made the "Pause"
4. When the phone call coming, press hands-free button to Answer or Hang Up. Long time press on hands-free sets to refuse the answering.
Status Indication
1. The blue lights flashing rapidly if the bluetooth function unpaired.
2. Slow flashing if the bluetooth pairing successfully, 8: 2 flashing on&off.
3. One time flashing with each 5 seconds when playing music
4. Green led light flashing if under TF cardreader music playing
5. Green led light on all the time if under LINE-IN State
6. Red led light on all the time if in charging state, Red led light off when full charging.
