Passive Outdoor PRO Audio System

Passive Outdoor PRO Audio System
Price: US $ 500-2000piece
Trade Terms: FOB
Min Order: 1piece
Pay Type: T/T,Western Union
Prod Model: LA212
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency Response: 50Hz~16kHz(+-3dB)40Hz~18kHz(-10dB)
Color: Black
Nminal Coverage: 90°(H)7.5°(V) Adjustable
Sensitivity(1W/1m): Hf:113dB Spllf:100dB Spl
Power Rating: Hf/Mf/Lf/:160W/350W/800W
Nominal Impedance: Hf/Mf/Lf/:16/16/12ohm
Maximum Spl: Hf:135/141dB Mf:130dB/136 Lf:129/135dB
Drivers: Lf 2 X 12" ; Mf 1 X 10"; Lf 2 X 3"
Dimensions: 367*1000*550mm
Net Weight: 65kg
Certification: RoHS
Speaker System: Dual 12" Three-Way Line Array System
Speaker Material: 18mm, 24mm Birch Plywood
Application: Tour, Outdoor Show, Stadium, Gymnasium, Theatre

Product Description

passive outdoor pro audio system

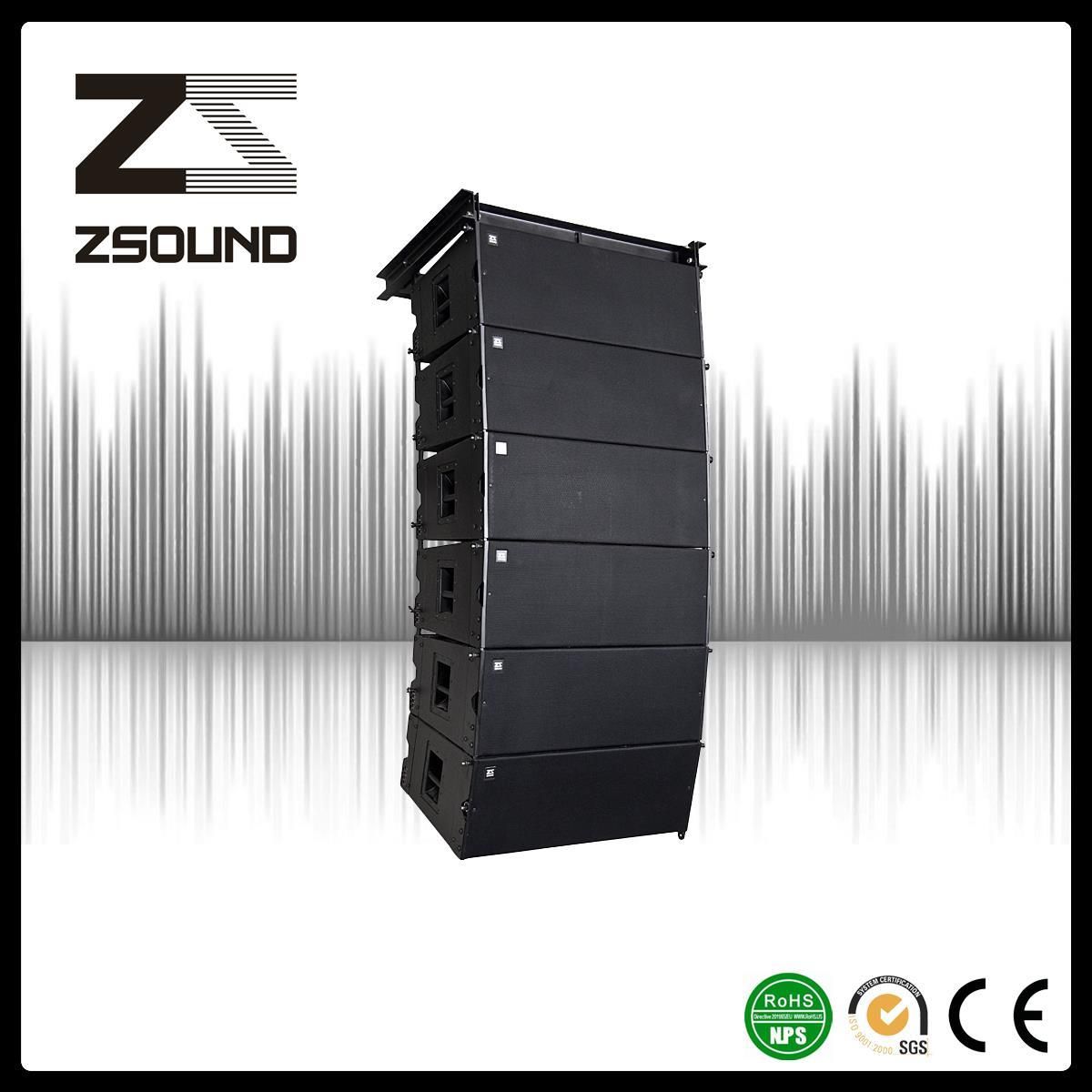

LA212 line array is a large-scale 3-way, tri-amped system, which provides frequency ranges from 50Hz to 16KHz. The system consists of 2X75 mm(voice coil) neodymium compression drivers, one 10″ neodymium MF driver and 2X12″ neodymium LF drivers to achieve an impressive headroom.

The Mid and Low frequency adopts a couple of 12″cone LF driver. Each unit's power handling is 400W and two units connect in series. One 10″ MF driver with high sensitivity is mounted at the rear of the HF driver to make up a coaxial configuration. A MF phase plug is mounted on the surface of the MF driver, which has excellently improved the directivity and increased sensitivity. The HF section utilizes 2x75mm(voice coil) neodymium complex film drivers coupled with a 90 °exponential constant horn via plane-wave transducer to make an coherent wave front. The HF section with 113 dB sensitivity can make the loudspeaker generate 140 dB peak SPL output.

LA212 is a trapezoidal speaker with the seamless gap between each cabinet.
The adjustable angle of the cabinet is 0-7.5°, 1° per step, the rigging hardwares are made of high strength steel. It is safe enough to hang 16 enclosures together, as the safety factor will reach up to 7:1.

The enclosure is constructed by multi-plywood, with panel in size 18mm, and other parts in size 15mm. It is finished with gray textured water paint. Two recessed handle cups are mounted on both sides of the enclosure for easy lifting and carrying. The rear panel connector plate carries 2 Neutrik Speakon NL8MP connectors for loop in and loop out connections. Besides, the enclosure is well protected by the gray mesh grill with acoustically reticulated foam.



Applications:

Touring performance

Stadium

Theatre



Feature:

Large-scale,thri-amp,three-way line array system

MF&HF parts is coaxial structure to optimise acoustic image

Neodymium high-sensitivity driver, maximum headroom



LA212 system advantage

1) All of speaker driver is used import and neodymuim drivers which is deal with and tested by 200 degree high temperature treatment.

2) The plywood, All the plywood was import from Russia. Just go ahead used in outdoor.

3) Our hander cup is the same as LA, D&B. All of our spare parts are used penn elco

4) the pin, our pin was use stainless steel , and must be pass 7:1 safe factor weight test. As you are a professiona people, you must know how important about the pin. If te pin is not good. It is danger when you rigging the line array speaker in the air."

5) Our designthe length about our speaker is 1000mm and 65KG. This is few factory can do that small size with maximum heatroom, We also use mort than ten years to choosie the best speaker drive for our line array speaker system. And our MF&HF parts is coaxial structure to optimise acoustic image. We can repair it when the speaker was in problem.

6)  LA212 is recommanded to match LA215S (double 15" flying sub), S118H, S218H(,SS2 single and double 18" horn loaded subs) powerful subwoofers.

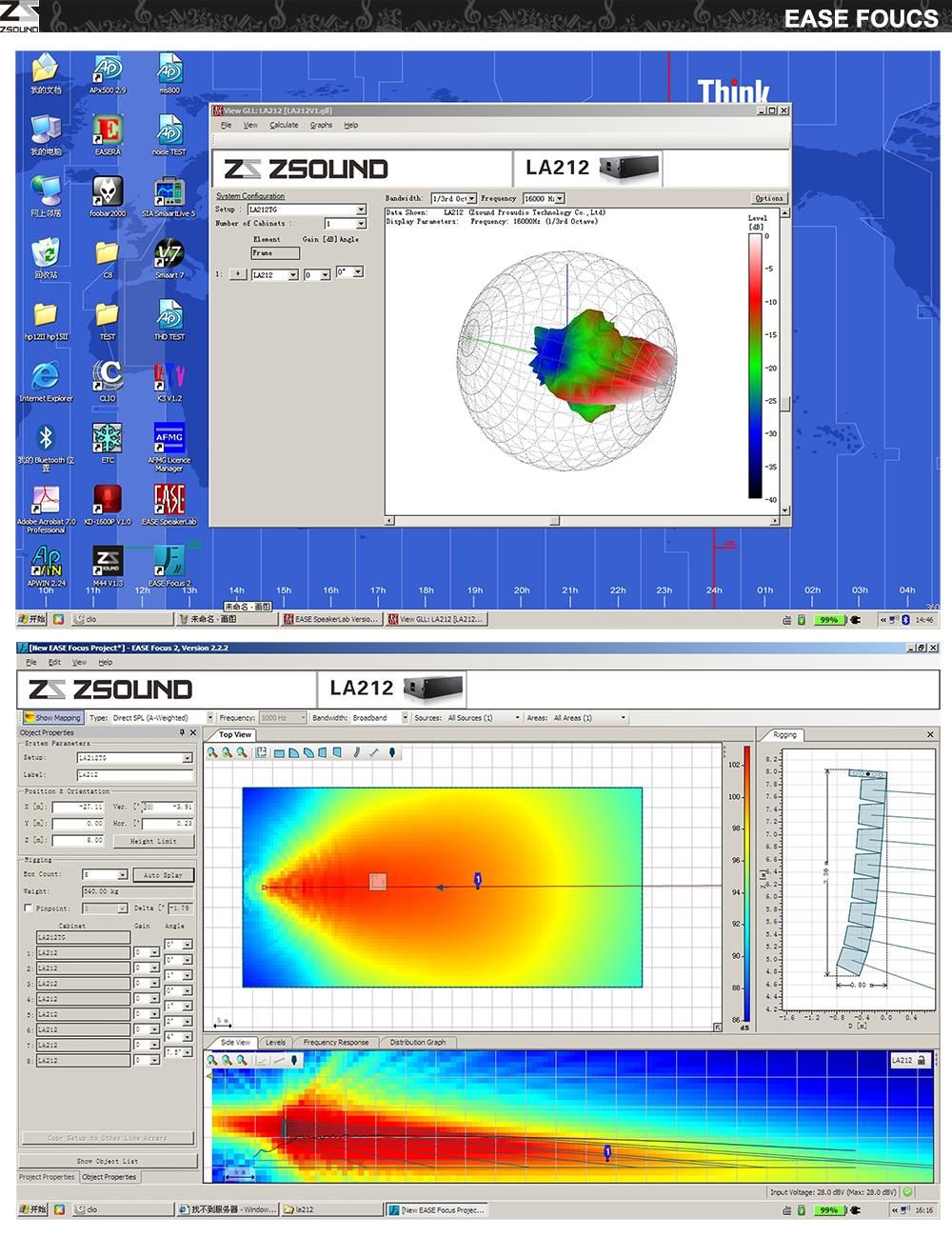

7) All the technoloy data is real. We use SMAART7, 3D directionality test, and CLIO electroacoustic measuring system, audio precision test,And all the data is open. We also have our own EASEFOCUS data and GLL picture



FAQ:
Q1: How long is the warranty for the speakers?
A1: 1year warranty.

Q2: How about the delivery time?
A2: 3-7days for stock.
      10-20 days for new order depend on order quantity since receipt of 30% T/T deposit payment.

Q3: What kind of payments does ZSOUND support?
A3: T/T, Western Union, Cash are accpeted.

Q4: What's the MOQ?
A4: MOQ is 1pcs

Q5: Can you produce according to customers' design?
A5: Yes we can, we are professional manufacturer,OEM & ODM are welcome .

Q6:Can you tell me your main customers?
A6: That's our customers privacy, we should protect their information.
      At the same time, please rest assured that your information is also safe here.


Our Advantages:
1) Global leading professional Manufacturer of professional speaker and amplifier.
2) Product quality: Superior speaker and amplifier, top technology and quality.
3) Certificate: CE,RoHS,GS,SGS,ISO9001
4) Monthly Production Capacity: 2000pcs
5) Fast delivery: Get your order when you need it.
6) 4000 square meters workshop, with about 200 workers and 20 professional engineers
7) Convenient Transportation: 1 hour to Baiyun Airport
8) 24 hours on line service.



   Mob:  +86 188 0200 7151


Guangzhou Zsound Proaudio Technology Co., Ltd. Specilizes in developing and manufacturing a wide range of superior, advanced technology loudspeakers for the professional touring and installation market. With more than ten-years R & D experience, we've successively achieved numerous patents for Zsound speakers.

Designed and constructed to exacting specifications, every component of Zsound loudspeaker is critically extracted. This meticulous craftsmanship and attention to detail shows how seriously we believe in our ideas. Our pursuit for sonic excellence LED to an outstanding reputation in this industry.

During the long-term persistent efforts, Zsound loudspeakers are extensively used in rental and installation markets for events, multimedia, musicals, concert halls, theatres, broadcast and many other applications from the smallest conference room to the largest stadium.

What's most important, ZSOUND won the specified audio title of the Milan World Expo (China Pavilion) theatrical performances, and provides sound equipment and technical support service for China Pavilion theatrical performance

In March 2013, ZSOUND set up performance alliance, the purpose is "achieve resource sharing under the premise of the law of the market, promote the growth of alliance members". And now there're more than 17 members from ZSOUND performance alliance, users of line array system are up to 1000 throughout the country.

After two-years development, alliance members have successfully made a cooperation with some performance project, such as Kenny'G Tour, Lang Lang Concert, Zero Band Tour and Inner Mongolia Sport etc.

Meanwhile, ZSOUND's desire is to provide the best professional audio system and technology service for user, as well as audio company which becomes worthy of audio industry's respect, the goal is to be the leading international professional audio brand.
