Shenzhen Foxgolden Technology Limited >> P5 Indoor Full Color LED Display

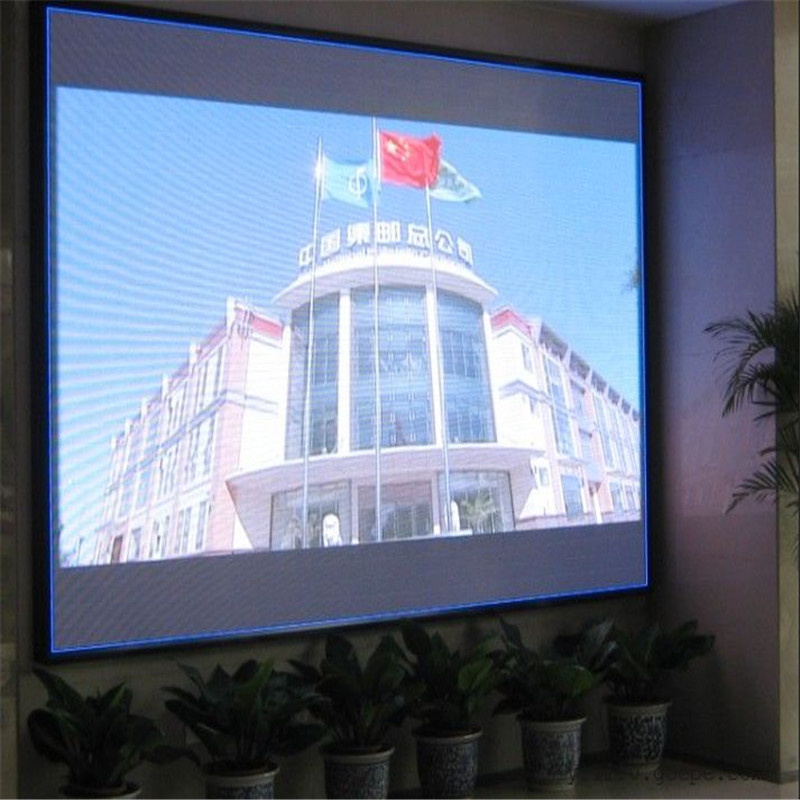

P5 Indoor Full Color LED Display

P5 Indoor Full Color LED Display
Price: US $ 805/Square Meter
Trade Terms: FOB,CFR,CIF
Min Order: 1/Square Meter
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: p5 indoor
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Module: P5
Size: 160*160mm
Pixel: 5mm
Density: 40000dots/M2
40000dots/M2: 3528 Dotmatrix 3 in 1
Total Weight: 45kg
Best Viewing Angle: 2-50m
Tube Chip Color: Full Color
Display Function: Video Display
Pixel Pitch: 5mm
Pixel Configuration: 1R,1G,1B
Pixel Density: 40,000 dots / m²
Scanning Mode: 1/16 Scan
System Operating Platform: WIN XP
Display Type: LED Video Display
Application: Shopping Guide
IP Rating: IP43
Certification: CCC

Product Description




Feature and Advantage
1. Waterproof and dustproof: IP54 front, IP45back
2. Best viewing distance: 2-100m
3. White balance brightness: 1500-2000CD/sqm
4. Horizontal viewing angle: 160degree
5. Working temperatue: -20degree-+80degree
6. MTBF: More than 10, 000hours
7. Life span: More than 100, 000hours
8. Contrast ratio: 4000: 1
9. Average power consumption: 400W

Application and Market
1. Application
Wide applied in stadiums, advertisement, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
2. Market:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe

Our service
1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM&ODM, any your customized lightings we can help you to design and put into product
3. Distributoership are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
5. Top quality+Reasonable price+Responsible After Service=Successful & Win

Trade Terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 40% deposits before production, 60% balance to be paid before delivery
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, Mainland China
5. Warranty time: 7years
6. Delivery time: 3-12working days




Description
Technical parameter
Unit moduleModule size160*160mm
Pixel pitch5mm
Pixel density40000dots/m2
Pixel configuration1R1G1B
Led specification3528 dotmatrix 3 in 1
Pixel resolutionW: 32dots*H: 32dots
CabinetDimension960mm*960mm*110mm
Quantities of module36pcs
Power supply6pcs
Thermal dischargeFan*2pcs
Total weight45kg
Best viewing angle2-50m
TemperatureStorage: -35degree~+85degree
Working: -20degree~+80degree
Thickness11cm can adjustable
Remarks: cabinet size can changed, upon project need.
PowerWorking voltageAC220V/110V± 10%
Average power consumption350W
Max. Power consumption≤ 900W/sqm
Current≤ 20mA(single LED)
Control systemCPUPentium4 or above
Operating systemWIN98/2000/NT/XP
Control methodSynchronization
Main technical parameterDriving device1/16scanning
Drive typeConstant Current driver IC
Refresh frequency≥ 300Hz
Grey scale/colors256 levels of each color(R/G/B)/16.7M color
Brightness of white balanceMore than 2200cd/sqm
Brightness adjustment256 levels of each color(R/G/B)by software
Operating ambient humidity10%--95%
Video signalPAL/NTSC
Control systemDVI display card+full color controller card
MTBF≥ 10, 000hours
Life span≥ 100, 000hours
FlatnessTolerance of interpixel ≤ 0.3mm
Tolerance of modules clearance≤ 0.6mm
Power switchAutomatic switch
Display mode1024*768
Communication distanceUnshielded twisted pair net line transmission distance 100m, max transmission distance 200m.
Multi-mode Optic fiber transmission distance 500m; Single-mode optic fiber transmission distance 10KM
SoftwareLED media player



Shenzhen Foxgolden Technology Limited, is one of the most impressing Hi-tech enterprises in China. Since 2004, we have been dedicating to the aim that making high quality products, and have been well integrated with R&D, production, project, capital and marketing.

As a professional and market-oriented LED display manufacturer, FOXGOLDEN not only keeps improving on normal LED display screen, enhances the product's cost-effective and overall market competitiveness, but also makes breakthrough progresses on special usages. Our products, with high quality and competitive prices, spread worldwide and earn excellent public reputation from both domestic and overseas market.

Foxgolden provides a full series of LED display products involving various single and dual color, text & image display; Indoor single & dual color, full color screen; Outdoor single & dual color, full color display; DOT matrix module display; Traffic applied product; And series of indoor & outdoor module.

Our company has provided our indoor & outdoor displays for various kinds of locations and events throughout the world. With high quality and perfect after-sale services, our professional products and solutions are highly complimented by the users, and we also earned high credibility from them.

With cultivation for high-quality production management team and project team, high quality products and local maintenance service; We achieved zero complaint in product quality for 3 constant years. That's why Foxgolden has received comprehensive attentions from LED industrial experts these years.
