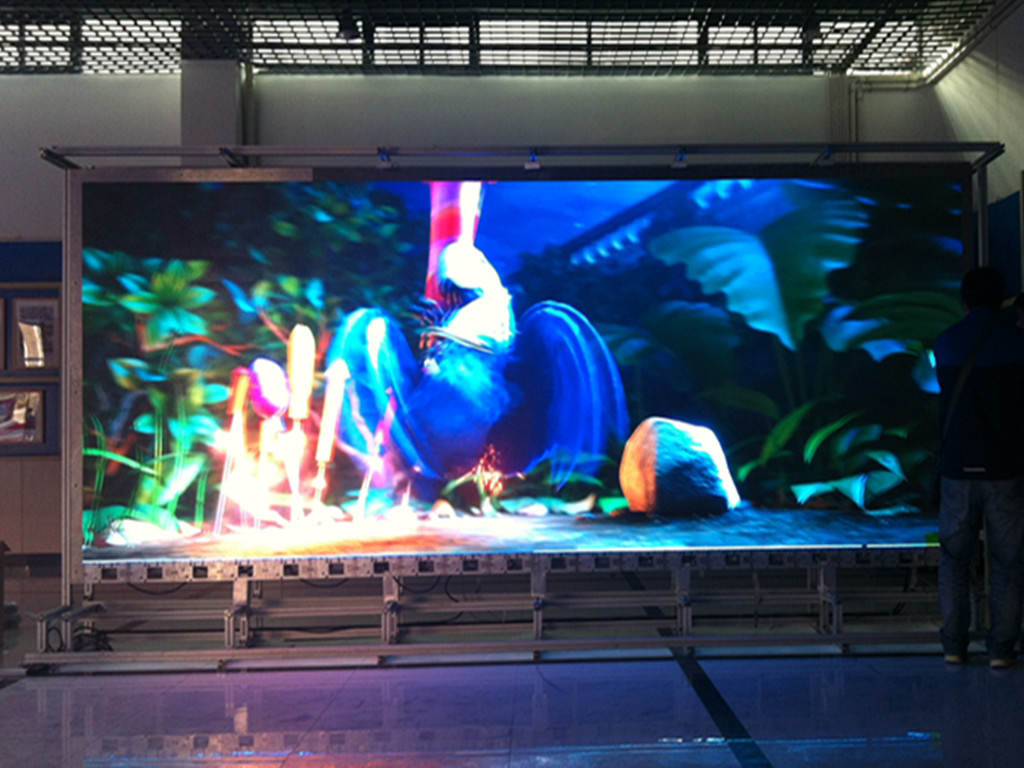

P4 Indoor LED Display for Indoor Advertisement
| Price: |
US $ 1250-1300/Square Meter |
| Trade Terms: |
FOB |
| Min Order: |
1/Square Meter |
| Pay Type: |
T/T |
| Prod Model: |
P4 indoor led display |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Size: |
128 mm X 128 mm |
| LED Lamp: |
SMD2121 Black Lamp |
| Cabinet Size: |
512mm X 512mm |
| Cabinet Resolution: |
128 X 128 Pixel |
| Cabinet Weight: |
8 Kg |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Pitch: |
4mm |
| Pixel Configuration: |
1R,1G,1B |
| Scanning Mode: |
1/16 Scan |
| System Operating Platform: |
WIN XP |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| IP Rating: |
IP43 |
| Certification: |
CCC |
| Pixel Density: |
62500 |
Product Description
P4 indoor full color led display specification ;
| Item | Indoor rental LED display 512 x 512 Series |
| Pixel Pitch(mm) | 4mm |
| Pixel density(pix/m2) | 2020 |
| Module Size(mm) | 128mm x 128mm |
| Cabinet Size(mm) | 512mm x 512mm |
| Brightness | ≥1800cd/sqm |
| Contrasts (Max. /Min.) | 1.1:1 |
| Driving Method | 1/16 |
| View Angle | Horizontal 120° Vertical 120° |
| Optimal Viewing Distance | 3m to 50m |
| Brightness Control | Red, Green and Blue 256 Grade/Each |
| Fresh Frequency | ≥600Hz |
| Frame Frequency | 50 - 60Hz |
| Input Voltage | AC220V/50Hz or AC110V/60Hz |
| Defects Rate | ≤0.00001 |
| Screen Weight | ≤45kg/sqm for Iron cabinet /32kg/sqm for Aluminum cabinet |
| MTBF | >10,000 hours |
| Life Span | ≥100,000 hours |
| Brightness Uniformity | <3% |
| Earth Leakage Current | <3mA |
| Protective Grade | IP45 |
| Temperature-operating | -40ºC~60ºC |
| Humidity-operating | 10%~90% |
| Operating System | Windows98//2000/NT/XP/win7 |
512 mm series FeatureFast and Easy Installation:
Die casting aluminum cabinet, light weight, slim depth, fast locks guarantee the fast and easy installation & dismantle.Slim Depth :Depth of the cabinet is only 60 mm, take small space, which is great convenient for rental and transportation.Light Weight; Weight of each cabinet is only 8.5 kg, only one people can easily install and move it. It saves man power.Professional-grade Connectors :512 MM Series rental cabinets use professional grade connectors for fast installation, safe and stable connection.High Refresh Rate:The refresh rate is more than 1000HZ, it is flicker-free when live broadcast. It fully meets the needs of professional camera shooting.Wide Viewing Angle:Horizontal and vertical viewing angle is 140 degrees, pictures and videos of the display can be viewed by more viewers.No Fan Design:No fan design guarantees silent operation.Fast and Easy to Maintain :The power and signal working status were showed, convenient for you to check out problem at the first time.Quality Guaranteed :The product is designed and produced in strict compliance with international standards, such as CE, ROHS.
Shenzhen Noveled Technology Co., Ltd ( Noveled ) is a subsidiary of Noveled Group Co, Ltd...Noveled is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays. & LED lighting...
With several years of development, NOVELED own its factory workshop area about 2, 000sqm, professional clean room, Siemens high-speed placement machine, automatic plug Universal, computer intelligence environmentally friendly lead large wave soldering, reflow (8 for 8 microcirculation heat treatment technology), Intelligent glue large stroke machine., monthly capacity is 1000sqm We are an ISO 9001: 2000 company, CE certified, export licence holders. We have the honor to work for hundereds of customers in over 400 cities of 33 provinces in China, and we also have built long-term business relationship with the customers all over the world, for example, PCS Sound in Austria, Screen world in Korea, Mega LED in Turkey, Internacionmidia in Brazil and so on.
NOVELED products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.
We adhere to the "customer first, quality first, reputation first, " as operating principle. Our assurance is to provide our customers best products with high quality and most reasonable prices above your level of satisfaction.
