Enbon Optoelectronics Limited >> P12.5mm LED Curtain Display (Grid LED)

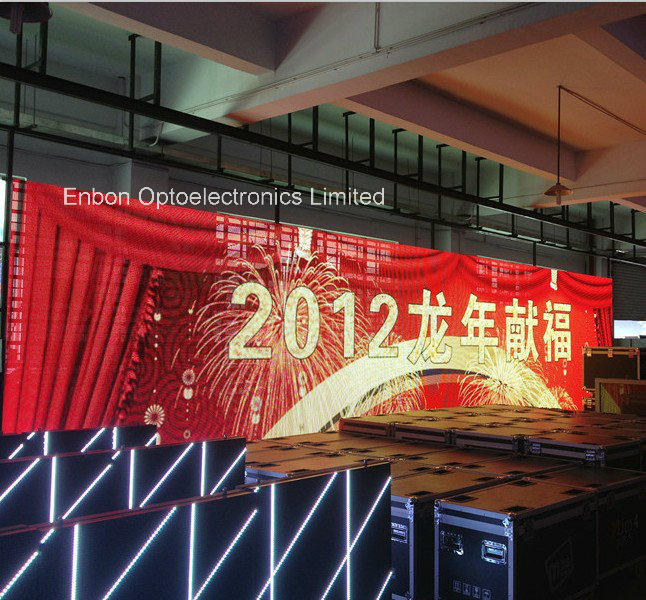

P12.5mm LED Curtain Display (Grid LED)

P12.5mm LED Curtain Display (Grid LED)
Price: US $ 600/Square Meter
Trade Terms: FOB,CIF
Min Order: 1/Square Meter
Pay Type: L/C,T/T
Prod Model: P12.5
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Panel Size: 800*800mm
Refresh Rate: 2000Hz/S
Inputting Voltage: 90-264 VAC
LED Control System: Linsn or Nova-Star
Tube Chip Color: Full Color
Display Function: Video Display
Pixel Configuration: 1R,1G,1B
Scanning Mode: Static Scan
System Operating Platform: WIN XP
Display Type: LED Video Display
Application: Shopping Guide
IP Rating: IP54
Certification: CCC
Pixel Pitch: 12.5mm
Pixel Density: 6,400 Pixels/Sqm.

Product Description

P12.5mm LED curtain display  is to create special stage lighting effect. It is ultra-thin and super-light, transparent, low power cost,can be mounted on ceiling or install as a bankdrop of the stage to make an amazing LED stage. It shows some video as well as stage lighting.

 It is popular for indoor applications, at music festivals, theatre, concert, large tradeshow booths, etc.

It allows audio, wind, light and smoke to pass through, presenting dramatic effect. With a transparency factor of 50%.


Other Features:

Highly transparent, better color performance

Simple and easy to operate, install and transport

Lightweight, quick-connect hanging brackets guarantee fast build-up and tear-down

Silent system by fan-less design

Cost-effective, create visual effects at special events on a limited budget

Perfect for entertainment venues, events, exhibitions and architectures with long viewing distances.




 Technical Prameters
PROJECTP12.5 indoor LED curtain display
Pixel pitch12.5mm
Pixel density6400 Pixels/sqm
Module size(W*H)200W(mm)400 H(mm)
Module pixels(W*H)16 Pixels(W)16 Pixels(H)
Pixel configuration1Red 1Green 1Blue
Drive modeconstant current driving 1/4 scan
LED lamp typeSMD3528
Cabinet size(W*H*D)800 W(mm)800 H(mm)
Cabinet resolution64 Pixels(W)64 Pixels(H)
Color scale65,536 degree
View angle(H/V)140/120 degree
Brightness (White balance)≥1000cd/sqm.
Power consumption(one cabinet)Max:250W/sqm.     Average:80W/sqm.
Operating VoltageAC100V±10% or 220V ±10%;   50---60HZ
Net weight20 Kg/M 2 for Aluminum cabinet
Operating temperature-20°C----+50°C (Customized power supply:-45°C---+60°C)
Operating humidity10%_95%RH
Life time≥100,000hours
MTBF5,000 hours
Whole Display Flatness≤0.3mm Juncture
Frame frequency>60 Hz/s
Refresh rate≥1000Hz /s
Control distance100m (without repeater), single mode fiber:20km, multi mode fiber: 500m
Power 110V/220V±15% 50--60Hz
LED control systemLINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable
Operating systemWindows 2000 / Windows Xp / Windows 7
Protections for outdoor display  IP30
Maintenance wayRear  Access
Accepting signal with video processorPAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI


ENBON optoelectronics Limited is a High-tech enterprise specialized in R&D, manufacturing and sales of outdoor & indoor LED display. It was established in Jan 15, 2010 covering an area of 1 building with around 150 employees. By bringing in and gathering many experts from this industry, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients'. Right now, Enbon wins good reputation for its various ultra-thin and super-light rental outdoor and indoor LED screens, LED strip/mesh curtains, LED dance floor etc.

All our products have passed CE, FCC and RoHS certificates. 70% of our products are for export. We are an LED company you can count on for good quality and competitive pricing. Besides, you can also expect excellent pre-sale, selling and after-sale services here, which contains professional consultation, free training, free drawings, installation and 2 years warranty. We will inspect our products installed in domestic market periodically.

Enbon is equiped with advanced machines such as Automated Pick & Place machine, High Speed SMT, Wave Peak Soldering machine, Reflow Soldering Machine, High & low Temperature Aging room, Vibration tester, Waterproof tester, Anti-static & dust-free workshop etc. Modern automatic equipment together with our innovative engineers, dedicated workers and experienced sales and services team, we're the right supplier you can trust for good solutions for all your LED display projects.

Contact us for an offer today! Our team will respond in 1 working day. We look forward to be your good partner and grow together!
