Prod Model: |
P10 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe |
Product Name: |
P10 Red LED Scrolling Message Display |
Module Size: |
320mm*160mm |
Module Resolutionots: |
(L)32 Dots * (H)16 Dots |
Brightness: |
2500 CD /M2 |
LED Lamp Brand: |
Epistar |
LED Chip Spec: |
DIP546 |
Driving IC: |
Mingwei 595 |
Mean Time Between Failures: |
10, 000 Hours |
Life Span: |
100, 000 Hours |
Screen Size: |
Customized |
Tube Chip Color: |
Single Color |
IP Rating: |
IP65 |
Pixel Pitch: |
10mm |
Display Function: |
Text Display |
Average Power Consumption: |
300W / m² |
Pixel Density: |
10000 dot / m² |
Scanning Mode: |
1/4 Scan |
Application: |
Advertising |
Certification: |
FCC |
Pixel Configuration: |
1r |
Display Type: |
LED Message Display |
Product Description
BRILLIANTOPTO CO., LIMITED
(We are striving for No. 1 Cost-Effective)
1. Product Description

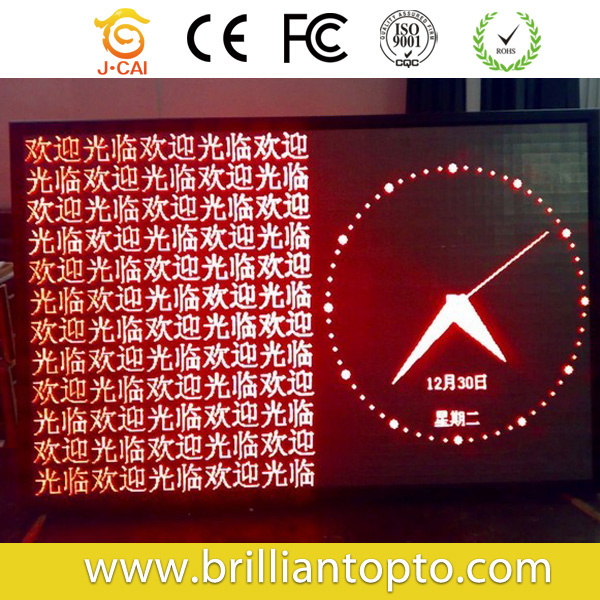

Outdoor P10 Single Color LED Scrolling Message Display
2. Packaging & Shipping
Packaging: Paper cartons, wooden boxes or flight cases or according to your request to ensure safety during transportation.
Shipping: 1-10 days after receiving your deposit.
3. Company Information
Founded in 2005, with registered capital 20.18 million RMB, workshop covering area 20, 000m2 and independent living and production places. Quanzhou New Branched Factory founded in 2013, Total area 20, 000 m2, which highly improve our production capability. Products can PASS CE, FCC, RoHS, ISO9001, UL international certificates.
4. Our Features and After-sale Services
1) Good price
Our price is 10% lower than the market because of the introduction of full Automatic production line with the characteristics of reducing the cost of Labor and management.
2) Lightweight
Aluminum cabinet greatly saving freight cost and conveniently installing.
3) Stable performance
Our most basic guarantee: The aging time exceeding 24 hours. Malfunction DOT rate less than 0.0001. MTBF more than 10, 000 hours.
4) Best quality LED chip tube
The SILAN, OPTO, EPISTAR assuring high brightness and long life-span.
5) Quality insured by CPIC and 2-year of quality guarantee.
6) Free to support and train your operator.
Thank you for your time. Pls contact me today to know more.
Oversea Market Dept.: Vicky Huang
Mobile: 86-180 6527 9931
Outdoor P10 Single Color LED Scrolling Message Display |
Items | Specifications |
Pixel Pitch | 10mm |
Module Size | 320mmx160mm |
Pixel Density | 10000 dots/sqm |
Pixel Configuration | 1R |
Module Resolution | 32x16 |
Brightness | ≥ 2500cd/sqm |
Horizontal Viewing Angle | 90° |
Vertical Viewing Angle | 45° |
Max. Power Consumption | Below 750W |
Gray Scale | ≥ 4096 |
Driving Mode | 1/4, constant voltage |
Frame Frequency | ≥ 60Hz |
Refresh Frequency | ≥ 320Hz |
Operating Environment | -10 °C ~60 °C |
Working Voltage | 220V±10% |
MTBF | ≥ 10,000 hours |
Lifespan | ≥ 100,000 hours |
Brilliantopto Co., Limited Was founded in 2005, with a registered capital of 20.18 million Yuan, a workshop covering an area of 20000 square meters and independent living and production places. Our company is professional in the development and manufacture of LED display systems. Our company technology strength is among the front row in this area, with a vigorous team.
In March, 2011, our company independently researched and developed a full-color formal P16 LED display, which can completely replace the current market single color LED displays, being the perfect choice in the next line of LED display market. In June, 2011, after designing P10 optical modules, we ceremoniously rolled out P10 light module series, which can effectively enhance the efficacy by above 10% and can effectively avoid a screen phenomenon. In August, 2011, our company took the lead in Quanzhou LED industry technology innovation strategy alliance. As the President unit, our company set up "Quanzhou LED Technology Research Center", featuring the national quality supervision center. Our company has many experts and professors from Xiamen University Semiconductor Research Center, Fuzhou University and Beijing University Institute of Photoelectricity for our research center technology consultation to comprehensively promote Quanzhou LED industry. In November, 2011, relying on our strong technical research and development team, we made a new generation of international leading 3D display screens.
Through six years of unremitting efforts, our company has successively obtained such honorary titles as The State Ministry Of Small-Sized And Medium-Sized Enterprise Technology Innovation Fund Project Unit, Small-Sized And Medium-Sized Enterprise In Fujian Province Technology Innovation Fund Project Unit, ISO9001 International Quality Management System Authentication Enterprise, CCC China National Mandatory Product Certification Enterprise, CE Compulsory Product Certification Enterprise, FCC Anti-Radiation Product Authentication Enterprise, RoHS Lead-Free Environmental Protection Product Authentication Enterprise, IP65 Waterproof and Dustproof Product Authentication Enterprise, Chinese Optical Optoelectronic Industry Member Unit, National Taxpayer Service Work Outstanding Member Unit, Unit With 15 Independent Research And Development Patents Of The State Intellectual Property Office, Fujian Quality And Right Protection Service (Member) Unit, Fujian Integrity And Labor Advocate Unit, Quanzhou Industry And Commerce Credit Good Enterprise, Quanzhou Creditable Unit, Quanzhou LED Technology Research Center and Quanzhou LED Industry Technology Innovation Strategy Alliance Chairman Unit.
Our company always implements our development target and insists on the tenet of "customers are the growing power source". Our company has a perfect after-sales service system, truly realizing that customers are the centers of the market marketing model.
Through our efforts, our products have been sold well in Europe, North America, Australia, the Middle East and Southeast Asia. Our company has set up stable sales agents in the corresponding areas. Our company sincerely hope to cooperate with LED display system talents and dealers for common development and for the development of LED display systems.
