Prod Model: |
RuDot |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Gray Scale: |
12bits |
Display Type: |
Segment LED Display |
Tube Chip Color: |
Full Color |
IP Rating: |
IP67 |
Pixel Configuration: |
1R, 1G, 1B |
Pixel Pitch: |
16mm |
Display Function: |
Video Display |
Scanning Mode: |
1/8 Scan |
Certification: |
CE |
Product Description
RuDOT Overview

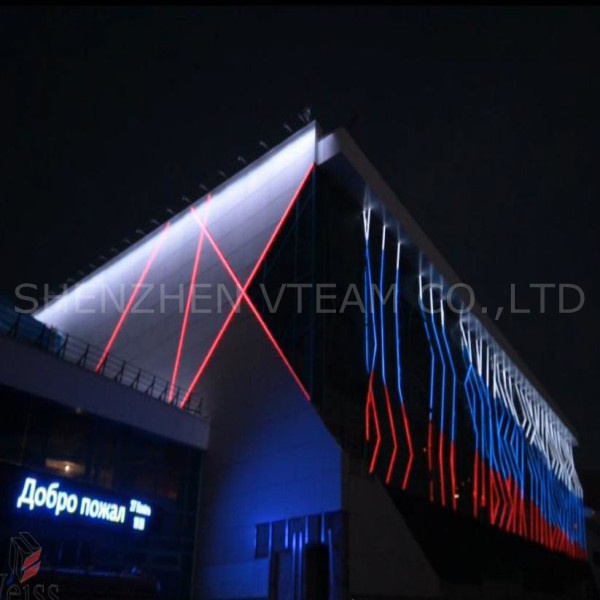

Rudot is a kind of full color LED display system, with the features of flexible installation, super-light and easy for maintain. Rudot could support different kind of installation such as: Folded, wind, curved and overhanging, it's can be installed in kinds of creative shape according to the clients' practical request. It's widely applied in stage lighting, ceiling, architectures, outdoor and indoor projects.
Features:
Perfectly flexible to match with kinds of creative and practical requests.
The max string strip would attach with 500 pixels without any repeaters, perfectly suit for large scale outdoor architectural brighten project.
IP67, suit for permanently outdoor or indoor application.
Operating environment: -40° C~+50° C.
Optional customize pixel pitch.
Optional customize length of the pixel strip.
ITEM |
RuDOT-S |
RuDOT-D |
Pixel composition |
RGB 3in1,SMD |
1R1G1B, DIP |
Brightness |
3 cd/pixel |
6 cd/pixel |
Max Power consumption |
0.3 W/pixel |
Pixel dimension |
32mm x 30mm x 22mm |
Optional pixel pitches |
≥45mm |
Viewing angle |
H120° V120° |
Refresh Rate |
≥1000 Hz |
Gray scale |
12 bits |
Lifetime |
> 50,000 hours |
Control system |
Can be Synchronous control and asynchronous control |
Input Power |
Control box:AC 220V±10%, 50/60Hz
LED pixels:DC 15~24V |
Protection rate |
LED pixels:IP67
Control box:IP65 |
Operating environment |
LED pixels:temperature -40°C~+50°C, humidity 10-90%RH
Control box:temperature -20°C~+50°C |
Weight |
<29g/pixel |
Rudot
|
below 20°C |
below 40°C |
Price/pixel |
USD2.5 |
USD2.8 |
