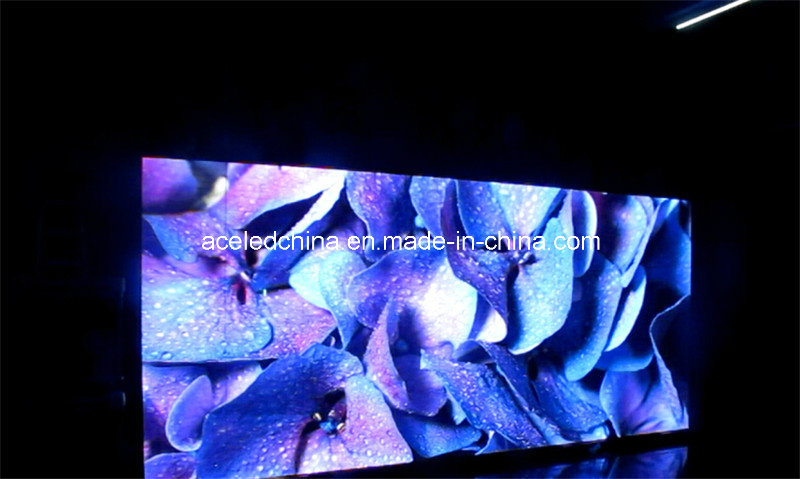

Outdoor High Resolutions LED Display

Outdoor High Resolutions LED Display
Price: US $ 850-1200/Square Meter
Min Order: 1/Square Meter
Pay Type: L/C,T/T
Prod Model: P6
Market: High-End
Factory: OEM, ODM
Cabinet Material: Die-Casting Cabinets
Warranty: 2 Years
Tube Chip Color: Full Color
IP Rating: IP65
Pixel Configuration: 1R, 1G, 1B
Display Function: Video Display
Average Power Consumption: 300W / m²
Scanning Mode: 1/8 Scan
Display Type: LED Video Display
Certification: CCC
Pixel Pitch: 6mm
Pixel Density: 27777
Application: All, Concerts, Shows and Event, Airport

Product Description

Attractive Features of P6 high definition LED video wall

1. High refresh rate.
2. High definition.
3. High brightness.
4. Excellent image quality.
5. With CE,RoHS,FCC, ISO9001, SGS

Contact Us Now to know more: mobile: +86 13538127671

LED module parameter---Full color LED display screen
No.SpecificationsLED Display
1.ModelP6 full color indoor led screen display
2.LED chipSilan
3.Physical Pixel Pitch6mm
4.Physical Pixel Density27777dots/m2
5.Pixel compositionSMD3528
6.Moduel Size192mm*192mm
7.Moduel resolution32*32dots
8.Cabinet thickness< 170 mm
9.Bracket of cabinetEasy to install onto the LED cabinet and unistall .
10.Brightness≥ 2000cd/ m2
11.Colors16.7million
12.Viewing angleHorizontal ≥120°, Vertical : ≥ 120°
13.Viewing distance5m -100m
14.Scan frequency≥600 Hz There will be one receive card in each cabinet ,so that the LED display wont sparked .Also it is very easy to move and connetct
15.Video Frame Rate≥150 fps
16.
Control method

Controlled by PC, synchronous display
17.Life span( half brightness)≥100,000 hours
18.Weight30Kg /sqm for aluminum cabinet
19.Average power consumption300W/sqm
20.Peak power consumption1000W/sqm
21.Input voltageAC220V/50Hz ±10% or AC110V/60Hz ±10% or AC380V/60Hz ±10%
22.Operating EnvironmentTemperature:-20+60 Humidity:10%95%RH
23.Operating systemWindows 98/2000/ME/XP
24.Type of video signalS-video, composite video ,RGB ,VGA ,DVI


Why Chengxinguang(CXG) LED Display

1. Competitive Price
We are middle-sized Chinese local factory, maybe you can see that from our so Chinese name of "Chengxinguang", unlike the internationalized name of foreign trade company. Besides, we control our cost very well and don't have huge management cost like top companies, so that we can give the real benefits to our customers.

2. Close Relationships with Raw Material Providers
For our bosses have been in the key positions at the top led display factory since 2004, we have very close and strategic relationship with the raw material providers, which support the stable quality of our products.

3. Quality Control
From raw materials to finished product, from design to produce, we control all steps, which are the guarantee of the quality and reliability.

Chengxinguang Technology Co., Ltd (Brand: ACE LED) is located in Shenzhen, China, a major production base of global LED display screen industry. Chengxinguang is a professional LED display screen manufacturer. It provides professional and customized solutions on full color LED display screen, rental LED display, outdoor electronic LED signs, indoor LED displays, LED curtain display, moving message boards, variable message sign and video boards etc.

Chengxinguang is committed to our customers and partners by providing fast and genuine service, quality and value. Now we have established business relationship with customers in Asia, America and European countries etc, and we will continue to devote ourselves to providing customers with excellent performance products, efficient and effective services around the world.

Chengxinguang uses international high-end automated production equipment and has professional management, R&D, production, quality and service teams. Besides, we also have very strong and strategic relationship with the raw material providers. All of these factors have ensured the stability and quality in our LED products, and our competitive price.

Contact us today and learn why so many customers world-wide choose Chengxinguang as their partner for LED displays.
