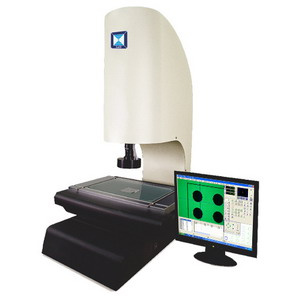

Optical Measurement Device for Mobile Phone Front Touch Screen Glass

Optical Measurement Device for Mobile Phone Front Touch Screen Glass
Price: US $ 12000-13000/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1/Piece
Pay Type: T/T,Western Union
Prod Model: CV-300
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model: CV-300
Stage Size (Mm): 500 X 300
Glass Size (Mm): 350 X 280
X Axis Travel: 270mm
Y Axis Travel: 170mm
Z Axis Travel: 150mm
Driving System: Servo Motor Control
Speed: 200 Mm/S
Software: Quick Image Measuring Software Qim-5008 & USB
CCD Camera: Japansentech Color
Magnification: 100-500X
Number Of Cylinder: No
Mobility: Desktop
Stereoscopic Effect: Stereoscopic Effect
Kind Of Light Source: Ordinary Light
Shape: Cylindrical Shaped Lens
Principle: Optics
Principle Of Optics: Polarizing Microscope
Type: 2D Element

Product Description

Optical Measurement device for Mobile Phone front Touch Screen Glass CV-300 is high precision measurement solutions for large parts. Complete with Metrology Software, Programmable Zoom lens, Servo motion control, the Vision machine measure parts up to 2 meters.

Optical Measurement device for Mobile Phone front Touch Screen Glass CV-300 is the ideal model for larger LCD, LED, PCB, Film and Large glass products inspection. Working with professional CNC Metrology software and Auto-lens satisfies various sizes measurements.

Optical Measurement device for Mobile Phone front Touch Screen Glass CV-300 is also widely used with multiples of smaller parts nested in a fixture.
Feature for this non-contact VMS:

Step servo, high positioning accuracy and smooth movement
Advanced Navitar 0.7-0.45x zoom lens
Japan SENTECH Color 1/2" CCD Camera
Joystick and mouse operation, easy to use
Granite base
Programmable LED cold lights
Automatic software
Fast Auto Focus
ModelCV-250CV-300CV-400
Stage Size (mm)450 x280500 x 300606 x 466
Glass Size (mm)306*196350 x 280450 x 350
Travel (mm)X axis220270370
Y axis120170270
Z axis150 (for focus)150 (for focus)150 (for focus)
Driving SystemServo Motor Control
Speed200 mm/s
Resolution of X/Y/Z-axis0.0005 mm(0.5μ m)
Positioning Accuracy0.001 mm(1 μ m)
Accuracy≤ 3.0 + L/75 (μ m)
SoftwareQuick Image Measuring software QIM-5008 & USB
Video System? CCD Camera: JapanSENTECH Color 1/2" CCD Camera
? Lightening System: Cold-light source Surface and Transmission illumination
? Zoom Lens: U. S. A Navitar Zoom Lens
? Magnification of field lens: 0.7X-4.5X
? Total Magnifications: 30X-190X
? Object View: 10.6mm-1.6mm
Weight (KG)145170270
Power SupplyAC220V/110V      50/60 Hz
