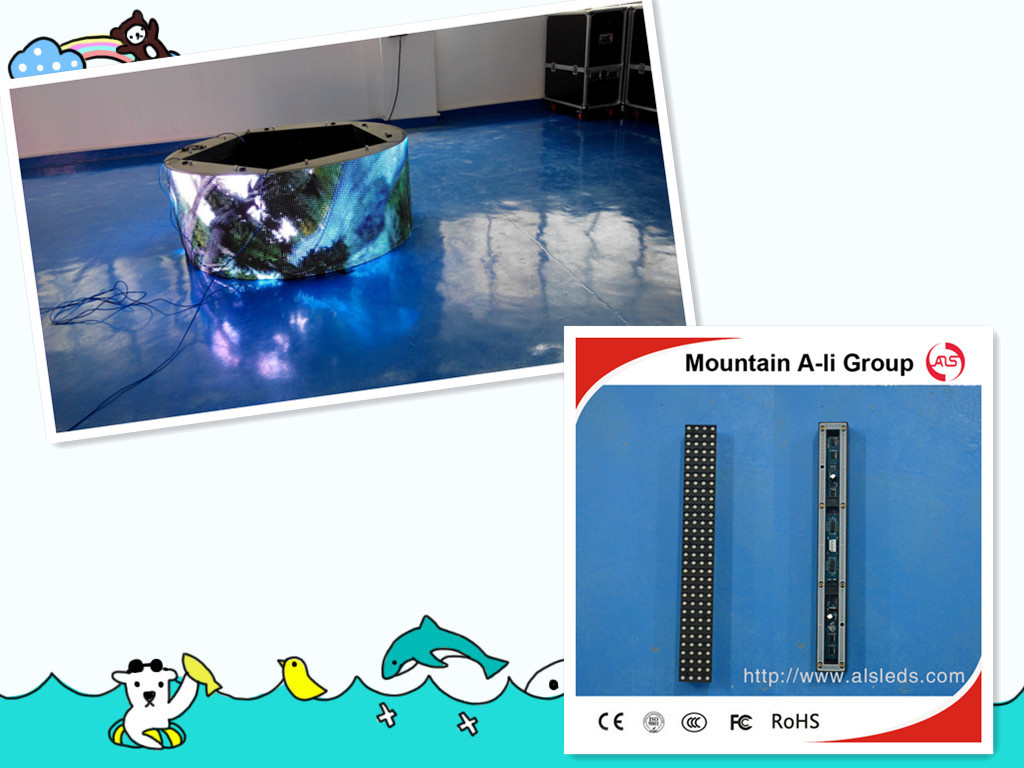

New Design Outdoor Use P10 Cylindrical LED Display

New Design Outdoor Use P10 Cylindrical LED Display
Price: US $ 850-1000/Square Meter
Min Order: 1/Square Meter
Pay Type: L/C,T/T,Western Union
Prod Model: p10/dip 3in1
Model No: P10 Outdoor LED Screen
Pixel Configuration: DIP 3in1
Brightness: 7500CD/M2
Optimal Viewing Distance: 10m~50m
Control Mode: Synchronization with PC
Module Size: 320mm*40mm
Interface Way: Hub75
Max Power: 13W
Module Thickness: 3.5cm
Module Weight: 0.3kg
Tube Chip Color: Full Color
IP Rating: IP65
Pixel Pitch: 10mm
Display Function: Video Display
Average Power Consumption: 350W / m²
Pixel Density: 10000 dot / m²
Scanning Mode: 1/4 Scan
Display Type: LED Video Display
Application: Advertising
Certification: FCC,EMC,Ios9001
Pixel Configuration: RGB 3in1

Product Description

Main Features:

1. Seamless splicing
2. Meet requirements of cylindricle LED display
3. Hight Brightness
4. Diameter is meet different requirements, the ball is controlled through numerical,
5. It can moving, hang install, seat install, steel structure design
6. Meet synchro full color video or out-sync full color video display
7. Have designed a good heat dissipation, keep globose the LED display working.


The Technical Parameters of  Outdoor led Video screen


Item
Parameter
Product model P10 full color module
Module size320mm*40mm
 Pixel pitch 10mm
 Pixel density  10000dots/m2
Pixel configuration1R1G1B 3 in 1
 Module resolution4dots(W)*32dots(H)
Maximum power consumption13W
 Module thickness3.5cm
Module weight0.3kg
Driving methodConstant current driving
Scan mode1/4 scan
Interface typeHUB75
Brightness  ≥7500cd/m2
The specifications of cabinet
The specifications of power supply
Operating voltageAC220V±10%
 Average power consumption350W/H
 Maximum power consumption≤600W/
Current ≤20mA(single LED)
The specifications of control system
ComputerPentium4 or above
Operating system WIN98/2000/NT/XP
Control modelSynchronization control
The specifications of the main technical parameters
 Driving deviceConstant current driving
 Refresh rate≥600Hz
 Grey scaleRGB each 256 grade, can display 16.7M colors)
MTBF≥9000hours
Power switchAutomatic switch
Display mode800*600/1024*768/1280*900


After-sale service

1) Warranty:
Free to solve quality problems to ensure normal operation of led display in the warranty period . If the problem is from the product itself, we bear all the responsibility at any time.

2) Free maintenance:
If led display can't work,our company repair the broken parts and only charge cost of necessary raw materials in the warranty period.We provide spare parts and maintenance  for the lowest price after the warranty period.

3)Quick response:
Respond within 2 hours,non-artificial and general fault be solved within 48 hours.

4) Free support:
Provide service support in real time by telephone or internet. With the help of network, we give clients remote debugging support (software) to solve the problem.














HongKong Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.

Features:

1) With good lightening accordance and no mosaic

2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment

3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced

4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment

5) Uses real pixels rather than virtual pixels, better viewing effect

Applications:

LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
