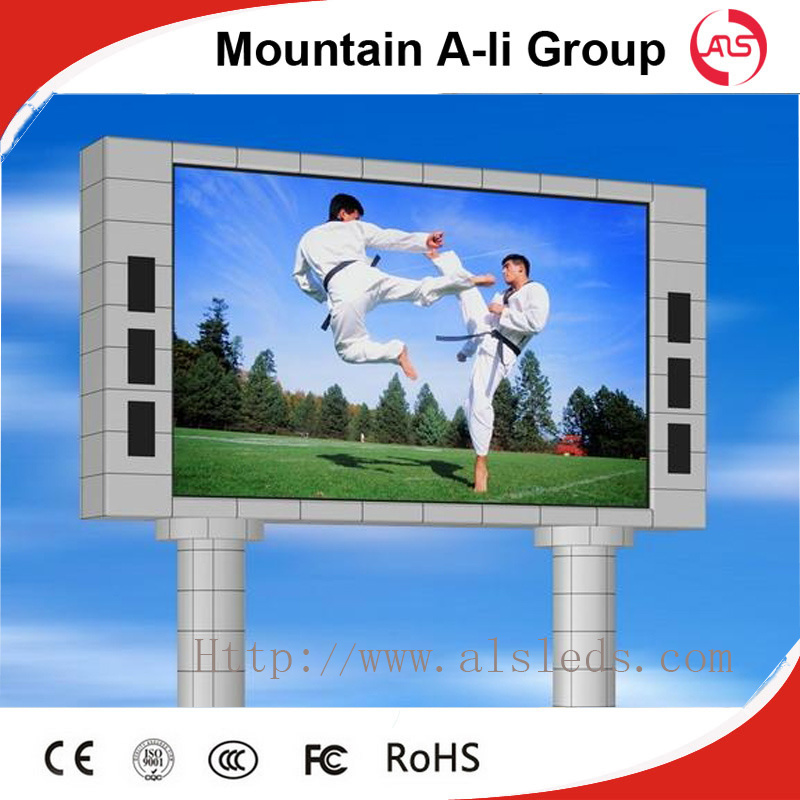

Mountail a-Li Outdoor Full Color P16 LED Display

Mountail a-Li Outdoor Full Color P16 LED Display
Price: US $ 500-600/Square Meter
Trade Terms: FOB
Min Order: 1/Square Meter
Pay Type: T/T,Western Union,Paypal
Prod Model: P16 Outdoor LED Display
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Module Size: 10mm*160mm
Cabiet Size: 960mm*960mm
Tube Chip Color: Full Color
IP Rating: IP65
Pixel Pitch: 16mm
Pixel Configuration: 1R, 1G, 1B
Display Function: Video Display
Average Power Consumption: 350W / m²
Scanning Mode: Static Scan
Display Type: LED Video Display
Application: Advertising
Certification: FCC,ISO9001
Pixel Density: 3096dots/M2

Product Description

The specifications of modules

ItemsParameter
Product Model p16 full color module
Module size256mm*256mm
 Pixel pitch p16 mm
 Pixel density  3906dots/m2
Pixel configuration RGB
 Module resolution16dots(W)*16dots(H)
Module maximum power consumption35W
 Module Thickness33CM
Module Weight1kg
Driving methodConstant Current Driving
Scanning methodStatic Scaning
InterfaceHUB40
Brightness  ≥7500cd/m2
The specifications of cabinets

Cabinet size1024mm*1024mm
 Module quantity16
 Power supply5V/40A  5V/60A
Cabinet resolution  64*64dots
 Optimal viewing distance10M~50M
Optimal viewing angle160°(W) 120°(H)
 RHWorking temperatureWork :-20ºC~+50ºC
  System operating humility10%-95%
The specifications of power supplier

Operating VoltageAC220V±10%
 Average power consumption350W/H
 Maximum power consumption≤800W/
 Electric current ≤20mA(single LED)
The specifications of control card
Control Panels Pentium4 or above
Operating system WIN98/2000/NT/XP
Control modelSynchronization control
The specifications of the main technical parameters

 Driving deviceIC Constant Current Driving
 Refresh rate≥600HZ
 Grey scaleRGB Each 256, can display 16.7M colors)
MTBF≥9000hours
Power switchAutomatic Switch
Display Mode800*600/1024*768/1280*900











Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.

Features:

1) With good lightening accordance and no mosaic

2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment

3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced

4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment

5) Uses real pixels rather than virtual pixels, better viewing effect

Applications:

LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
